Chen Pan, Shujing Chen, Qianlong Wang, Muhammad Tayyab, Lei Wang, Xian-Zhu Fu, Jing-Li Luo. Recent advances in current collectors for Li-ion batteries: materials, structures and interfacial properties[J]. Energy Lab. doi: 10.54227/elab.20240018
|
Recent advances in current collectors for Li-ion batteries: materials, structures and interfacial properties
-
Abstract
Due to the high efficiency and high energy density, Li-ion batteries are widely used in the field of portable electronic consumer devices, and play an important role in the development of electric vehicles and the storage and conversion of renewable energy. Current collectors are an indispensable component because of their key role in determining the electrochemical properties of Li-ion batteries, such as the energy density, power density and cycling stability. In this paper, the recent advances in the field of current collectors of Li-ion batteries are summarized. Firstly, the merits and flaws of two kinds of current collectors, i.e., metallic and carbonaceous ones are analyzed. Next, the recent progress in design, preparation, and utilization of three-dimensionally structured current collectors, the strategies to decrease the interfacial resistance, and the methods of improving the interfacial adhesion between the current collector and the electrode layer are reviewed. Finally, conclusions and perspectives for future research are discussed.
-
Keywords:
- Li-ion batteries /
- current collector /
- materials /
- structures /
- interfacial properties
-
-
Author Biographies
Chen Pan received his bachelor degree in Materials Science and Engineering from Chang’an University in 2013 and Ph.D. degree in Materials Science from Northwestern Polytechnical University in 2019. In the same year, he entered Shenzhen University for postdoctoral research. His research interests focus on current collector and thermal management of lithium-ion battery.
Xian-Zhu Fu is currently a professor in the college of Materials Science and Engineering, Shenzhen University. He received his Ph.D. degree in Chemistry from Xiamen University in 2007. Then he joined the Department of Materials and Chemical Engineering at University of Alberta in Canada as a post-doctoral research flow and Lawrence Berkeley National Lab as a visiting scholar. From 2012-2017, he worked at the Shenzhen Institutes of Advanced Technology, Chinese Academy of Sciences. His research interests focus on electrochemistry/electrocatalysts for energy materials and devices, electronic materials, and process.
Jing-Li Luo is a distinguished professor at Shenzhen University, China, emeritus professor at University of Alberta, and fellow of the Canadian Academy of Engineering. She obtained her Ph.D. degree in Materials Science and Engineering from McMaster University, Cannada in 1992. She served as Canadian Research Chair in Alternative Fuel Cells from 2004 to 2015. Her research focuses on fuel cells, energy storage research, clean energy technology, and corrosion control. -
References
1. A. Sadeghi, A. Ghaffarinejad, J. Power Sources, 2024, 600, 234275 2. W. Guan, T. Wang, Y. Liu, H. Du, S. Li, Z. Du, W. Ai, Adv. Energy Mater., 2023, 13, 2302565 3. L. Kong, H. Peng, J. Huang, Q. Zhang, Nano Res., 2017, 10, 4027 4. M. Dubarry, N. Costa, D. Matthews, Nat. Commun., 2023, 14, 3138 5. H. Li, A. Berbille, X. Zhao, Z. Wang, W. Tang, Z. L. Wang, Nat. Energy, 2023, 8, 1137 6. C. Zhang, Y. Guo, S. Tan, Y. Wang, J. Guo, Y. Tian, X. Zhang, B. Liu, S. Xin, J. Zhang, L. Wan, Y. Guo, Sci. Adv., 2024, 10, eadl4842 7. Z. Ouyang, S. Wang, Y. Wang, S. Muqaddas, S. Geng, Z. Yao, X. Zhang, B. Yuan, X. Zhao, Q. Xu, S. Tang, Q. Zhang, J. Li, H. Sun, Adv. Mater., 2024, 36, 2407648 8. Z. Liu, W. Huang, Y. Xiao, J. Zhang, W. Kong, P. Wu, C. Zhao, A. Chen, Q. Zhang, Acta Phys.-Chim. Sin., 2024, 40, 2305040 9. J. Seo, J. Lim, H. Chang, J. Lee, J. Woo, I. Jung, Y. Kim, B. Kim, J. Moon, H. Lee, Small, 2024, 20, 2402988 10. D. Gu, H. Kim, J. Lee, S. Park, J. Energy Chem., 2022, 70, 248 11. Y. Jiang, Y. Yang, F. Ling, G. Lu, F. Huang, X. Tao, S. Wu, X. Cheng, F. Liu, D. Li, H. Yang, Y. Yao, P. Shi, Q. Chen, X. Rui, Y. Yu, Adv. Mater., 2022, 34, 2109439 12. H. Yu, D. Jiang, X. Cheng, P. Lu, S. Li, H. Zhang, Y. Jiang, F. Huang, Adv. Funct. Mater., 2023, 33, 2307628 13. H. Li, H. Zhang, F. Wu, M. Zarrabeitia, D. Geiger, U. Kaiser, A. Varzi, S. Passerini, Adv. Energy Mater., 2022, 12, 2202293 14. Z. Karimi, A. Sadeghi, A. Ghaffarinejad, J. Energy Storage, 2023, 72, 108282 15. W. Zhu, J. Zhang, J. Luo, C. Zeng, H. Su, J. Zhang, R. Liu, E. Hu, Y. Liu, W. Liu, Y. Chen, W. Hu, Y. Xu, Adv. Mater., 2023, 35, 2208974 16. Z. Jing, S. Wang, Q. Fu, V. Baran, A. Tayal, N. P. M. Casati, A. Missyul, L. Simonelli, M. Knapp, F. Li, H. Ehrenberg, S. Indris, C. Shan, W. Hua, Energy Storage Mater., 2023, 59, 102775 17. F. Wang, Z. Zhai, Z. Zhao, Y. Di, X. Chen, Nat. Commun., 2024, 15, 4332 18. J. Chen, W. Fu, S. Zhang, F. Zhang, J. Zhou, Y. Ma, J. Zhao, Batteries Supercaps, 2024, 7, e202400304 19. Z. Wang, C. Wei, H. Jiang, Y. Zhang, K. Tian, Y. Li, X. Zhang, S. Xiong, C. Zhang, J. Feng, Adv. Mater., 2024, 36, 2306015 20. E. Mados, I. Atar, Y. Gratz, M. Israeli, O. Kondrova, V. Fourman, D. Sherman, D. Golodnitsky, A. Sitt, J. Power Sources, 2024, 603, 234397 21. Z. Wang, C. Wei, H. Jiang, Y. Zhang, K. Tian, Y. Li, X. Zhang, S. Xiong, C. Zhang, J. Feng, Adv. Mater., 2024, 36, 2306015 22. Z. Wang, C. Wei, H. Jiang, Y. Zhang, K. Tian, Y. Li, X. Zhang, S. Xiong, C. Zhang, J. Feng, Adv. Mater., 2023, 13, 2370146 23. C. Lv, Z. Tong, S. Zhou, S. Pan, H. Liao, Y. Zhou, J. Li, J. Energy Chem., 2023, 80, 553 24. Y. Ye, R. Xu, W. Huang, H. Ai, W. Zhang, J. O. Affeld, A. Cui, F. Liu, X. Gao, Z. Chen, T. Li, X. Xiao, Z. Zhang, Y. Peng, R. A. Vila, Y. Wu, S. T. Oyakhire, H. Kuwajima, Y. Suzuki, R. Matsumoto, Y. Masuda, T. Yuuki, Y. Nakayama, Y. Cui, Nat. Energy, 2024, 9, 643 25. J. Wang, S. Chou, J. Chen, S. Chew, G. Wang, K. Konstantinov, J. Wu, S. Dou, H. K. Liu, Electrochem. Commun., 2008, 10, 1781 26. E. Foreman, W. Zakri, M. Hossein Sanatimoghaddam, A. Modjtahedi, S. Pathak, A. G. Kashkooli, N. G. Garafolo, S. Farhad, Adv. Sustain. Syst., 2017, 1, 1700061 27. L. Nyholm, G. Nyström, A. Mihranyan, M. Strømme, Adv. Mater., 2011, 23, 3751 28. C. Wang, N. Kurra, M. Alhabeb, J. Chang, H. N. Alshareef, Y. Gogotsi, ACS Omega, 2018, 3, 12489 29. Z. Wang, C. Wei, H. Jiang, Y. Zhang, K. Tian, Y. Li, X. Zhang, S. Xiong, C. Zhang, J. Feng, Adv. Mater., 2024, 36, 2306015 30. P. Zhu, D. Gastol, J. Marshall, R. Sommerville, V. Goodship, E. Kendrick, J. Power Sources, 2021, 485, 229321 31. Lain, Brandon, Kendrick, Batteries (Basel), 2019, 5, 64 32. R. Choudhury, J. Wild, Y. Yang, Joule, 2021, 5, 1301 33. H. Chu, H. Tuan, J. Power Sources, 2017, 346, 40 34. Y. Ye, L. Chou, Y. Liu, H. Wang, H. K. Lee, W. Huang, J. Wan, K. Liu, G. Zhou, Y. Yang, A. Yang, X. Xiao, X. Gao, D. T. Boyle, H. Chen, W. Zhang, S. C. Kim, Y. Cui, Nat. Energy, 2020, 5, 786 35. J. Choi, D. J. Lee, Y. M. Lee, Y. Lee, K. M. Kim, J. Park, K. Y. Cho, Adv. Funct. Mater., 2013, 23, 2108 36. J. H. Yun, G. Han, Y. M. Lee, Y. Lee, K. M. Kim, J. Park, K. Y. Cho, Electrochem. Solid-State Lett., 2011, 14, A116 37. J. Xie, Y. Ji, J. Kang, J. Sheng, D. Mao, X. Fu, R. Sun, C. Wong, Energy Environ. Sci., 2019, 12, 194 38. J. Xie, Y. Ji, D. Mao, F. Zhang, X. Fu, R. Sun, C. Wong, ACS Appl. Nano Mater., 2018, 1, 1531 39. Y. Li, Q. Wang, Y. Wang, M. Bai, J. Shao, H. Ji, H. Feng, J. Zhang, X. Ma, W. Zhao, Dalton Trans., 2019, 48, 7659 40. Y. Liao, Z. Kao, ACS Appl. Mater. Interfaces, 2012, 4, 5109 41. C. Pan, S. Chen, Y. Huang, L. Wang, J. Luo, X. Fu, J. Power Sources, 2022, 528, 231207 42. X. Wu, S. Chen, D. Liu, C. Ye, F. Si, Y. Zhang, Y. Yang, J. Luo, X. Fu, J. Energy Storage, 2023, 74, 109208 43. J. H. Yu, Y. Rho, H. Kang, H. S. Jung, K. Kang, Int. J. Precis. Eng. Manuf.-Green Technol., 2015, 2, 333 44. Y. Jang, J. Jo, Y. Choi, S. Kwon, K. Kim, Energy, 2015, 93, 1303 45. L. Hu, J. W. Choi, Y. Yang, S. Jeong, F. La Mantia, L. Cui, Y. Cui, Proc. Natl. Acad. Sci.-PNAS, 2009, 106, 21490 46. S. Poetz, B. Fuchsbichler, M. Schmuck, S. Koller, J. Appl. Electrochem., 2014, 44, 989 47. Z. Liu, Y. Dong, X. Qi, R. Wang, Z. Zhu, C. Yan, X. Jiao, S. Li, L. Qie, J. Li, Y. Huang, Energy Environ. Sci., 2022, 15, 5313 48. J. Hu, Y. Li, S. Liao, X. Huang, Y. Chen, X. Peng, Y. Yang, Y. Min, ACS Appl. Energ. Mater., 2021, 4, 9721 49. L. Guo, D. B. Thornton, M. A. Koronfel, I. E. L. Stephens, M. P. Ryan, J. Phys.: Energy, 2021, 3, 32015 50. E. Yoon, J. Lee, S. Byun, D. Kim, T. Yoon, Adv. Funct. Mater., 2022, 32, 2200026 51. S. Yang, J. Zhong, S. Li, B. Li, J. Energy Chem., 2024, 89, 610 52. B. Liu, T. Lv, A. Zhou, X. Zhu, Z. Lin, T. Lin, L. Suo, Nat. Commun., 2024, 15, 2922 53. H. Du, Y. Wang, Y. Kang, Y. Zhao, Y. Tian, X. Wang, Y. Tan, Z. Liang, J. Wozny, T. Li, D. Ren, L. Wang, X. He, P. Xiao, E. Mao, N. Tavajohi, F. Kang, B. Li, Adv. Mater., 2024, 36, 2401482 54. S. Yang, S. Li, Z. Du, J. Du, C. Han, B. Li, Adv. Mater. Interfaces, 2022, 9, 22000856 55. E. Yoon, J. Lee, S. Byun, D. Kim, T. Yoon, Adv. Funct. Mater., 2022, 32, 2200026 56. M. Wang, M. Tang, S. Chen, H. Ci, K. Wang, L. Shi, L. Lin, H. Ren, J. Shan, P. Gao, Z. Liu, H. Peng, Adv. Mater., 2017, 29, 1703882 57. S. S. Zhang, T. R. Jow, J. Power Sources, 2002, 109, 458 58. E. Yoon, J. Lee, S. Byun, D. Kim, T. Yoon, Adv. Funct. Mater., 2022, 32, 2200026 59. H. Gao, T. Ma, T. Duong, L. Wang, X. He, I. Lyubinetsky, Z. Feng, F. Maglia, P. Lamp, K. Amine, Z. Chen, Mater. Today Energy, 2018, 7, 18 60. S. Myung, Y. Hitoshi, Y. Sun, J. Mater. Chem., 2011, 21, 9891 61. S. Myung, Y. Sasaki, S. Sakurada, Y. Sun, H. Yashiro, Electrochim. Acta, 2009, 55, 288 62. C. Yen, A. R. Neale, J. Lim, D. Bresser, L. J. Hardwick, C. Hu, Electrochim. Acta, 2022, 431, 141105 63. Z. Peng, D. Ding, W. Zhang, Y. Gao, G. Chen, Y. Xie, Y. Liao, Materials, 2022, 15, 5126 64. S. Y. Kim, Y. I. Song, J. Wee, C. H. Kim, B. W. Ahn, J. W. Lee, S. J. Shu, M. Terrones, Y. A. Kim, C. Yang, Carbon, 2019, 153, 495 65. J. Chen, Z. Bai, X. Li, Q. Wang, J. Du, R. Lu, X. Liu, Appl. Surf. Sci., 2022, 606, 155002 66. X. Yang, D. Ding, Y. Xu, W. Zhang, Y. Gao, Z. Wu, G. Chen, R. Chen, Y. Huang, J. Tang, Metals, 2020, 10, 109 67. X. Yang, D. Ding, Y. Xu, W. Zhang, Y. Gao, Z. Wu, G. Chen, R. Chen, Y. Huang, J. Tang, Metals, 2019, 9, 706 68. X. Li, S. Deng, M. N. Banis, K. Doyle-Davis, D. Zhang, T. Zhang, J. Yang, R. Divigalpitiya, F. Brandys, R. Li, X. Sun, ACS Appl. Mater. Interfaces, 2019, 11, 32826 69. S. Deng, M. Jiang, A. Rao, X. Lin, K. Doyle-Davis, J. Liang, C. Yu, R. Li, S. Zhao, L. Zhang, H. Huang, J. Wang, C. V. Singh, X. Sun, Adv. Funct. Mater., 2022, 32, 2200767 70. D. Shin, H. Ahn, ACS Appl. Mater. Interfaces, 2020, 12, 19210 71. G. Zhang, K. Lin, X. Qin, L. Zhang, T. Li, F. Lv, Y. Xia, W. Han, F. Kang, B. Li, ACS Appl. Mater. Interfaces, 2020, 12, 37034 72. S. J. Richard Prabakar, Y. Hwang, E. G. Bae, D. K. Lee, M. Pyo, Carbon, 2013, 52, 128 73. N. Piao, L. Wang, T. Anwar, X. Feng, S. E. Sheng, G. Tian, J. Wang, Y. Tang, X. He, Corros. Sci., 2019, 158, 108100 74. S. Yang, S. Li, Y. Meng, M. Yu, J. Liu, B. Li, Corros. Sci., 2021, 190, 109632 75. G. Teucher, T. Van Gestel, M. Krott, H. Gehrke, R. Eichel, S. Uhlenbruck, Thin Solid Films, 2016, 619, 302 76. T. Ma, G. Xu, Y. Li, L. Wang, X. He, J. Zheng, J. Liu, M. H. Engelhard, P. Zapol, L. A. Curtiss, J. Jorne, K. Amine, Z. Chen, J. Phys. Chem. Lett., 2017, 8, 1072 77. P. Briois, M. Arab-Pour-Yazdi, N. Martin, A. Billard, Coatings, 2020, 10, 224 78. S. Wang, K. V. Kravchyk, A. N. Filippin, R. Widmer, A. N. Tiwari, S. Buecheler, M. I. Bodnarchuk, M. V. Kovalenko, ACS Appl. Energ. Mater., 2019, 2, 974 79. A. Heckmann, M. Krott, B. Streipert, S. Uhlenbruck, M. Winter, T. Placke, Chemphyschem, 2017, 18, 156 80. X. Jiang, J. Chen, Y. Yang, Y. Lv, Y. Ren, W. Li, C. Li, Int. J. Electrochem. Sci., 2020, 15, 2667 81. T. Liu, L. Zhao, D. Wang, J. Zhu, B. Wang, C. Guo, RSC Adv., 2013, 3, 25648 82. S. Shironita, N. Ihsan, K. Konakawa, K. Souma, M. Umeda, Electrochim. Acta, 2019, 295, 1052 83. A. Irshad, D. Mitra, A. Sundar Rajan, P. Trinh, M. Balasubramanian, S. R. Narayanan, A. I. U. S. Argonne National Lab. Anl, J. Electrochem. Soc., 2020, 167, 20543 84. P. Han, B. Zhang, C. Huang, L. Gu, H. Li, G. Cui, Electrochem. Commun., 2014, 44, 70 85. S. K. Martha, N. J. Dudney, J. O. Kiggans, J. Nanda, J. Electrochem. Soc., 2012, 159, A1652 86. Y. Zhao, J. Yang, J. Ma, Q. Wu, W. Qian, Z. Wang, H. Zhang, D. He, S. Mu, ACS Sustain. Chem. Eng., 2021, 9, 8635 87. S. Chen, Q. Wang, C. Liu, J. Zhang, L. Wang, J. Luo, X. Fu, ACS Sustain. Chem. Eng., 2023, 11, 13483 88. Y. Yao, F. Jiang, C. Yang, K. K. Fu, J. Hayden, C. Lin, H. Xie, M. Jiao, C. Yang, Y. Wang, S. He, F. Xu, E. Hitz, T. Gao, J. Dai, W. Luo, G. Rubloff, C. Wang, L. Hu, ACS Nano, 2018, 12, 5266 89. Y. Chen, K. Fu, S. Zhu, W. Luo, Y. Wang, Y. Li, E. Hitz, Y. Yao, J. Dai, J. Wan, V. A. Danner, T. Li, L. Hu, Nano Lett., 2016, 16, 3616 90. K. Wang, Y. Wu, H. Wu, Y. Luo, D. Wang, K. Jiang, Q. Li, Y. Li, S. Fan, J. Wang, J. Power Sources, 2017, 351, 160 91. H. Li, L. Peng, D. Wu, J. Wu, Y. Zhu, X. Hu, Adv. Energy Mater., 2019, 9, 1802930 92. H. Sun, J. Zhu, D. Baumann, L. Peng, Y. Xu, I. Shakir, Y. Huang, X. Duan, Nat. Rev. Mater., 2018, 4, 45 93. Y. Kuang, C. Chen, D. Kirsch, L. Hu, Adv. Energy Mater., 2019, 9, 1901457 94. N. Issatayev, A. Nuspeissova, G. Kalimuldina, Z. Bakenov, J. Power Sources Adv., 2021, 10, 100065 95. Y. Yang, W. Yuan, X. Zhang, Y. Ke, Z. Qiu, J. Luo, Y. Tang, C. Wang, Y. Yuan, Y. Huang, Appl. Energy, 2020, 276, 115464 96. R. Xu, L. Du, D. Adekoya, G. Zhang, S. Zhang, S. Sun, Y. Lei, Adv. Energy Mater., 2021, 11, 2001537 97. A. Sankaran, N. Kapuria, S. Beloshapkin, S. A. Ahad, S. Singh, H. Geaney, K. M. Ryan, Adv. Mater., 2024, 36, 2310823 98. H. Zhao, C. Wang, R. Vellacheri, M. Zhou, Y. Xu, Q. Fu, M. Wu, F. Grote, Y. Lei, Adv. Mater., 2014, 26, 7654 99. P. L. Taberna, S. Mitra, P. Poizot, P. Simon, J. M. Tarascon, Nat. Mater., 2006, 5, 567 100. M. M. Shaijumon, E. Perre, B. Daffos, P. Taberna, J. Tarascon, P. Simon, Adv. Mater., 2010, 22, 4978 101. L. Bazin, S. Mitra, P. L. Taberna, P. Poizot, M. Gressier, M. J. Menu, A. Barnabé, P. Simon, J. M. Tarascon, J. Power Sources, 2009, 188, 578 102. F. Zhan, H. Zhang, Y. Qi, J. Wang, N. Du, D. Yang, J. Alloy. Compd., 2013, 570, 119 103. E. Perre, L. Nyholm, T. Gustafsson, P. Taberna, P. Simon, K. Edström, Electrochem. Commun., 2008, 10, 1467 104. G. Oltean, L. Nyholm, K. Edström, Electrochim. Acta, 2011, 56, 3203 105. S. R. Gowda, A. Leela Mohana Reddy, X. Zhan, H. R. Jafry, P. M. Ajayan, Nano Lett., 2012, 12, 1198 106. W. Wang, M. Tian, A. Abdulagatov, S. M. George, Y. Lee, R. Yang, Nano Lett., 2012, 12, 655 107. S. K. Cheah, E. Perre, M. Rooth, M. Fondell, A. Hårsta, L. Nyholm, M. Boman, T. Gustafsson, J. Lu, P. Simon, K. Edström, Nano Lett., 2009, 9, 3230 108. L. Liang, Y. Xu, L. Wen, Y. Li, M. Zhou, C. Wang, H. Zhao, U. Kaiser, Y. Lei, Nano Res., 2017, 10, 3189 109. L. Liang, Y. Xu, C. Wang, L. Wen, Y. Fang, Y. Mi, M. Zhou, H. Zhao, Y. Lei, Energy Environ. Sci., 2015, 8, 2954 110. G. Oltean, M. Valvo, L. Nyholm, K. Edström, Thin Solid Films, 2014, 562, 63 111. J. O. Omale, R. Rupp, P. Van Velthem, V. Van Kerckhoven, V. Antohe, A. Vlad, L. Piraux, Energy Storage Mater., 2019, 21, 77 112. A. Vlad, V. Antohe, J. M. Martinez-Huerta, E. Ferain, J. Gohy, L. Piraux, J. Mater. Chem. A, 2016, 4, 1603 113. Y. Li, J. Xu, T. Feng, Q. Yao, J. Xie, H. Xia, Adv. Funct. Mater., 2017, 27, 1606728 114. T. Song, H. Cheng, H. Choi, J. Lee, H. Han, D. H. Lee, D. S. Yoo, M. Kwon, J. Choi, S. G. Doo, H. Chang, J. Xiao, Y. Huang, W. I. Park, Y. Chung, H. Kim, J. A. Rogers, U. Paik, ACS Nano, 2012, 6, 303 115. G. Kim, S. Jeong, J. Shin, J. Cho, H. Lee, ACS Nano, 2014, 8, 1907 116. F. Cao, J. Deng, S. Xin, H. Ji, O. G. Schmidt, L. Wan, Y. Guo, Adv. Mater., 2011, 23, 4415 117. C. Yang, Y. Yin, S. Zhang, N. Li, Y. Guo, Nat. Commun., 2015, 6, 8058 118. Z. Zhang, Z. L. Wang, X. Lu, ACS Nano, 2018, 12, 3587 119. Z. Qi, J. Tang, S. Misra, C. Fan, P. Lu, J. Jian, Z. He, V. G. Pol, X. Zhang, H. Wang, Nano Energy, 2020, 69, 104381 120. N. Wang, T. Hang, H. Ling, A. Hu, M. Li, J. Mater. Chem. A, 2015, 3, 11912 121. C. Wu, C. Chang, J. Duh, J. Power Sources, 2016, 325, 64 122. Y. Y. Tang, X. H. Xia, Y. X. Yu, S. J. Shi, J. Chen, Y. Q. Zhang, J. P. Tu, Electrochim. Acta, 2013, 88, 664 123. S. Zhang, Z. Du, R. Lin, T. Jiang, G. Liu, X. Wu, D. Weng, Adv. Mater., 2010, 22, 5378 124. X. Wang, Z. Yang, X. Sun, X. Li, D. Wang, P. Wang, D. He, J. Mater. Chem., 2011, 21, 9988 125. Z. Du, S. Zhang, Y. Xing, X. Wu, J. Power Sources, 2011, 196, 9780 126. J. Hao, X. Liu, X. Liu, X. Liu, N. Li, X. Ma, Y. Zhang, Y. Li, J. Zhao, RSC Adv., 2015, 5, 19596 127. T. Hang, H. Nara, T. Yokoshima, T. Momma, T. Osaka, J. Power Sources, 2013, 222, 503 128. G. Zhang, J. Hu, Y. Nie, Y. Zhao, L. Wang, Y. Li, H. Liu, L. Tang, X. Zhang, D. Li, L. Sun, H. Duan, Adv. Funct. Mater., 2021, 31, 2100290 129. M. Shimizu, R. Yatsuzuka, M. Horita, T. Yamamoto, S. Arai, J. Phys. Chem. C, 2017, 121, 27285 130. Y. Hu, J. Liu, R. Ding, K. Wang, J. Jiang, X. Ji, Y. Li, X. Huang, Thin Solid Films, 2010, 518, 6876 131. Y. Yue, D. Juarez-Robles, Y. Chen, L. Ma, W. C. H. Kuo, P. Mukherjee, H. Liang, ACS Appl. Mater. Interfaces, 2017, 9, 28695 132. G. Lee, H. Shim, D. Kim, Nano Energy, 2015, 13, 218 133. G. Lee, S. Lee, C. W. Lee, C. Choi, D. Kim, J. Mater. Chem. A, 2016, 4, 1060 134. W. Zhao, N. Du, C. Xiao, H. Wu, H. Zhang, D. Yang, J. Mater. Chem. A, 2014, 2, 13949 135. J. M. Haag, G. Pattanaik, M. F. Durstock, Adv. Mater., 2013, 25, 3238 136. L. Lu, J. Ge, J. Yang, S. Chen, H. Yao, F. Zhou, S. Yu, Nano Lett., 2016, 16, 4431 137. Z. Yin, S. Cho, D. You, Y. Ahn, J. Yoo, Y. S. Kim, Nano Res., 2018, 11, 769 138. S. Song, S. W. Kim, D. J. Lee, Y. Lee, K. M. Kim, C. Kim, J. Park, Y. M. Lee, K. Y. Cho, ACS Appl. Mater. Interfaces, 2014, 6, 11544 139. B. Breitung, N. Aguiló-Aguayo, T. Bechtold, H. Hahn, J. Janek, T. Brezesinski, Sci. Rep., 2017, 7, 13010 140. Q. Li, S. Zhu, Y. Lu, Adv. Funct. Mater., 2017, 27, 1606422 141. J. Y. Seok, J. Lee, J. H. Park, M. Yang, Adv. Energy Mater., 2019, 9, 1803764 142. L. Liu, H. Zhao, Y. Lei, Small Methods, 2019, 3, 1800341 143. C. Shi, Q. Zhao, H. Li, Z. Liao, D. Yu, Nano Energy, 2014, 6, 82 144. R. Ron, E. Haleva, A. Salomon, Adv. Mater., 2018, 30, 1706755 145. V. Paserin, S. Marcuson, J. Shu, D. S. Wilkinson, Adv. Eng. Mater., 2004, 6, 454 146. X. Huang, D. Xu, S. Yuan, D. Ma, S. Wang, H. Zheng, X. Zhang, Adv. Mater., 2014, 26, 7264 147. G. Yang, S. Joo, Electrochim. Acta, 2015, 170, 263 148. H. Zhu, X. Du, Z. Xu, Z. Lin, X. Li, X. Wang, ACS Appl. Energ. Mater., 2022, 5, 7392 149. D. Mazouzi, D. Reyter, M. Gauthier, P. Moreau, D. Guyomard, L. Roué, B. Lestriez, Adv. Energy Mater., 2014, 4, 1301718 150. G. F. Yang, K. Y. Song, S. K. Joo, J. Mater. Chem. A, 2014, 2, 19648 151. M. Fritsch, G. Standke, C. Heubner, U. Langklotz, A. Michaelis, J. Energy Storage, 2018, 16, 125 152. G. Yang, K. Song, S. Joo, RSC Adv., 2015, 5, 16702 153. C. Zhao, S. Li, X. Luo, B. Li, W. Pan, H. Wu, J. Mater. Chem. A, 2015, 3, 10114 154. Z. Yang, J. Tian, Z. Ye, Y. Jin, C. Cui, Q. Xie, J. Wang, G. Zhang, Z. Dong, Y. Miao, X. Yu, W. Qian, F. Wei, Energy Storage Mater., 2020, 33, 18 155. Z. Yu, Z. Cheng, G. Tsekouras, X. Wang, X. Kong, M. Osada, S. X. Dou, Electrochim. Acta, 2018, 281, 761 156. J. Li, J. Xiao, Z. Wang, Z. Wei, Y. Qiu, S. Yang, Nano Energy, 2014, 10, 329 157. T. Qiu, B. Luo, M. Giersig, E. M. Akinoglu, L. Hao, X. Wang, L. Shi, M. Jin, L. Zhi, Small, 2014, 10, 4136 158. H. Zhang, T. Shi, D. J. Wetzel, R. G. Nuzzo, P. V. Braun, Adv. Mater., 2016, 28, 742 159. H. Zhang, X. Yu, P. V. Braun, Nat. Nanotechnol., 2011, 6, 277 160. H. Zhang, P. V. Braun, Nano Lett., 2012, 12, 2778 161. J. H. Pikul, H. Gang Zhang, J. Cho, P. V. Braun, W. P. King, Nat. Commun., 2013, 4, 1732 162. J. Wang, N. Du, Z. Song, H. Wu, H. Zhang, D. Yang, RSC Adv., 2013, 3, 7543 163. A. Varzi, L. Mattarozzi, S. Cattarin, P. Guerriero, S. Passerini, Adv. Energy Mater., 2018, 8, 1701706 164. T. Wang, Y. Guo, B. Zhao, S. Yu, H. Yang, D. Lu, X. Fu, R. Sun, C. Wong, J. Power Sources, 2015, 286, 371 165. A. Ferris, S. Garbarino, D. Guay, D. Pech, Adv. Mater., 2015, 27, 6625 166. M. Mirzaee, C. Dehghanian, J. Iran. Chem. Soc., 2019, 16, 283 167. X. Chen, K. Sun, E. Zhang, N. Zhang, RSC Adv., 2013, 3, 432 168. X. Fan, F. Ke, G. Wei, L. Huang, S. Sun, J. Alloy. Compd., 2009, 476, 70 169. Q. Q. Xiong, H. Y. Qin, H. Z. Chi, Z. G. Ji, J. Alloy. Compd., 2016, 685, 15 170. X. Lang, A. Hirata, T. Fujita, M. Chen, Adv. Energy Mater., 2014, 4, 1301809 171. C. Hou, X. Shi, C. Zhao, X. Lang, L. Zhao, Z. Wen, Y. Zhu, M. Zhao, J. Li, Q. Jiang, J. Mater. Chem. A, 2014, 2, 15519 172. B. Liu, J. Hou, T. Zhang, C. Xu, H. Liu, J. Mater. Chem. A, 2019, 7, 16222 173. X. Lang, A. Hirata, T. Fujita, M. Chen, Nat. Nanotechnol., 2011, 6, 232 174. Z. Luo, J. Xu, B. Yuan, R. Hu, L. Yang, Y. Gao, M. Zhu, ACS Appl. Mater. Interfaces, 2018, 10, 22050 175. V. S. Prabhin, K. Jeyasubramanian, I. Jeyaseeli Rashmi, G. S. Hikku, P. Veluswamy, B. J. Cho, Mater. Chem. Phys., 2018, 220, 128 176. L. Y. Chen, Y. Hou, J. L. Kang, A. Hirata, T. Fujita, M. W. Chen, Adv. Energy Mater., 2013, 3, 851 177. Y. Chen, H. Feng, Y. Wang, Z. Tang, D. Chua, Mater. Lett., 2018, 226, 8 178. X. Liu, R. Zhang, W. Yu, Y. Yang, Z. Wang, C. Zhang, Y. Bando, D. Golberg, X. Wang, Y. Ding, Energy Storage Mater., 2018, 11, 83 179. Y. Li, J. Li, X. Lang, Z. Wen, W. Zheng, Q. Jiang, Adv. Funct. Mater., 2017, 27, 1700447 180. W. Liu, X. Chen, P. Xiang, S. Zhang, J. Yan, N. Li, S. Shi, Nanoscale, 2019, 11, 4885 181. D. Gao, G. Yang, Z. Zhu, J. Zhang, Z. Yang, Z. Zhang, D. Xue, J. Mater. Chem., 2012, 22, 9462 182. Z. Zhang, P. He, X. Li, Z. Yang, Y. Fu, Z. Lin, J. Alloy. Compd., 2018, 758, 38. 183. H. Mao, P. Shen, G. Yang, L. Zhao, X. Qiu, H. Wang, Q. Jiang, J. Mater. Sci., 2020, 55, 11462 184. Y. Fu, Z. Yang, X. Li, X. Wang, D. Liu, D. Hu, L. Qiao, D. He, J. Mater. Chem. A, 2013, 1, 10002 185. L. Lu, P. Andela, J. T. M. De Hosson, Y. Pei, ACS Appl. Nano Mater., 2018, 1, 2206 186. L. Lu, J. T. M. De Hosson, Y. Pei, Carbon, 2019, 144, 713 187. W. Xu, N. L. Canfield, D. Wang, J. Xiao, Z. Nie, X. S. Li, W. D. Bennett, C. C. Bonham, J. Zhang, J. Electrochem. Soc., 2010, 157, A765 188. X. Guo, J. Han, L. Zhang, P. Liu, A. Hirata, L. Chen, T. Fujita, M. Chen, Nanoscale, 2015, 7, 15111 189. K. Evanoff, J. Khan, A. A. Balandin, A. Magasinski, W. J. Ready, T. F. Fuller, G. Yushin, Adv. Mater., 2012, 24, 533 190. H. Zhou, F. Lou, P. E. Vullum, M. Einarsrud, D. Chen, F. Vullum-Bruer, Nanotechnology, 2013, 24, 435703 191. S. Lee, J. Ha, H. Cheng, J. W. Lee, T. S. Jang, Y. Jung, Y. Huang, J. A. Rogers, U. Paik, Adv. Energy Mater., 2014, 4, 1300472 192. X. Wang, R. A. Susantyoko, Y. Fan, L. Sun, Q. Xiao, Q. Zhang, Small, 2014, 10, 2826 193. A. Gohier, B. Laïk, K. Kim, J. Maurice, J. Pereira-Ramos, C. S. Cojocaru, P. T. Van, Adv. Mater., 2012, 24, 2592 194. Y. Zhao, M. Hong, N. Bonnet Mercier, G. Yu, H. C. Choi, H. R. Byon, Nano Lett., 2014, 14, 1085 195. G. P. Pandey, S. A. Klankowski, Y. Li, X. S. Sun, J. Wu, R. A. Rojeski, J. Li, ACS Appl. Mater. Interfaces, 2015, 7, 20909 196. H. Kim, X. Huang, X. Guo, Z. Wen, S. Cui, J. Chen, ACS Appl. Mater. Interfaces, 2014, 6, 18590 197. E. Kang, G. Jeon, J. K. Kim, Chem. Commun., 2013, 49, 6406 198. K. Chiu, S. Su, H. Leu, C. Wu, Surf. Coat. Technol., 2015, 267, 70 199. J. Kim, S. Kennedy, I. Phiri, S. Ryou, ACS Appl. Mater. Interfaces, 2024, 16, 11400 200. K. Wang, Y. Li, X. Wu, J. Chen, J. Power Sources, 2012, 203, 140 201. Y. Zhang, Q. Zou, H. S. Hsu, S. Raina, Y. Xu, J. B. Kang, J. Chen, S. Deng, N. Xu, W. P. Kang, ACS Appl. Mater. Interfaces, 2016, 8, 7363 202. Z. Zhang, C. Lee, W. Zhang, Adv. Energy Mater., 2017, 7, 1700678 203. T. M. Dinh, A. Achour, S. Vizireanu, G. Dinescu, L. Nistor, K. Armstrong, D. Guay, D. Pech, Nano Energy, 2014, 10, 288 204. S. Moitzheim, C. S. Nimisha, S. Deng, D. J. Cott, C. Detavernier, P. M. Vereecken, Nanotechnology, 2014, 25, 504008 205. R. Thomas, K. Yellareswar Rao, G. Mohan Rao, Electrochim. Acta, 2013, 108, 458 206. S. Jin, Y. Jiang, H. Ji, Y. Yu, Adv. Mater., 2018, 30, 1802014 207. S. Li, G. Liu, J. Liu, Y. Lu, Q. Yang, L. Yang, H. Yang, S. Liu, M. Lei, M. Han, J. Mater. Chem. A, 2016, 4, 6426 208. T. Qin, S. Peng, J. Hao, Y. Wen, Z. Wang, X. Wang, D. He, J. Zhang, J. Hou, G. Cao, Adv. Energy Mater., 2017, 7, 1700409 209. X. Wu, Z. Han, X. Zheng, S. Yao, X. Yang, T. Zhai, Nano Energy, 2017, 31, 410 210. N. A. Alhebshi, R. B. Rakhi, H. N. Alshareef, J. Mater. Chem. A, 2013, 1, 14897 211. L. Wang, H. Yang, X. Liu, R. Zeng, M. Li, Y. Huang, X. Hu, Angew. Chem., 2017, 129, 1125 212. A. Joshi, A. Raulo, S. Bandyopadhyay, A. Gupta, R. Srivastava, B. Nandan, Carbon, 2022, 192, 429 213. G. H. Waller, S. Y. Lai, B. H. Rainwater, M. Liu, J. Power Sources, 2014, 251, 411 214. X. Xiong, G. Waller, D. Ding, D. Chen, B. Rainwater, B. Zhao, Z. Wang, M. Liu, Nano Energy, 2015, 16, 71 215. G. Kalimuldina, I. Taniguchi, J. Mater. Chem. A, 2017, 5, 6937 216. J. Wang, H. Zhong, Z. Wang, F. Meng, X. Zhang, ACS Nano, 2016, 10, 2342 217. J. Wang, H. Sun, H. Liu, D. Jin, R. Zhou, B. Wei, J. Mater. Chem. A, 2017, 5, 23115 218. L. Chen, Y. Feng, H. Liang, Z. Wu, S. Yu, Adv. Energy Mater., 2017, 7, 1700826 219. J. Wang, R. Zhou, D. Jin, K. Xie, B. Wei, Electrochim. Acta, 2017, 231, 396 220. S. Abouali, M. Akbari Garakani, B. Zhang, H. Luo, Z. Xu, J. Huang, J. Huang, J. Kim, J. Mater. Chem. A, 2014, 2, 16939 221. J. Wang, H. Wang, F. Li, S. Xie, G. Xu, Y. She, M. K. H. Leung, T. Liu, J. Mater. Chem. A, 2019, 7, 3024 222. E. Josef, R. Yan, R. Guterman, M. Oschatz, ACS Appl. Energy Mater., 2019, 2, 5724 223. S. Kalybekkyzy, A. Mentbayeva, Y. Yerkinbekova, N. Baikalov, M. V. Kahraman, Z. Bakenov, Nanomaterials, 2020, 10, 745 224. J. W. Hu, Z. P. Wu, S. W. Zhong, W. B. Zhang, S. Suresh, A. Mehta, N. Koratkar, Carbon, 2015, 87, 292 225. J. Zou, X. Sun, R. Li, Q. He, Journal of Materials Science: Materials in Electronics, 2020, 31, 9242 226. N. Yitzhack, M. Auinat, N. Sezin, Y. Ein-Eli, APL Mater., 2018, 6, 111102 227. S. Yehezkel, M. Auinat, N. Sezin, D. Starosvetsky, Y. Ein-Eli, J. Power Sources, 2016, 312, 109 228. K. R. Crompton, M. P. Hladky, H. H. Park, S. M. Prokes, C. T. Love, B. J. Landi, Electrochim. Acta, 2018, 292, 628 229. S. Zhu, J. Sheng, Y. Chen, J. Ni, Y. Li, Natl. Sci. Rev., 2021, 8, nwaa261 230. D. Wei, W. Shen, T. Xu, K. Li, L. Yang, Y. Zhou, M. Zhong, F. Yang, X. Xu, Y. Wang, M. Zheng, Y. Zhang, Q. Li, Z. Yong, H. Li, Q. Wang, Mater. Today Energy, 2022, 23, 100889 231. C. Arbizzani, S. Beninati, M. Lazzari, M. Mastragostino, J. Power Sources, 2006, 158, 635 232. K. Fu, O. Yildiz, H. Bhanushali, Y. Wang, K. Stano, L. Xue, X. Zhang, P. D. Bradford, Adv. Mater., 2013, 25, 5109 233. J. J. Vilatela, R. Marcilla, Chem. Mater., 2015, 27, 6901 234. R. Zhou, C. Meng, F. Zhu, Q. Li, C. Liu, S. Fan, K. Jiang, Nanotechnology, 2010, 21, 345701 235. K. Wang, S. Luo, Y. Wu, X. He, F. Zhao, J. Wang, K. Jiang, S. Fan, Adv. Funct. Mater., 2013, 23, 846 236. K. Jiang, J. Wang, Q. Li, L. Liu, C. Liu, S. Fan, Adv. Mater., 2011, 23, 1154 237. B. G. Choi, S. Chang, Y. B. Lee, J. S. Bae, H. J. Kim, Y. S. Huh, Nanoscale, 2012, 4, 5924 238. B. G. Choi, M. Yang, W. H. Hong, J. W. Choi, Y. S. Huh, ACS Nano, 2012, 6, 4020 239. X. Huang, K. Qian, J. Yang, J. Zhang, L. Li, C. Yu, D. Zhao, Adv. Mater., 2012, 24, 4419 240. Y. Xu, K. Sheng, C. Li, G. Shi, ACS Nano, 2010, 4, 4324 241. Q. Shi, Y. Cha, Y. Song, J. Lee, C. Zhu, X. Li, M. Song, D. Du, Y. Lin, Nanoscale, 2016, 8, 15414 242. W. Chen, L. Yan, Nanoscale, 2011, 3, 3132 243. W. Lv, C. Zhang, Z. Li, Q. Yang, J. Phys. Chem. Lett., 2015, 6, 658 244. F. Liu, T. S. Seo, Adv. Funct. Mater., 2010, 20, 1930 245. F. Liu, S. Chung, G. Oh, T. S. Seo, ACS Appl. Mater. Interfaces, 2012, 4, 922 246. Z. Chen, W. Ren, L. Gao, B. Liu, S. Pei, H. Cheng, Nat. Mater., 2011, 10, 424 247. X. Yu, B. Lu, Z. Xu, Adv. Mater., 2014, 26, 1044 248. H. Ji, L. Zhang, M. T. Pettes, H. Li, S. Chen, L. Shi, R. Piner, R. S. Ruoff, Nano Lett., 2012, 12, 2446 249. J. He, Q. Li, Y. Chen, C. Xu, K. Zhou, X. Wang, W. Zhang, Y. Li, Carbon, 2017, 114, 111 250. Y. Hsieh, Y. Fang, J. Daum, S. N. Kanakaraj, G. Zhang, S. Mishra, S. Gbordzoe, V. Shanov, Carbon, 2019, 145, 677 251. S. Chu, Y. Zhong, R. Cai, Z. Zhang, S. Wei, Z. Shao, Small, 2016, 12, 6724 252. Z. Cao, J. Zhang, Y. Ding, Y. Li, M. Shi, H. Yue, Y. Qiao, Y. Yin, S. Yang, J. Mater. Chem. A, 2016, 4, 8636 253. J. Xu, Z. Tan, W. Zeng, G. Chen, S. Wu, Y. Zhao, K. Ni, Z. Tao, M. Ikram, H. Ji, Y. Zhu, Adv. Mater., 2016, 28, 5222 254. Z. Bi, Q. Kong, Y. Cao, G. Sun, F. Su, X. Wei, X. Li, A. Ahmad, L. Xie, C. Chen, J. Mater. Chem. A, 2019, 7, 16028 255. Z. Zhou, N. Li, Y. Yang, H. Chen, S. Jiao, W. Song, D. Fang, Adv. Energy Mater., 2018, 8, 1801439 256. D. Sun, X. Miao, Y. He, L. Wang, X. Zhou, G. Ma, Z. Lei, Electrochim. Acta, 2019, 320, 134616 257. C. Jin, J. Nai, O. Sheng, H. Yuan, W. Zhang, X. Tao, X. W. D. Lou, Energy Environ. Sci., 2021, 14, 1326 258. C. Chen, Y. Zhang, Y. Li, Y. Kuang, J. Song, W. Luo, Y. Wang, Y. Yao, G. Pastel, J. Xie, L. Hu, Adv. Energy Mater., 2017, 7, 1700595 259. C. Chen, Y. Zhang, Y. Li, J. Dai, J. Song, Y. Yao, Y. Gong, I. Kierzewski, J. Xie, L. Hu, Energy Environ. Sci., 2017, 10, 538 260. F. Wang, J. Y. Cheong, Q. He, G. Duan, S. He, L. Zhang, Y. Zhao, I. Kim, S. Jiang, Chem. Eng. J., 2021, 414, 128767 261. X. Wang, Y. Zhang, C. Zhi, X. Wang, D. Tang, Y. Xu, Q. Weng, X. Jiang, M. Mitome, D. Golberg, Y. Bando, Nat. Commun., 2013, 4, 2905 262. R. Usiskin, J. Maier, Adv. Energy Mater., 2021, 11, 2001455 263. L. Yu, Z. Qian, N. Shi, Q. Liu, J. Wang, X. Jing, RSC Adv., 2014, 4, 37491 264. C. Dai, Z. Wang, K. Liu, X. Zhu, X. Liao, X. Chen, Y. Pan, Eng. Fail. Anal., 2019, 101, 193 265. P. Taheri, A. Mansouri, B. Schweitzer, M. Yazdanpour, M. Bahrami, J. Electrochem. Soc., 2013, 160, A1731 266. P. Taheri, S. Hsieh, M. Bahrami, J. Power Sources, 2011, 196, 6525 267. S. Yoshihara, H. Katsuta, H. Isozumi, M. Kasai, K. Oyaizu, H. Nishide, J. Power Sources, 2011, 196, 7806 268. J. Huang, P. Zhai, H. Peng, W. Zhu, Q. Zhang, Sci. Bull., 2017, 62, 1267 269. Z. Bo, W. Zhu, W. Ma, Z. Wen, X. Shuai, J. Chen, J. Yan, Z. Wang, K. Cen, X. Feng, Adv. Mater., 2013, 25, 5799 270. X. Liu, D. Wang, B. Zhang, C. Luan, T. Qin, W. Zhang, D. Wang, X. Shi, T. Deng, W. Zheng, Electrochim. Acta, 2018, 268, 234 271. K. Wang, C. Wang, H. Yang, X. Wang, F. Cao, Q. Wu, H. Peng, Nano Res., 2020, 13, 1948 272. M. Wang, H. Yang, K. Wang, S. Chen, H. Ci, L. Shi, J. Shan, S. Xu, Q. Wu, C. Wang, M. Tang, P. Gao, Z. Liu, H. Peng, Nano Lett., 2020, 20, 2175 273. D. Shin, D. Park, H. Ahn, Appl. Surf. Sci., 2019, 475, 519 274. H. Pan, Y. Hu, H. Li, L. Chen, Chin. Phys. B, 2011, 20, 118202 275. Y. Arai, M. Kunisawa, T. Yamaguchi, H. Yokouchi, A. Matsuo, M. Ohmori, Ecs Transactions, 2013, 50, 153 276. M. Kuenzel, D. Bresser, G. Kim, P. Axmann, M. Wohlfahrt-Mehrens, S. Passerini, ACS Appl. Energ. Mater., 2020, 3, 218 277. A. Benítez, F. Luna-Lama, A. Caballero, E. Rodríguez-Castellón, J. Morales, J. Energy Chem., 2021, 62, 295 278. J. Jiang, P. Nie, B. Ding, W. Wu, Z. Chang, Y. Wu, H. Dou, X. Zhang, ACS Appl. Mater. Interfaces, 2016, 8, 30926 279. H. R. Kim, W. M. Choi, Scr. Mater., 2018, 146, 100 280. Y. Lee, G. An, B. Kim, J. Hong, S. Pak, E. Lee, Y. Cho, J. Lee, P. Giraud, S. N. Cha, H. Ahn, J. I. Sohn, J. M. Kim, ACS Appl. Mater. Interfaces, 2016, 8, 17651 281. J. Ning, L. Hao, X. Zhang, M. Liang, L. Zhi, Science China Technological Sciences, 2014, 57, 259 282. E. Cho, C. Chang-Jian, Y. Wu, S. Chao, J. Huang, K. Lee, H. C. Weng, S. Hsu, J. Power Sources, 2021, 506, 230060 283. C. Portet, P. L. Taberna, P. Simon, E. Flahaut, J. Electrochem. Soc., 2006, 153, A649 284. K. Chiu, S. Su, H. Leu, W. Huang, Thin Solid Films, 2015, 596, 34 285. K. Rytel, D. Waszak, K. Kędzierski, D. Wróbel, Electrochim. Acta, 2016, 222, 921 286. Z. Huang, J. Li, J. Yao, H. Zhou, Y. Huang, L. Wang, Journal of Materials Science: Materials in Electronics, 2017, 28, 15095 287. I. Doberdò, N. Löffler, N. Laszczynski, D. Cericola, N. Penazzi, S. Bodoardo, G. Kim, S. Passerini, J. Power Sources, 2014, 248, 1000 288. K. Striebel, J. Shim, A. Sierra, H. Yang, X. Song, R. Kostecki, K. Mccarthy, J. Power Sources, 2005, 146, 33 289. D. Y. Kornilov, S. P. Gubin, P. N. Chuprov, A. Y. Rychagov, A. V. Cheglakov, A. S. Karaseva, E. S. Krasnova, V. A. Voronov, S. V. Tkachev, L. A. Kasharina, Russ. J. Electrochem., 2017, 53, 622 290. S. Kang, H. Xie, W. Zhang, J. Zhang, Z. Ma, R. Wang, X. Wu, Electrochim. Acta, 2015, 176, 604 291. X. Zhu, S. Zhou, X. Jiang, X. Yao, X. Xu, A. Peng, L. Wang, Q. Xue, J. Alloy. Compd., 2020, 830, 154682 292. S. Zhou, G. Liu, N. Ding, L. Shang, R. Dang, J. Zhang, Surf. Coat. Technol., 2020, 399, 126150 293. H. Wu, H. Wu, E. Lee, N. Wu, Electrochem. Commun., 2010, 12, 488 294. H. Wu, Y. Lin, E. Lee, W. Lin, J. Hu, H. Chen, N. Wu, Mater. Chem. Phys., 2009, 117, 294 295. S. Chen, K. Chiu, S. Su, S. Liu, K. H. Hou, H. Leu, C. Hsiao, Thin Solid Films, 2014, 572, 56 296. R. Wang, W. Li, L. Liu, Y. Qian, F. Liu, M. Chen, Y. Guo, L. Liu, J. Electroanal. Chem., 2019, 833, 63 297. D. Lepage, L. Savignac, M. Saulnier, S. Gervais, S. B. Schougaard, Electrochem. Commun., 2019, 102, 1 298. S. Wen, Z. Li, C. Zou, W. Zhong, C. Wang, J. Chen, S. Zhong, New J. Chem., 2021, 45, 1541 299. K. Ding, J. Chen, D. Zhang, F. Shi, B. Li, W. Tian, X. He, L. Wang, H. Wang, Synth. Met., 2021, 278, 116837 300. R. Solmaz, B. D. Karahan, J. Alloy. Compd., 2021, 872, 159594 301. E. Taer, M. Deraman, I. A. Talib, S. A. Hashmi, A. A. Umar, Electrochim. Acta, 2011, 56, 10217 302. S. Tao, Z. Zeng, X. Shi, C. Liao, E. Guo, X. Long, H. Zhou, X. Wang, D. Deng, Y. Dai, Appl. Surf. Sci., 2018, 456, 410 303. F. Martín, E. Navarrete, J. Morales, C. Roldán, J. R. Ramos-Barrado, L. Sánchez, J. Mater. Chem., 2010, 20, 2847 304. X. Li, L. Wang, C. Li, B. Chen, Q. Zhao, G. Zhang, J. Power Sources, 2016, 308, 65 305. S. Byun, J. Yu, J. Power Sources, 2016, 307, 849 306. S. W. Kim, J. H. Yun, B. Son, Y. Lee, K. M. Kim, Y. M. Lee, K. Y. Cho, Adv. Mater., 2014, 26, 2977 307. J. Busom, A. Schreiber, A. Tolosa, N. Jäckel, I. Grobelsek, N. J. Peter, V. Presser, J. Power Sources, 2016, 329, 432 308. E. Luais, J. Sakai, S. Desplobain, G. Gautier, F. Tran-Van, F. Ghamouss, J. Power Sources, 2013, 242, 166 309. K. C. Kil, M. E. Lee, G. Y. Kim, C. Cho, K. Kim, G. Kim, U. Paik, J. Phys. Chem. C, 2011, 115, 16242 310. F. Zou, A. Manthiram, Adv. Energy Mater., 2020, 10, 2002508 311. Y. Shi, X. Zhou, G. Yu, Acc. Chem. Res., 2017, 50, 2642 312. K. Park, H. E. Yoo, Y. Jung, M. Ryu, S. Myeong, D. Lee, S. C. Kim, C. Kim, J. Kim, J. Kwon, K. Lee, C. Cho, U. Paik, T. Song, J. Power Sources, 2023, 577, 233238 313. J. H. Hwang, E. Kim, E. Y. Lim, W. Lee, J. Kim, I. Choi, Y. S. Kim, D. Kim, J. H. Lee, J. Lee, Adv. Sci., 2023, 10, 2302144 314. H. Jeon, I. Cho, H. Jo, K. Kim, M. Ryou, Y. M. Lee, RSC Adv., 2017, 7, 35681 315. S. Yu, B. Lee, S. Choi, S. Park, B. H. Hong, Y. Sung, Chem. Commun., 2016, 52, 3203 316. X. Fan, F. Ke, G. Wei, L. Huang, S. Sun, J. Solid State Electrochem., 2009, 13, 1849 317. C. G. Bong, L. B. Ki, S. W. Chul, C. K. Koo, A. H. Jun, N. T. Hyun, K. K. Won, J. Mater. Sci., 2006, 41, 313 318. D. Gu, H. Kim, J. Lee, S. Park, J. Energy Chem., 2022, 70, 248 319. J. Kim, S. Kennedy, I. Phiri, S. Ryou, ACS Appl. Mater. Interfaces, 2024, 16, 11400 320. L. Romoli, A. H. A. Lutey, G. Lazzini, Cirp Ann.-Manuf. Technol., 2022, 71, 481 321. S. Yoon, H. Jang, S. Kim, J. Kim, K. Y. Cho, J. Electroanal. Chem., 2017, 797, 37 322. A. Mukanova, A. Nurpeissova, S. Kim, M. Myronov, Z. Bakenov, Chemistryopen, 2018, 7, 92 323. M. M. Loghavi, M. Askari, M. Babaiee, A. Ghasemi, J. Electroanal. Chem., 2019, 841, 107 324. Z. Wu, W. Qiu, Y. Chen, Y. Luo, Y. Huang, Q. Lei, S. Guo, P. Liu, M. Balogun, Y. Tong, J. Mater. Chem. A, 2017, 5, 756 325. G. Cho, Y. Im, W. Lee, S. Lee, S. Y. Ji, G. Kim, T. Nam, K. Kim, Thin Solid Films, 2013, 546, 410 326. Q. Yi, Y. He, N. Peng, H. Song, X. Yang, X. Cai, Int. J. Miner. Metall. Mater., 2016, 23, 70 327. C. U. Jeong, S. Lee, J. Kim, K. Y. Cho, S. Yoon, J. Power Sources, 2018, 398, 193 328. S. Nakanishi, T. Suzuki, Q. Cui, J. Akikusa, K. Nakamura, Trans. Nonferrous Met. Soc. China, 2014, 24, 2314 329. G. An, S. Cha, H. Ahn, Appl. Surf. Sci., 2019, 478, 435 330. J. Ha, G. Cho, K. Kim, J. Ahn, D. K. Cho, J. Nanosci. Nanotechnol., 2016, 16, 10552 331. C. Lecoeur, J. Tarascon, C. Guery, Electrochem. Solid-State Lett., 2011, 14, A6 332. L. Cao, L. Li, Z. Xue, W. Yang, H. Zou, S. Chen, Z. Liu, J. Porous Mater., 2020, 27, 1677 333. G. Cho, J. Kim, S. Lee, G. Kim, J. Noh, K. Cho, K. Kim, T. Nam, H. Ahn, Electrochim. Acta, 2017, 224, 649 334. D. Shin, K. Sung, H. Ahn, Chem. Eng. J., 2021, 413, 127563 335. J. C. Chen, J. Yang, M. M. Cheng, J. Power Sources, 2019, 430, 169 336. Y. Kim, Y. Sun, S. Lee, Electrochim. Acta, 2008, 53, 4500 337. Y. Ding, Q. Zhang, K. Rui, F. Xu, H. Lin, Y. Yan, H. Li, J. Zhu, W. Huang, Nano Lett., 2020, 20, 8818 338. J. Luo, W. Yuan, S. Huang, B. Zhao, Y. Chen, M. Liu, Y. Tang, Adv. Sci., 2018, 5, 1800031 339. W. Yuan, J. Luo, Z. Yan, Z. Tan, Y. Tang, Electrochim. Acta, 2017, 226, 89. 340. W. Yuan, Z. Qiu, Y. Huang, C. Wang, H. Huang, Y. Yang, X. Zhang, J. Luo, Y. Tang, Energy Technol., 2019, 7, 1900445 341. M. Park, M. Noh, S. Lee, M. Ko, S. Chae, S. Sim, S. Choi, H. Kim, H. Nam, S. Park, J. Cho, Nano Lett., 2014, 14, 4083 342. Y. Huang, Y. Li, Q. Gong, G. Zhao, P. Zheng, J. Bai, J. Gan, M. Zhao, Y. Shao, D. Wang, L. Liu, G. Zou, D. Zhuang, J. Liang, H. Zhu, C. Nan, ACS Appl. Mater. Interfaces, 2018, 10, 16572 343. D. Yang, A. Laforgue, J. Electrochem. Soc., 2019, 166, A2503 344. J. So, C. Lee, J. Kim, H. Kim, J. Jun, W. Bae, Materials, 2018, 11, 1018 345. Q. Li, X. Sun, W. Zhao, X. Hou, Y. Zhang, F. Zhao, X. Li, X. Mei, Adv. Eng. Mater., 2020, 22, 2000710 346. D. Yang, A. Laforgue, J. Electrochem. Soc., 2021, 168, 050504 347. X. Fei, Z. Dong, B. Gong, X. Zhao, ACS Appl. Mater. Interfaces, 2021, 13, 42266 348. Y. Wang, Z. Zhao, J. Zhong, T. Wang, L. Wang, H. Xu, J. Cao, J. Li, G. Zhang, H. Fei, J. Zhu, Energy Environ. Mater., 2022, 5, 969 349. T. Xia, T. Liang, Z. E. Xiao, J. Chen, J. Liu, S. Zhong, J. Alloy. Compd., 2020, 831, 154801 350. Z. Xiao, J. Chen, J. Liu, T. Liang, Y. Xu, C. Zhu, S. Zhong, J. Power Sources, 2019, 438, 226973 351. W. Yuan, B. Pan, Z. Qiu, Z. Peng, Y. Ye, Y. Huang, H. Huang, Y. Tang, ACS Sustain. Chem. Eng., 2019, 7, 12910 352. J. Cao, S. Tian, K. Zhang, R. Liu, H. Guo, L. Wen, G. Liang, J. Electrochem. Soc., 2021, 168, 70526 353. S. Kim, S. Moon, M. Kim, J. So, S. Han, D. Kwak, W. Bae, K. Park, J. Appl. Electrochem., 2018, 48, 1057 354. J. Chen, X. Wang, H. Gao, S. Yan, S. Chen, X. Liu, X. Hu, Surf. Coat. Technol., 2021, 410, 126881 355. J. Ha, A. K. Haridas, G. Cho, H. Ahn, J. Ahn, K. Cho, Appl. Surf. Sci., 2019, 481, 307 356. K. Lee, J. Jung, S. Lee, H. Moon, J. Park, J. Power Sources, 2004, 129, 270 357. J. Wu, Z. Zhu, H. Zhang, H. Fu, H. Li, A. Wang, H. Zhang, Z. Hu, Electrochim. Acta, 2014, 146, 322 358. J. Long, H. Liu, Y. Xie, W. Tang, T. Fu, Y. Tang, L. Lu, X. Ding, X. Tang, Materials, 2018, 11, 1338 359. P. Liu, Y. Wang, H. Hao, S. Basu, X. Feng, Y. Xu, J. A. Boscoboinik, J. Nanda, J. Watt, D. Mitlin, Adv. Mater., 2020, 32, 2002908 360. Z. Zheng, Z. Wang, X. Song, S. Xun, V. Battaglia, G. Liu, ChemSusChem, 2014, 7, 2853 361. W. Yuan, Z. Yan, B. Pan, Z. Qiu, J. Luo, Z. Tan, Y. Tang, Z. Li, J. Alloy. Compd., 2017, 719, 353 362. G. Cho, J. Jeong, Y. Im, H. Choi, J. Noh, J. Kim, H. Ahn, T. Nam, K. Kim, Vacuum, 2016, 132, 130 363. S. Lee, E. Oh, J. Power Sources, 2013, 244, 721 364. K. Chen, Y. Yang, Y. Yi, X. Zheng, H. Tuan, J. Colloid. Interface. Sci., 2021, 598, 155 365. C. Busson, M. A. Blin, P. Guichard, P. Soudan, O. Crosnier, D. Guyomard, B. Lestriez, J. Power Sources, 2018, 406, 7 366. M. Goyal, N. Bhatnagar, J. Appl. Polym. Sci., 2022, 139, e52816 367. I. Cho, S. Gong, D. Song, Y. Lee, M. Ryou, Y. M. Lee, Sci. Rep., 2016, 6, 30945 368. K. Stokes, W. Boonen, H. Geaney, T. Kennedy, D. Borsa, K. M. Ryan, ACS Appl. Mater. Interfaces, 2019, 11, 19372 369. Y. Yang, X. Fan, G. Casillas, Z. Peng, G. Ruan, G. Wang, M. J. Yacaman, J. M. Tour, ACS Nano, 2014, 8, 3939 370. J. Chen, J. Xu, S. Zhou, N. Zhao, C. Wong, Nano Energy, 2016, 21, 145 371. S. Kim, S. Kim, K. Jung, J. Kim, J. Jang, Nano Energy, 2016, 24, 17 372. K. H. Oh, G. S. Gund, H. S. Park, J. Mater. Chem. A, 2018, 6, 22106 373. X. Shi, H. Wang, S. Ji, V. Linkov, F. Liu, R. Wang, Chem. Eng. J., 2019, 364, 320 374. H. Han, T. Song, E. Lee, A. Devadoss, Y. Jeon, J. Ha, Y. Chung, Y. Choi, Y. Jung, U. Paik, ACS Nano, 2012, 6, 8308 375. Y. F. Li, Y. H. Shi, S. G. Wang, J. H. Liu, J. Lin, Y. Xia, X. L. Wu, C. Y. Fan, J. P. Zhang, H. M. Xie, H. Z. Sun, Z. M. Su, Adv. Energy Mater., 2019, 9, 1803690 -
Rights and permissions
This is an open access article under the terms of the Creative Commons Attribution License, which permits use, distribution and reproduction in any medium, provided the original work is properly cited.
Figures(16)
Tables(2)
Information
Received Date:
04 December 2024
Revised Date:
15 January 2025
Accepted Date:
07 February 2025
Available Online:
14 February 2025
Article Metrics
Export File
Citation
Chen Pan, Shujing Chen, Qianlong Wang, Muhammad Tayyab, Lei Wang, Xian-Zhu Fu, Jing-Li Luo. Recent advances in current collectors for Li-ion batteries: materials, structures and interfacial properties[J]. Energy Lab. doi: 10.54227/elab.20240018
Format
Content
DownLoad:
-

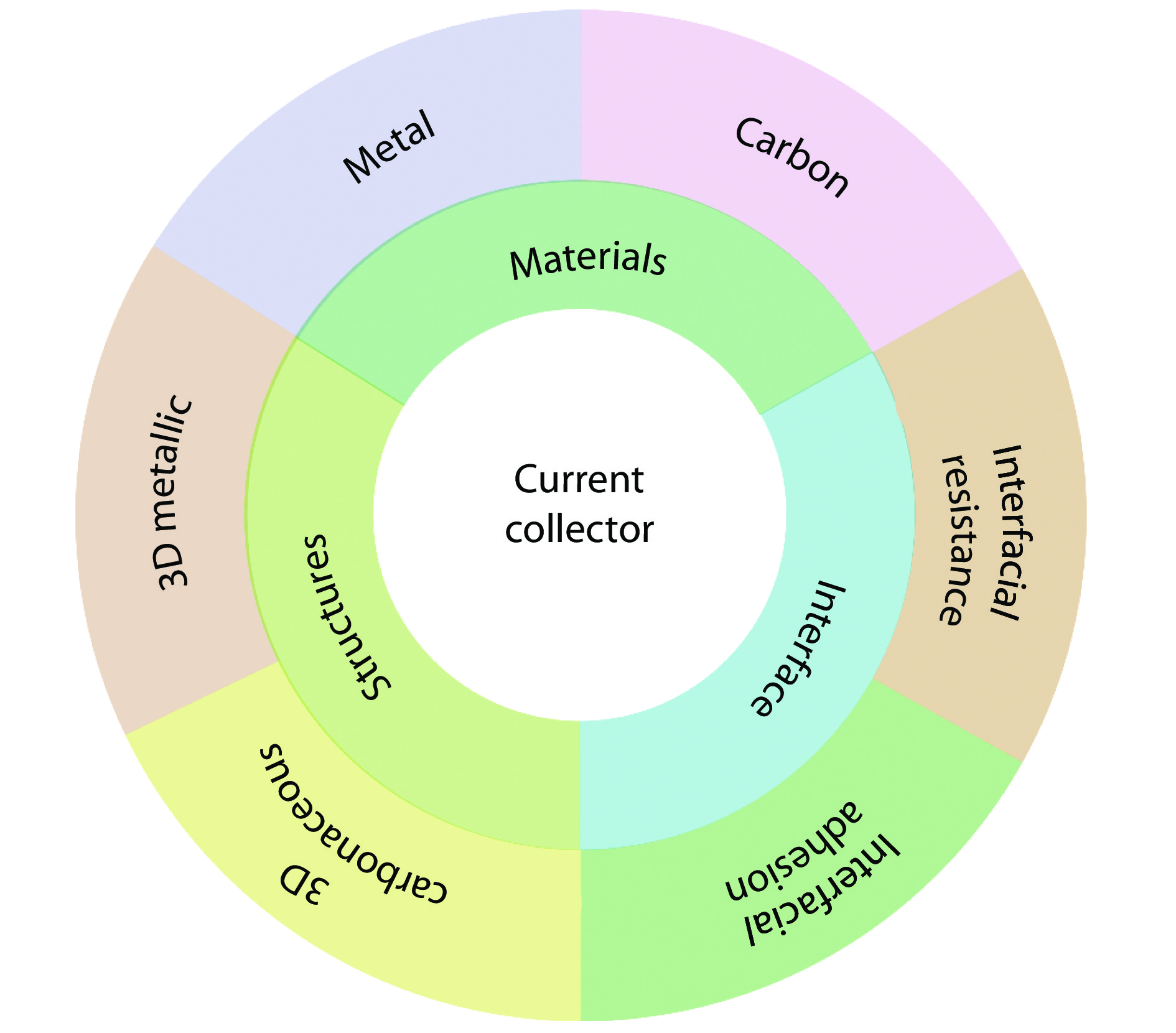

Figure 1.
Three elements of current collectors of LIBs: the types of materials, structures and interfacial properties with the electrode layer.
-

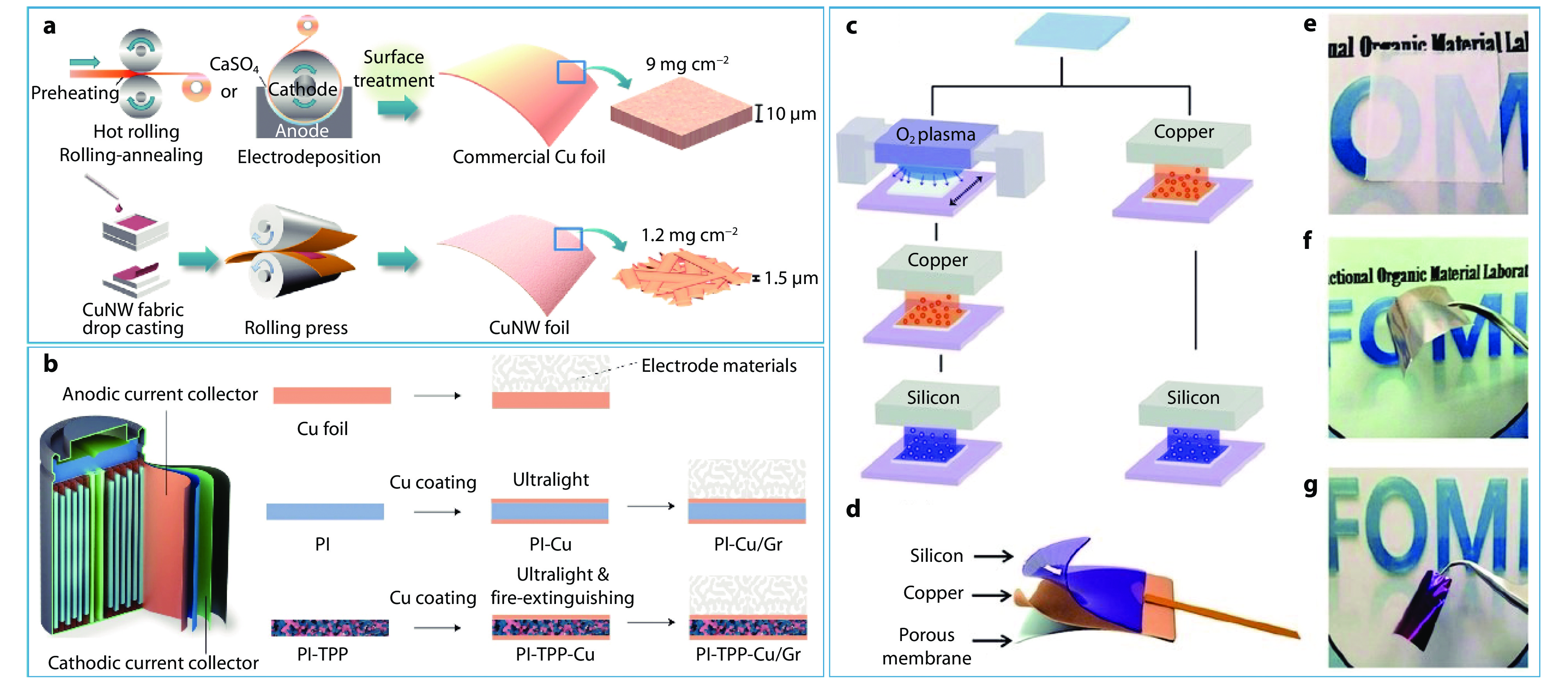

Figure 2.
a Schematic of the conventional Cu foil fabrication process (rolling-annealing or electrodeposition methods) and Cu nanowire foil fabrication process (rolling press).[33] Copyright 2017, Elsevier. b Schematic of the conventional pure Cu current collectors and the composite current collectors with Cu deposited on both sides of polyimide incorporating triphenyl phosphate (PI-TPP-Cu).[34] Copyright 2020, Nature Publishing Group. c Schematic of the fabrication process of a flexible current collector and electrode. d Illustration of an anode electrode. e Photograph of the porous separator. f Copper sputtered onto the separator. g Silicon sputtered onto the copper layer.[35] Copyright 2013, Wiley-VCH.
-

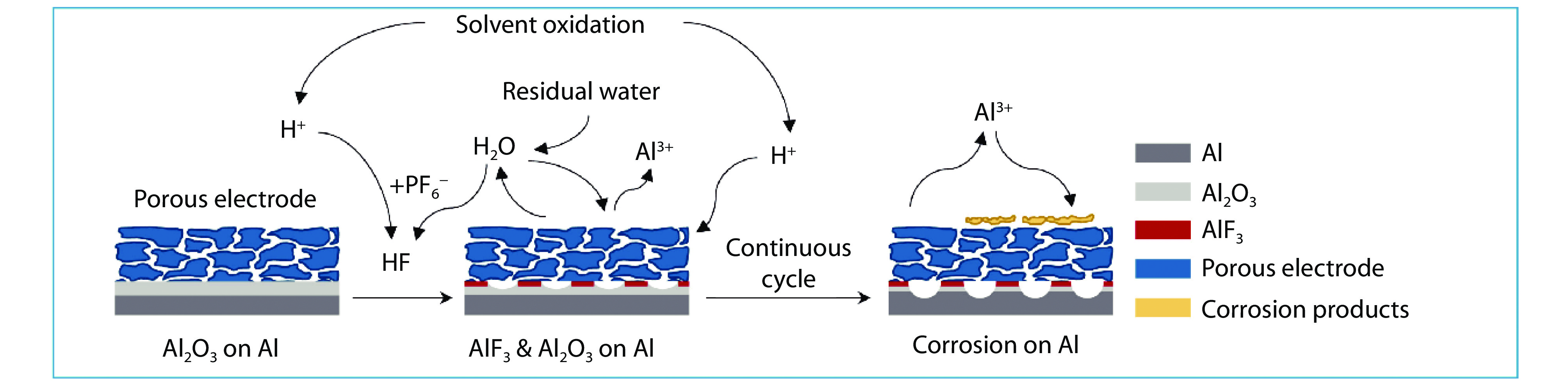

Figure 3.
Schematic illustration of the corrosion of Al foil current collectors in a LiPF6-based electrolyte.[59] Copyright 2018, Elsevier.
-

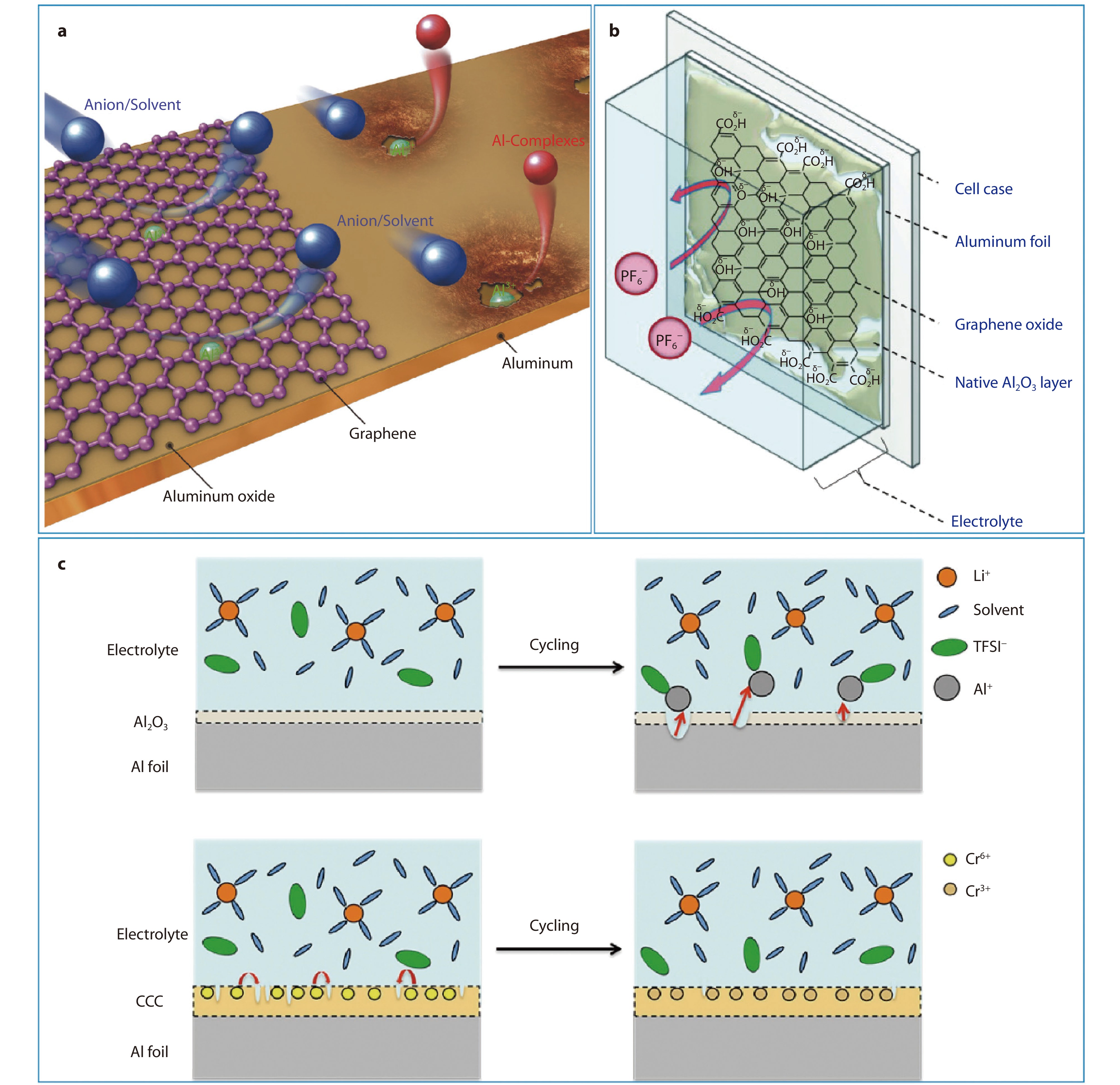

Figure 4.
a Schematic diagram showing a graphene-armored Al foil with enhanced anticorrosion proeperty as a current collector for LIBs.[56] Copyright 2017, Wiley-VCH. b Schematic representation of the corrosion resistance of GO-Al foil current collectors.[72] Copyright 2013, Elsevier. c Diagrams showing the corrosion mechanism of an Al foil and the corrosion resistance mechanism of CCC-Al foil in the imide salt-based electrolyte.[73] Copyright 2019, Elsevier.
-

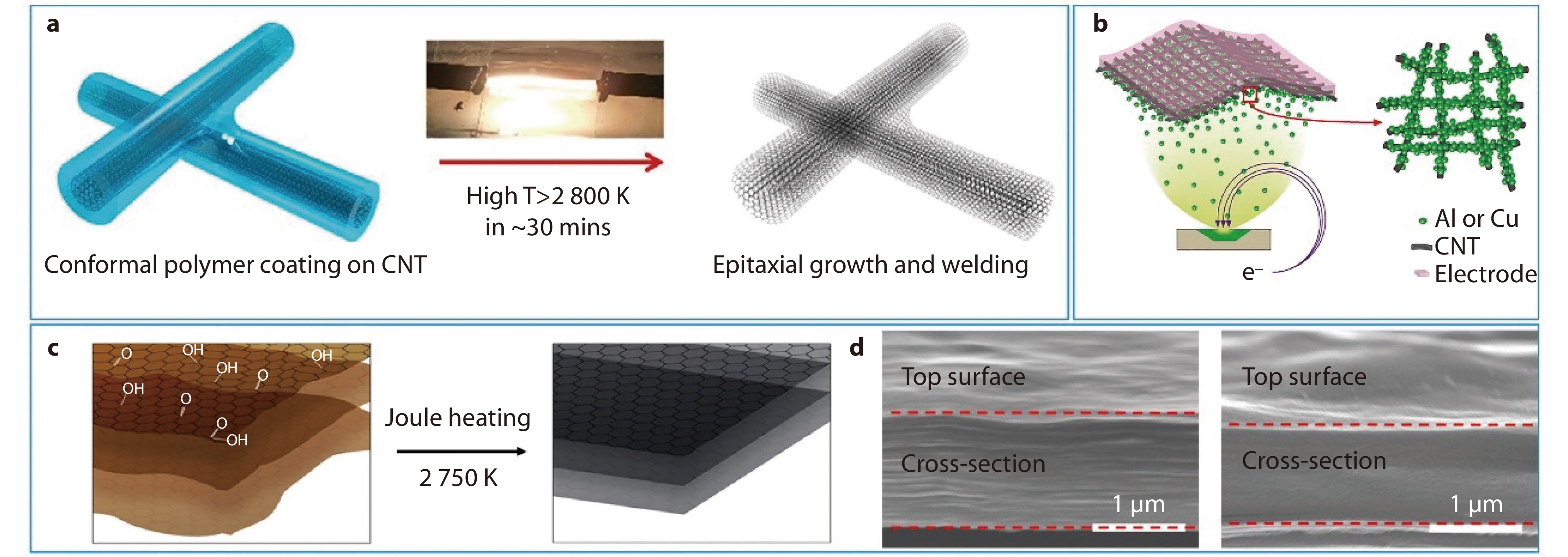

Figure 5.
a Epitaxial welding for the formation of interconnected W-CNTs. Diagrams of CNTs with a conformal polymer coating and after high-temperature heating. The inset is a photo of CNT/PAN film under high-temperature (
2800 K) Joule heating.[88] Copyright 2018, American Chemical Society. b Schematic of the surface modification of SACNT current collectors via electron beam evaporation.[90] Copyright 2017, Elsevier. c Schematic diagrams showing effective reduction of RGO by Joule heating at2750 K. d Cross-section SEM images of the RGO film before and after Joule heating.[89] Copyright 2016, American Chemical Society. -

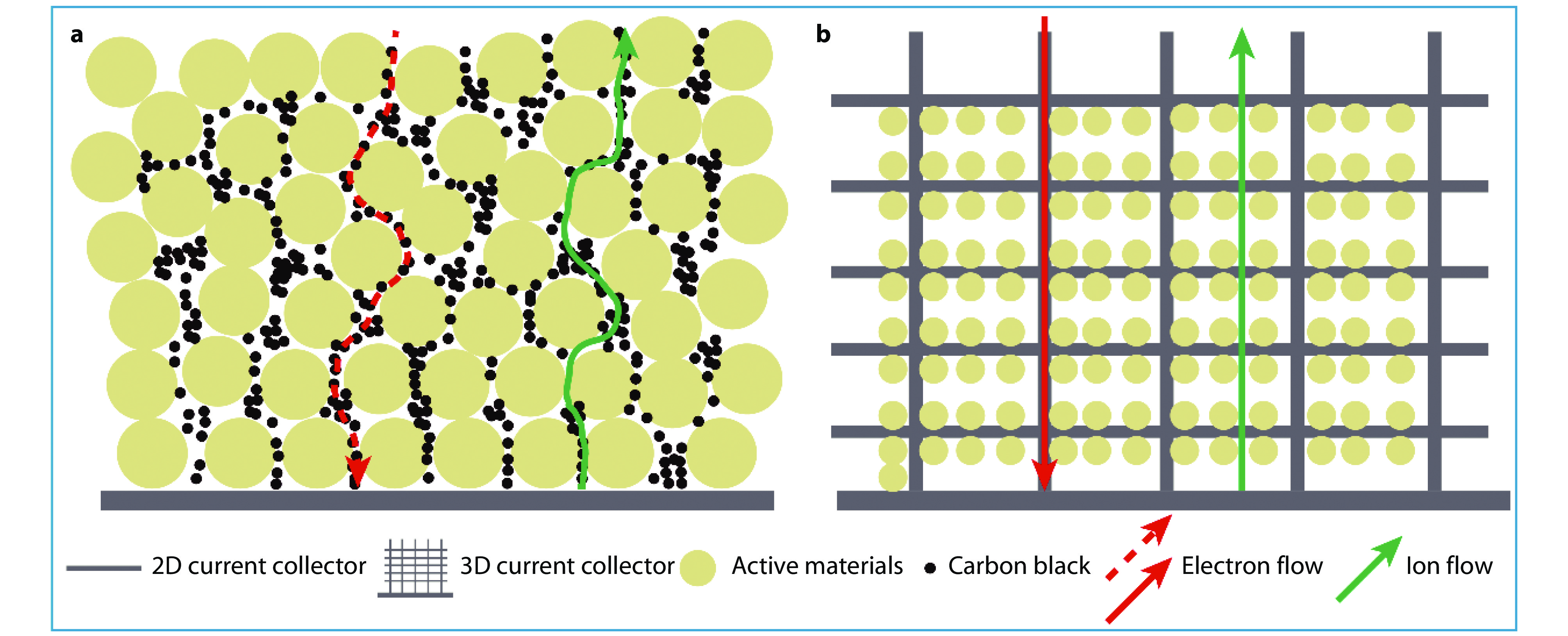

Figure 6.
Schematic illustration of the electron and ion transport pathways in a conventional electrode with a a 2D current collector and b a 3D current collector.
-

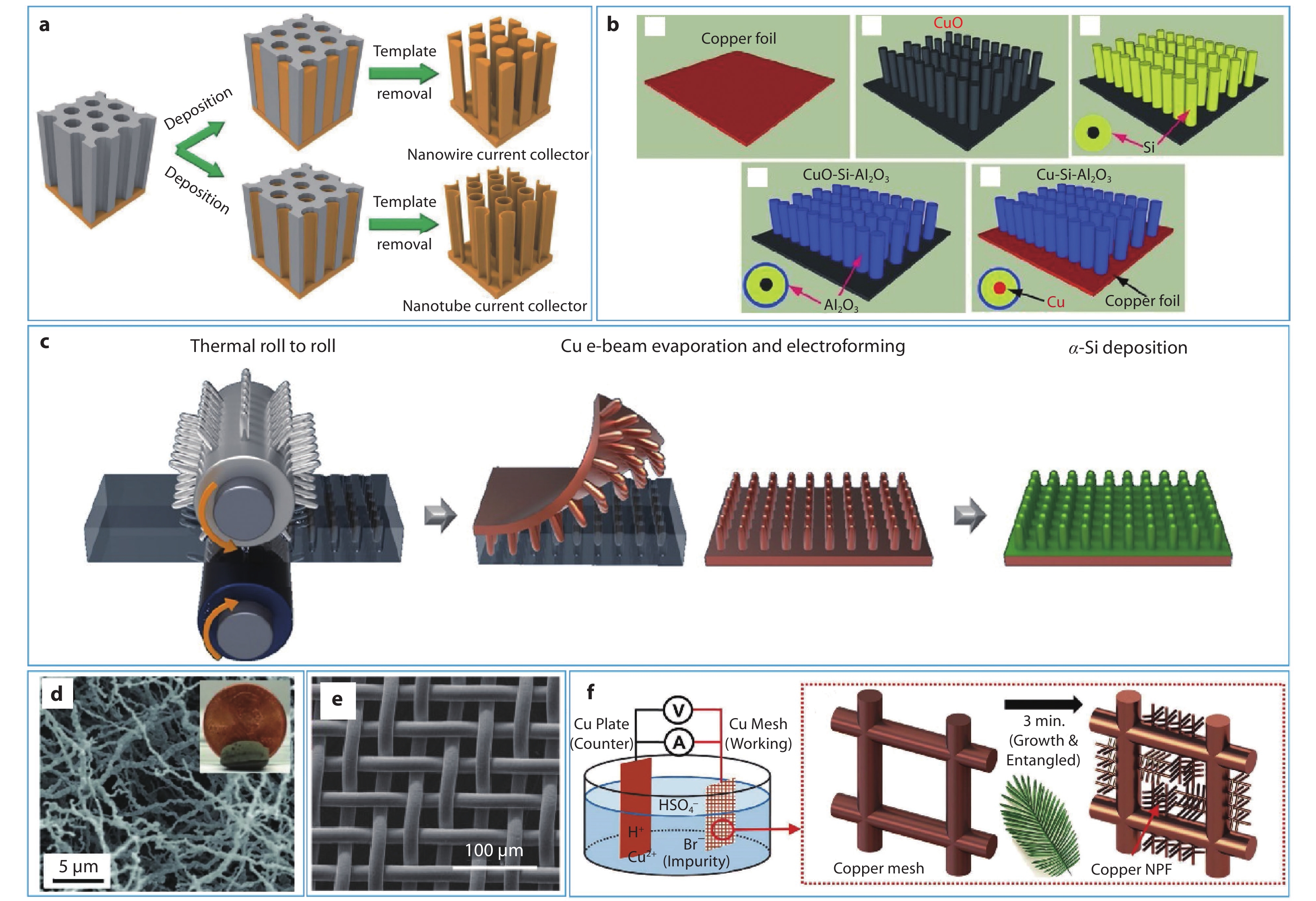

Figure 7.
a Schematic of the preparation process of metal NW/nanotube array current collectors using an AAO template. Reproduced with permission.[142] Copyright 2019, Wiley-VCH. b Schematic diagram showing the fabrication of Cu-Si and Cu-Si-Al2O3 nanocables.[116] Copyright 2011, Wiley-VCH. c Schematic of the fabrication of 3D amorphous Si on a Cu nanopillar electrode.[115] Copyright 2014, American Chemical Society. d SEM image of the assembly of Ni nanofibers. The inset shows the assembly of Ni nanofiber standing before a coin.[135] Copyright 2013, Wiley-VCH. e SEM image of the stainless-steel mesh.[143] Copyright 2014, Elsevier. f Schematic representation of the fabrication system configuration and electrochemical growth procedure of Cu NPFs on a Cu mesh substrate.[141] Copyright 2019, Wiley-VCH.
-

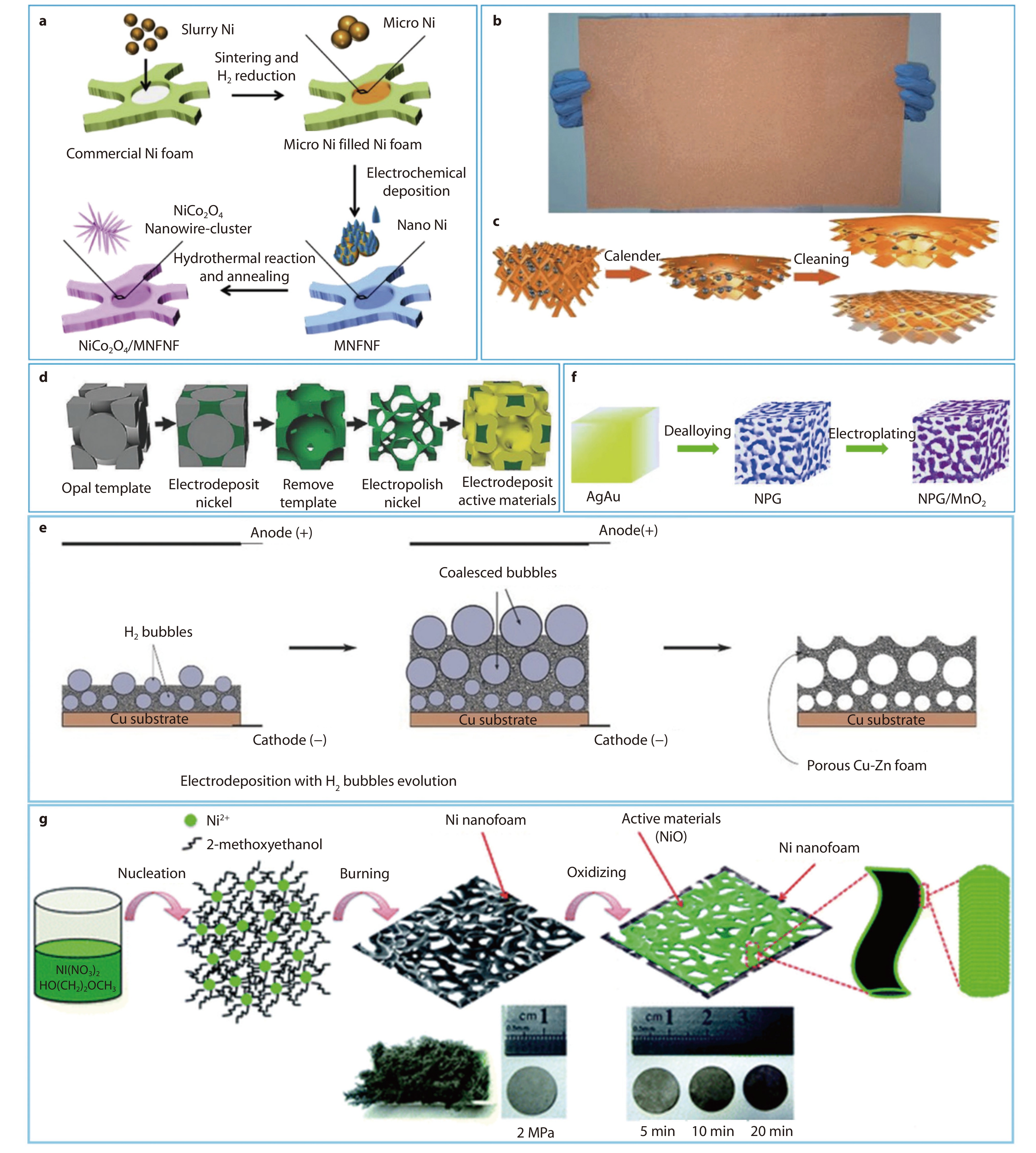

Figure 8.
a Schematic illustration of the fabrication process of NiCo2O4-loaded MNFNF electrode.[155] Copyright 2018, Elsevier. b Photo image of the copper foam used for electrode fabrication. c The steps of the integrated electrode for trapping silicon particles.[153] Copyright 2015, Royal Society of Chemistry. d Bicontinuous electrode fabrication process via a PS spheres template.[159] Copyright 2011, Nature Publishing Group. e Scheme illustrating the operating principles of the dynamic hydrogen bubble template method.[163] Copyright 2018, Wiley-VCH. f Fabrication of a nanoporous gold/MnO2 anode via bicontinuous electrode fabrication, that is, directly depositing MnO2 into nanoporous gold prepared by chemical dealloying from a Ag65Au35 alloy.[188] Copyright 2015, Royal Society of Chemistry. g Schematic diagram of the fabrication process of a Ni nanofoam and the Ni/NiO nanostructure.[184] Copyright 2013, Royal Society of Chemistry.
-

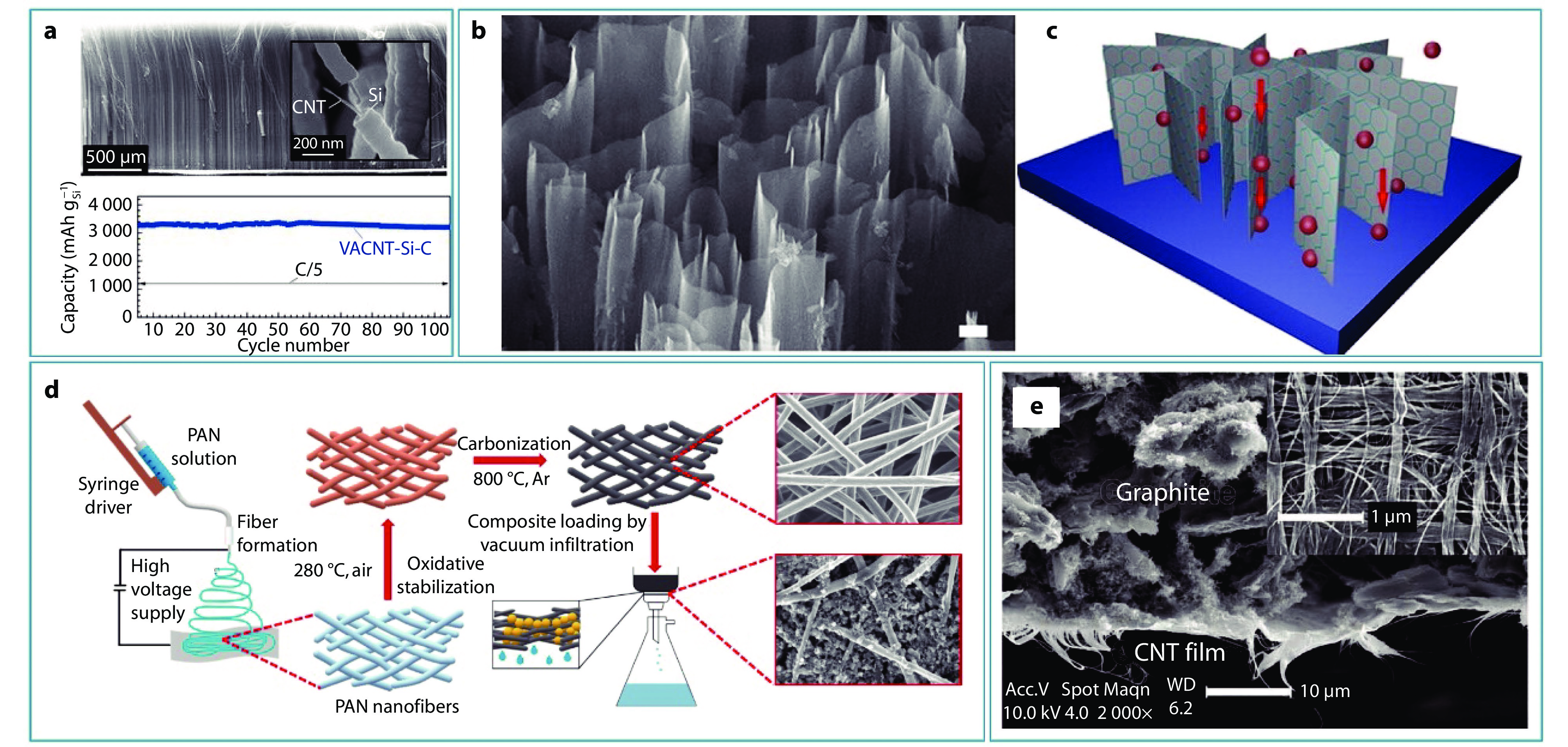

Figure 9.
a SEM image of a vertically aligned CNT (VACNT)-based electrode adhered onto a thin Cu foil. The discharge capacity vs. cycle number of a VACNT/Si/C electrode at 0.2 C.[189] Copyright 2012, Wiley-VCH. b Tilt-view SEM image (Scale bar: 100 nm) of vertically oriented graphene sheets. c Schematic illustration of the ion diffusion direction based on vertically-aligned graphene nanosheets current collectors.[201] Copyright 2016, American Chemical Society. d Scheme of carbon nanofiber fabrication and sulfur-based cathode preparation.[223] Copyright 2020, MDPI. e SEM images showing close contact at the graphite/SACNT interface and the top surface of a SACNT current collector.[235] Copyright 2013, Wiley-VCH.
-

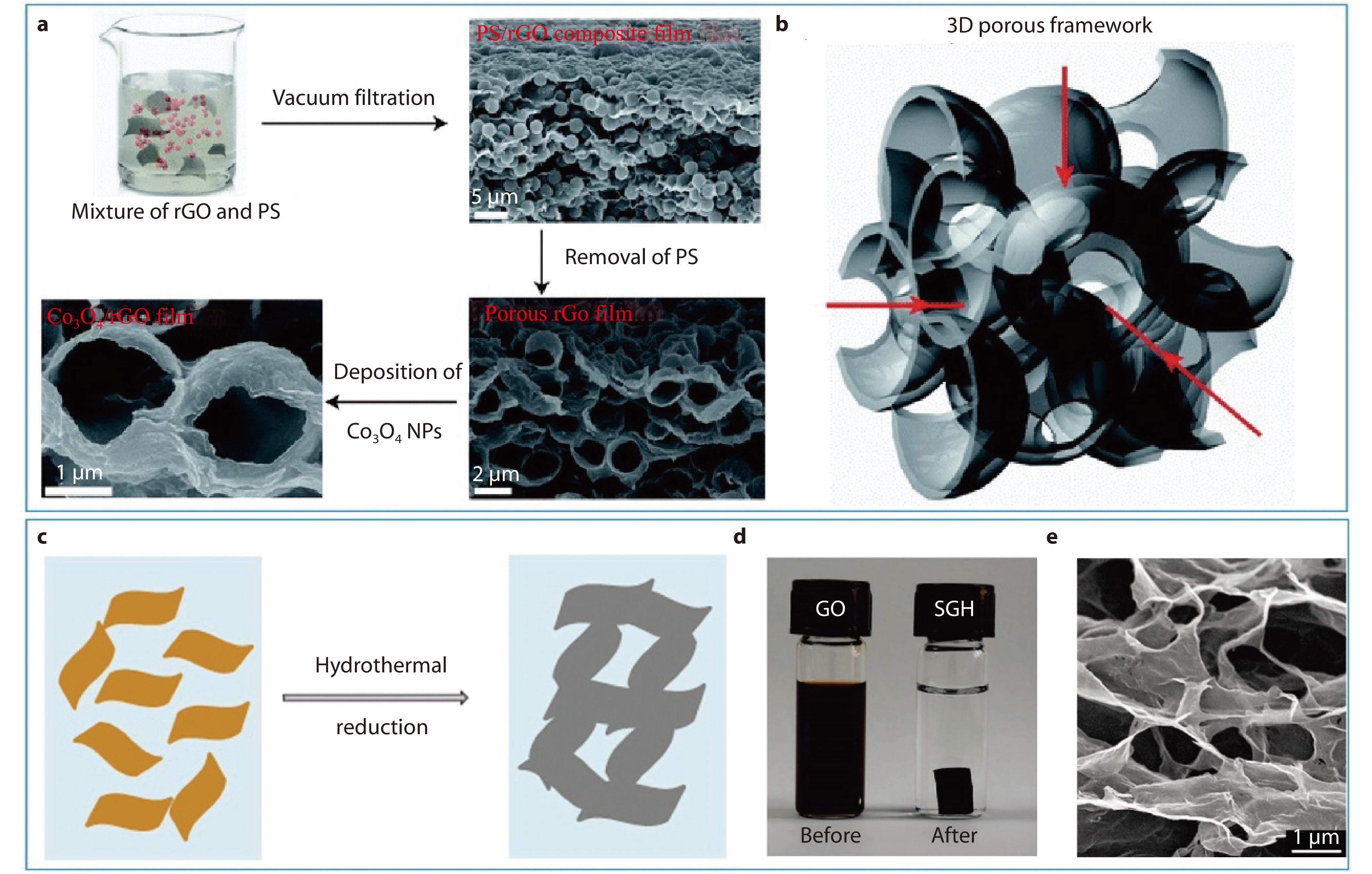

Figure 10.
a Schematic diagram and SEM image showing the synthetic procedure for fabricating porous rGO and Co3O4/rGO films. b Cross-sectional SEM images of 3D macroporous graphene film with different magnifications.[237] Copyright 2012, Royal Society of Chemistry. c Proposed formation mechanism for SGH. d Photograph of a homogeneous 2 mg/mL GO aqueous dispersion before and after hydrothermal reduction at 180 °C for 12 h. e SEM images with different magnifications of the SGH interior microstructures.[240] Copyright 2010, American Chemical Society.
-

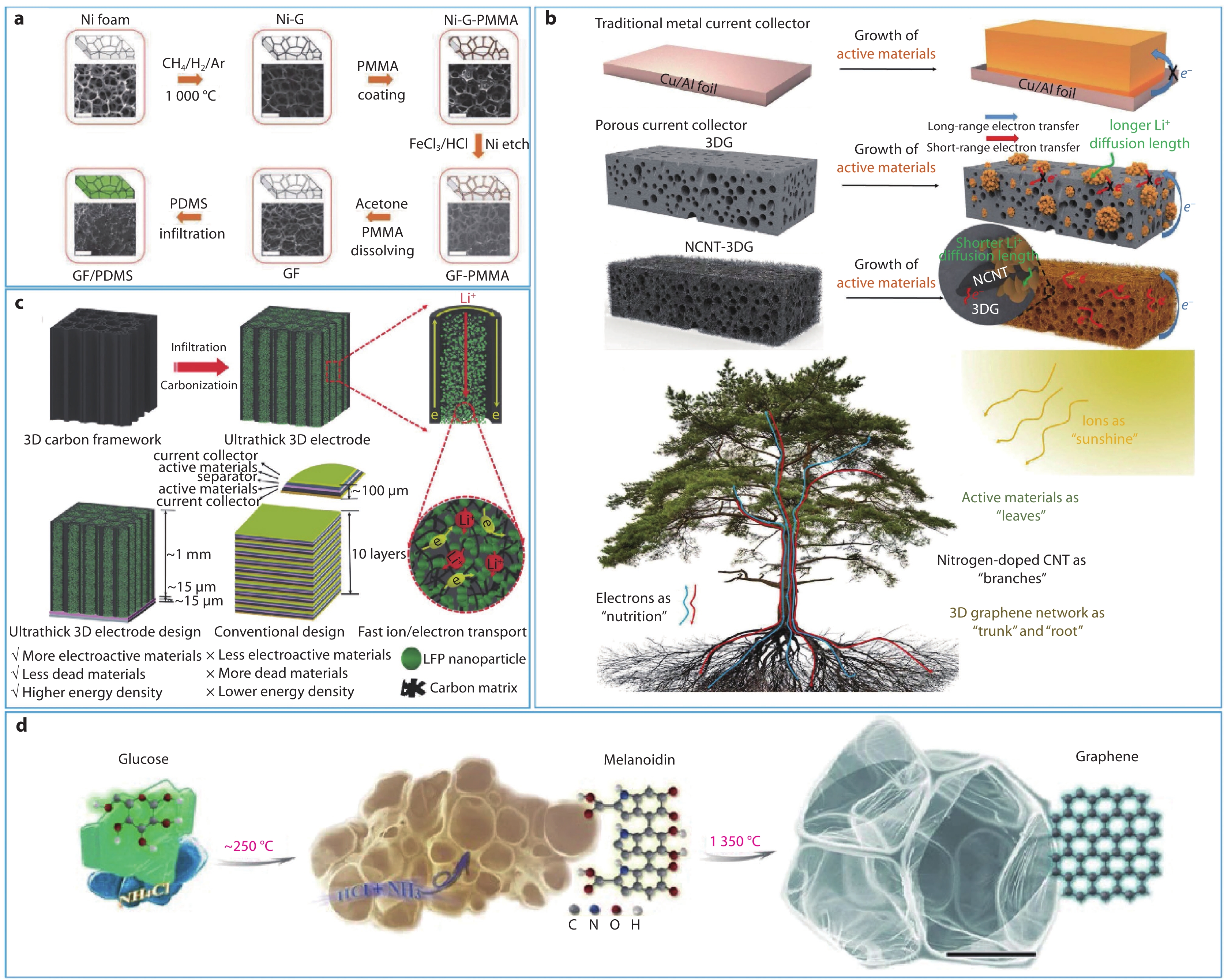

Figure 11.
a Schematics of the synthesis of CVD-GF.[246] Copyright 2011, Nature Publishing Group. b Schematic illustrating of different growth patterns of active materials on traditional metallic foil current collectors, 3DG, and an NCNT-3DG hybrid. Bioinspired structure of NCNT/3DG with active materials.[250] Copyright 2019, Elsevier. c Graphical illustration of the design concept of an ultrathick 3D electrode fabricated using a 3D conductive CF as current collector. Visual comparison between a battery with an ultrathick 3D electrode and a conventional battery.[258] Copyright 2017, Wiley-VCH. d SEM images (Scale bar: 50 μm) of glucose and NH4Cl that are subsequently transformed into melanoidin bubbles via a browning reaction and finally converted into SG- containing graphitic membranes and struts.[261] Copyright 2013, Nature Publishing Group.
-

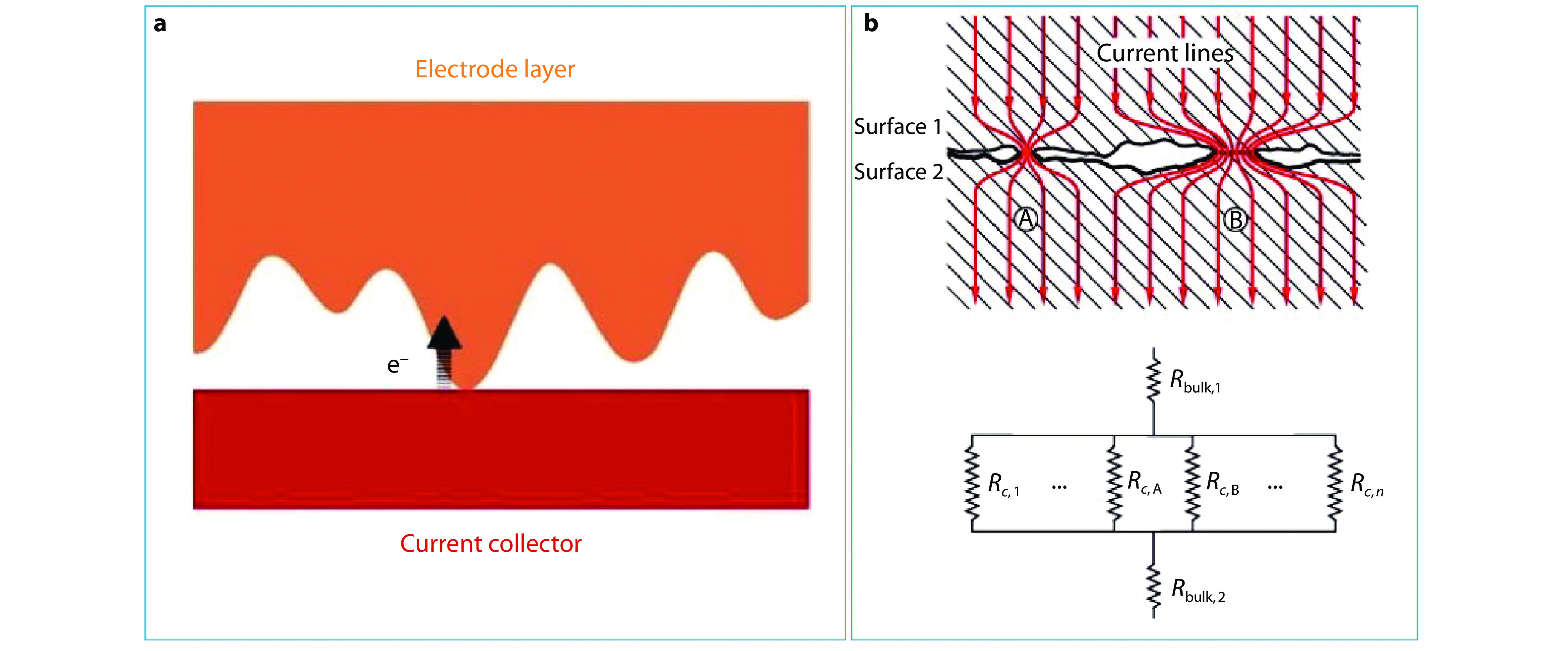

Figure 12.
a Schematic presentation of the electrical contact between a current collector and the electrode layer.[268] Copyright 2017, Elsevier. b Schematic presentation of conductive paths for electrical current in the contact interface with scattered contact spots. Constriction and spreading of current lines rising to contact resistances at the interface. The total resistance is the combination of bulk and contact resistances.[266] Copyright 2011, Elsevier.
-

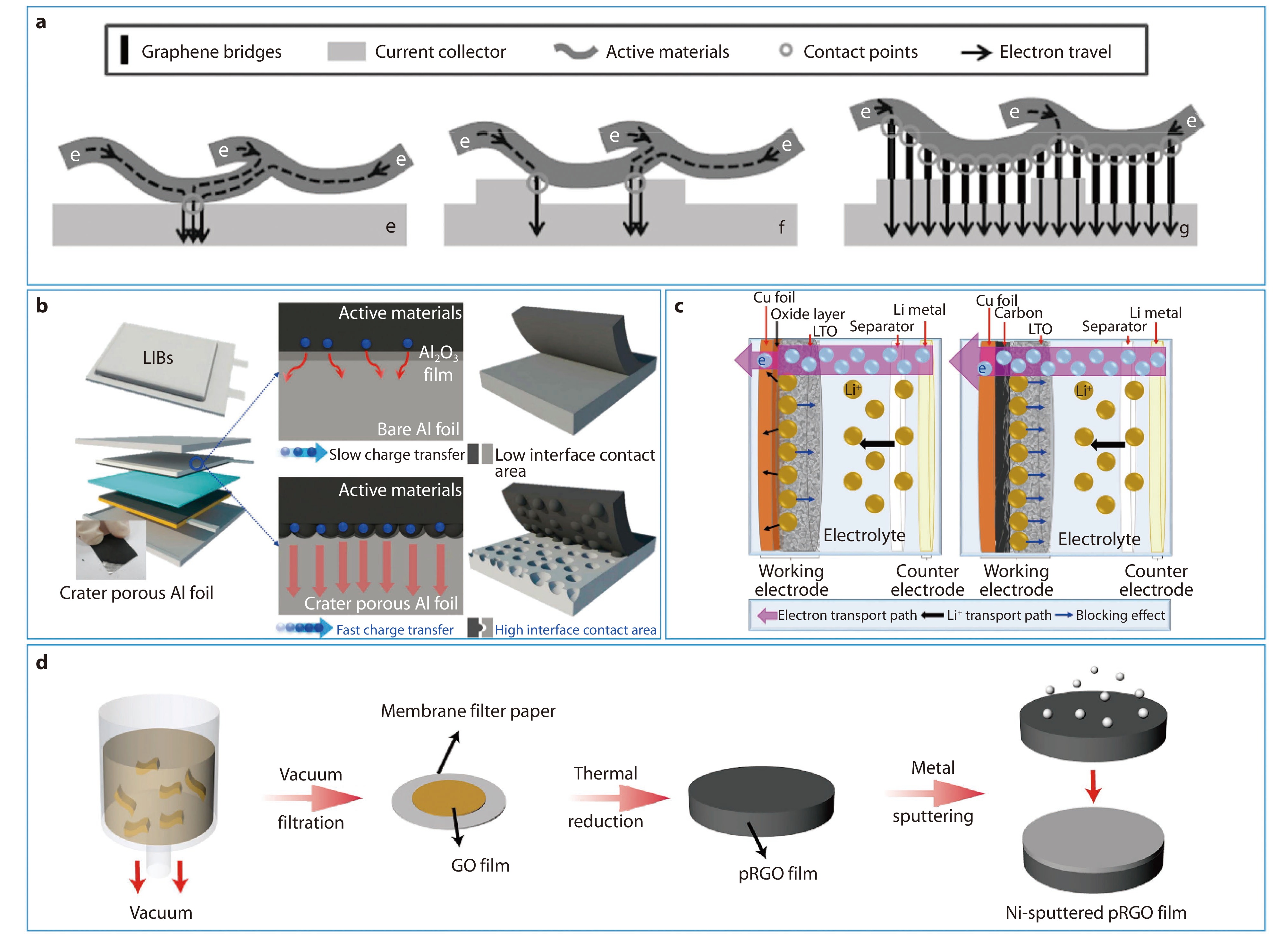

Figure 13.
a Schematic illustration of electron transport between active materials and Ni foil, Ni foam, and VG/Ni foam.[269] Copyright 2013, Wiley-VCH. b Schematic illustration of the two main effects on a cathode fabricated with a bare Al foil and porous crater Al foil for enhancing ultrafast cycling performances.[273] Copyright 2019, Elsevier. c Schematic illustration of electron collecting ability and ion transport mechanism: pure Cu foil-Li4Ti5O12 and the carbon film modified Cu foil-Li4Ti5O12.[291] Copyright 2020, Elsevier. d Schematic of the fabrication process of an RGO film with sputtered Ni.[305] Copyright 2016, Elsevier.
-

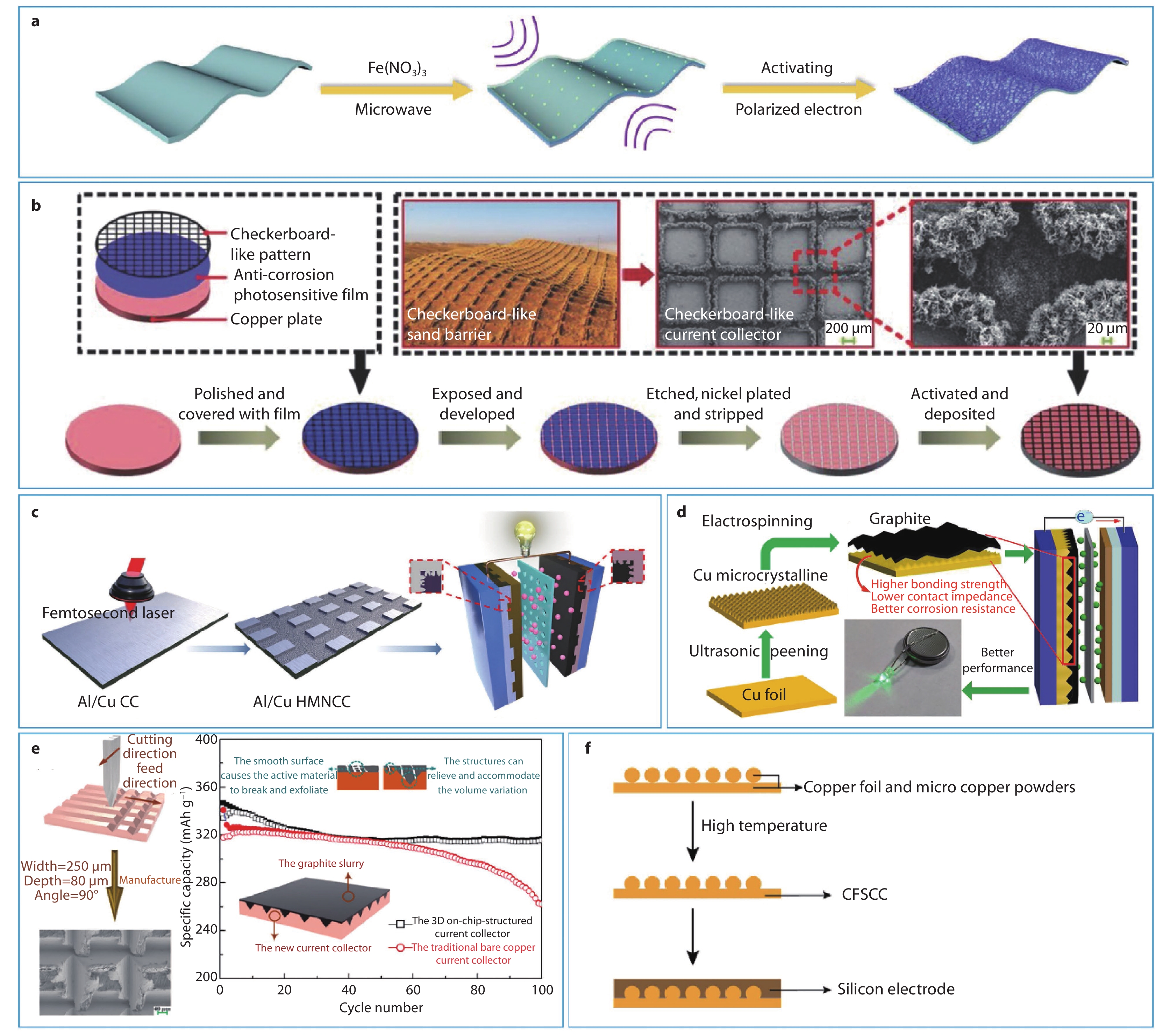

Figure 14.
a Schematic illustration for microwave-induced fabrication of porous Al foil.[337] Copyright 2020, American Chemical Society. b Schematic diagrams of the fabrication process of the checkerboard-like Cu@CNF current collector.[338] Copyright 2018, Wiley-VCH. c Schematic diagram of Al HMNCC and Cu HMNCC assembled into lithium-ion full battery.[348] Copyright 2021, Wiley-VCH. d Schematic illustration of surface treatment of Cu foil via ultrasonic peening and its electrode fabrication process.[350] Copyright 2019, Elsevier. e Schematic diagram of machining of a 3D on-chip-structured current collector, SEM images of surface structures on the Cu plate generated using the orthogonal ploughing/extrusion method, and the electrochemical properties of graphite anodes with two kinds of current collectors.[351] Copyright 2019, American Chemical Society. f Schematic illustration for the copper foil-powder sintering current collector and battery fabrication process.[358] Copyright 2018, MDPI.
-

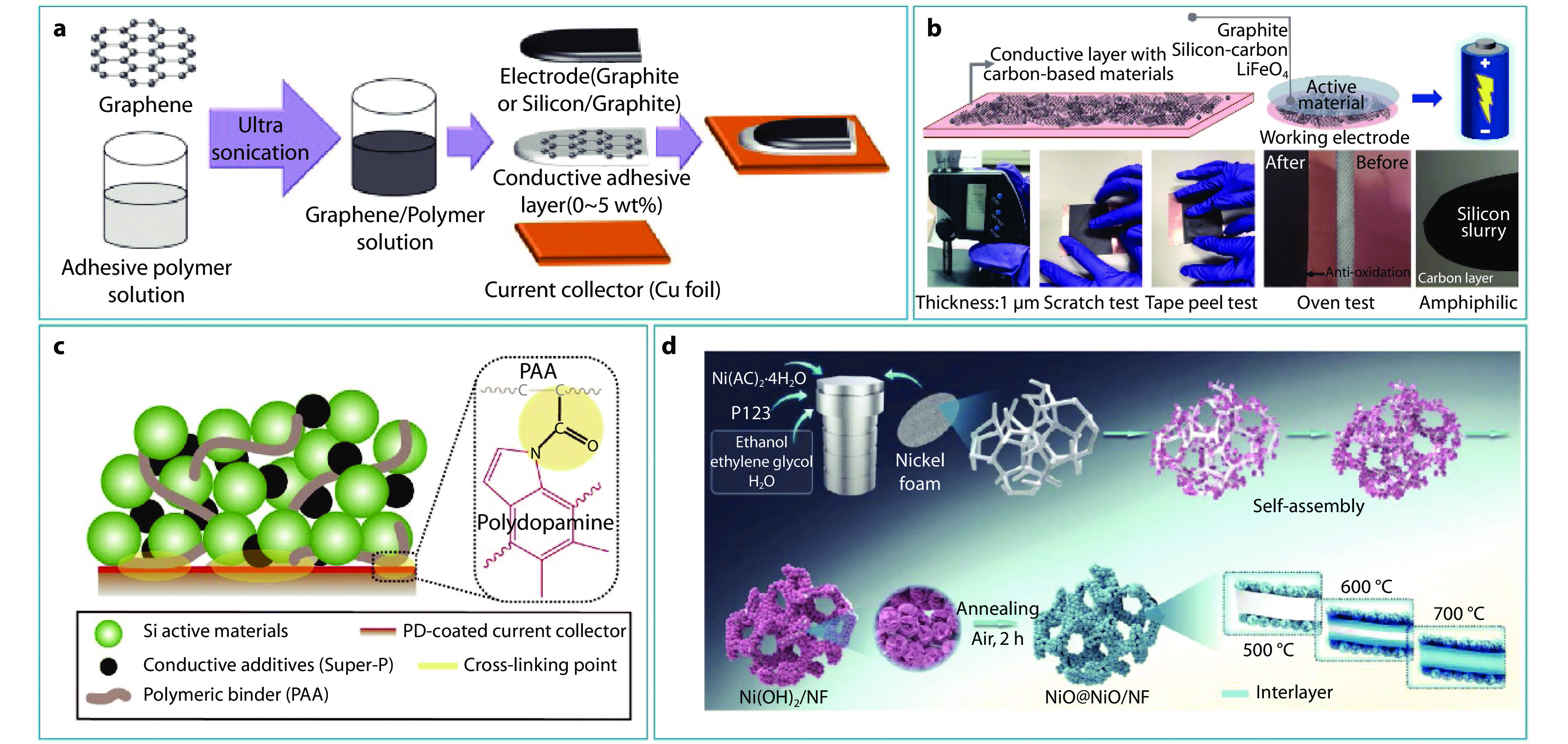

Figure 15.
a Fabrication procedure of a double-layered electrode containing a conductive adhesive layer.[363] Copyright 2013, Elsevier. b Schematic for a thin, conductive, non-peelable, amphiphilic and antioxidant current collector coating with enhanced LIB performance.[364] Copyright 2021, Elsevier. c Schematic for the covalent bonds between the PD-treated Cu and the PAA binder in the Si composite electrode.[367] Copyright 2016, Nature Publishing Group. d Schematic illustration of the synthesis of NiO@NiO/NF composite.[375] Copyright 2019, Wiley-VCH.
