Interfaces in monolithic perovskite/organic hybrid solar cells: progresses, prospects and challenges
-
Abstract
Combining the merits of the extended light-harvesting spectrum and simple solution-processed fabrication, multi-junction perovskite/ organic hybrid solar cells (POHSCs) undoubtedly show potential for practical energy conversion applications. The POHSCs can be divided into the perovskite/ organic tandem solar cells (POTSCs) and the integrated perovskite/ organic solar cells (IPOSCs), according to whether there is an interconnecting layer (ICL) between the sub-cells. However, the power conversion efficiency (PCE) of POHSCs lags behind other perovskite-based multi-junction devices due to the deficit of light harvesting and the severe carrier loss at the interface. The increased number of interfaces and the stringent requirements on interface properties make it a top priority to obtain efficient POHSCs. In this comprehensive review, we delve into the impact of interfaces on efficiency losses and provide a detailed overview of the latest advancements in interface engineering strategies for POHSCs. Furthermore, we explore the prospects and challenges that lie ahead for the development and optimization of these innovative solar cells.
-
Keywords:
- Interface engineering /
- wide-bandgap /
- perovskite /
- organic solar cells /
- tandem solar cells.
-
-
Author Biographies
Dr. Qian Cheng received her B. S. degree in chemistry from Huazhong University of Science and Technology in 2018 and obtained her Ph. D. degree in physical chemistry from University of Chinese Academy of Sciences under the supervision of Prof. Huiqiong Zhou in 2023. Dr. Cheng’s research interests focus on perovskite solar cells and their applications.
Dr. Shiqing Bi obtained a PhD degree at Beijing University of Chemical Technology in 2015. He has three years of postdoctoral research experience at Physical Chemistry, National Center for Nanoscience and Technology, China. Currently, he is an associate professor at the College of New Energy, Yulin University. His research focus areas are Perovskite solar cells, Dye-sensitized solar cells and Preparation and Application of New Energy Materials.
Dr. Huiqiong Zhou is a professor of Physical Chemistry at National Center for Nanoscience and Technology (NCNST), China. She received her B.Sc. and M.Sc. degrees from Wuhan University and obtained her Ph.D. in Physical Chemistry from NCNST. Then, she joined the group of Nobel Laureate Prof. A. J. Heeger at University of California Santa Barbara as a Postdoctoral Researcher from 2010 to 2014. She joined NCNST as a professor to start her independent research in 2015. Dr. Zhou has contributed to more than 140 SCI publications. She was awarded 100 Top Young Scientists Program from the Chinese Academy of Sciences (2015), and National Science Fund for Excellent Young Scholars (2019). Currently, she serves as a member of Editorial Board for ChemNanoMat journal, Editorial Advisory Board for Solar RRL journal, and also as a member of Young Advisory Board for ACTA PHYS-CHIM SIN and NanoResearch journals. Her research interests focus on solution-processed organic solar cells and perovskite solar cells. -
References
1. Y. Zheng, Y. Li, R. Zhuang, X. Wu, C. Tian, A. Sun, C. Chen, Y. Guo, Y. Hua, K. Meng, Energy Environ. Sci., 2024, 17, 1153 2. S. Li, Y. Jiang, J. Xu, D. Wang, Z. Ding, T. Zhu, B. Chen, Y. Yang, M. Wei, R. Guo, Y. Hou, Y. Chen, C. Sun, K. Wei, S. M. H. Qaid, H. Lu, H. Tan, D. Di, J. Chen, M. Grätzel, E. H. Sargent, M. Yuan, Nature, 2024, 635, 82 3. S. Liu, J. Li, W. Xiao, R. Chen, Z. Sun, Y. Zhang, X. Lei, S. Hu, M. Kober-Czerny, J. Wang, Nature, 2024, 632, 536 4. Z. Liang, Y. Zhang, H. Xu, W. Chen, B. Liu, J. Zhang, H. Zhang, Z. Wang, D. -H. Kang, J. Zeng, Nature, 2023, 624, 557 5. Q. Jiang, K. Zhu, Nat. Rev. Mater., 2024, 9, 399 6. H. Chen, C. Liu, J. Xu, A. Maxwell, W. Zhou, Y. Yang, Q. Zhou, A. S. Bati, H. Wan, Z. Wang, Science, 2024, 384, 189 7. W. Shockley, H. J. Queisser, J. Appl. Phys., 1961, 32, 510 8. A. De Vos, J. Phys. D: Appl. Phys., 1980, 13, 839 9. Z. Ying, X. Yang, X. Wang, J. Ye, Adv. Mater., 2024, 36, 2311501 10. K. O. Brinkmann, P. Wang, F. Lang, W. Li, X. Guo, F. Zimmermann, S. Olthof, D. Neher, Y. Hou, M. Stolterfoht, Nat. Rev. Mater., 2024, 9, 202 11. Y. Bao, T. Ma, Z. Ai, Y. Zhang, L. Shi, L. Qin, Z. Yang, G. Cao, C. Wang, X. Li, Nano Energy, 2024, 120, 109165 12. E. Köhnen, M. Jošt, A. B. Morales-Vilches, P. Tockhorn, A. Al-Ashouri, B. Macco, L. Kegelmann, L. Korte, B. Rech, R. Schlatmann, Sustainable Energy & Fuels, 2019, 3, 1995 13. Z. Zhang, Z. Li, L. Meng, S. Y. Lien, P. Gao, Adv. Funct. Mater., 2020, 30, 2001904 14. Z. Wang, Z. Song, Y. Yan, S. Liu, D. Yang, Adv. Sci., 2019, 6, 1801704 15. B. Xie, Z. Chen, L. Ying, F. Huang, Y. Cao, InfoMat, 2020, 2, 57 16. D.-H. Lim, J.-W. Ha, H. Choi, S. C. Yoon, B. R. Lee, S.-J. Ko, Nanoscale Adv., 2021, 3, 4306 17. D. Meng, R. Zheng, Y. Zhao, E. Zhang, L. Dou, Y. Yang, Adv. Mater., 2022, 34, 2107330 18. B. Chen, X. Zheng, Y. Bai, N. P. Padture, J. Huang, Adv. Energy Mater., 2017, 7, 1602400 19. M. Jošt, L. Kegelmann, L. Korte, S. Albrecht, Adv. Energy Mater., 2020, 10, 1904102 20. K. M. Yeom, S. U. Kim, M. Y. Woo, J. H. Noh, S. H. Im, Adv. Mater., 2020, 32, 2002228 21. Y. Shao, D. Zheng, L. Liu, J. Liu, M. Du, L. Peng, K. Wang, S. Liu, ACS Energy Lett., 2024, 9, 4892 22. R. Wang, M. Han, Y. Wang, J. Zhao, J. Zhang, Y. Ding, Y. Zhao, X. Zhang, G. Hou, J. Energy Chem., 2023, 83, 158 23. Q. Guo, C.-Y. Wang, T. Hayat, A. Alsaedi, J.-X. Yao, Z.-A. Tan, Rare Met., 2021, 40, 2763 24. Y. Liu, Y. Chen, Adv. Mater., 2020, 32, 1805843 25. P. Wang, Y. Zhao, T. Wang, Appl. Phys. Rev., 2020, 7, 031303 26. M. A. Green, E. D. Dunlop, M. Yoshita, N. Kopidakis, K. Bothe, G. Siefer, D. Hinken, M. Rauer, J. Hohl-Ebinger, X. Hao, Prog. Photovolt.: Res. Appl., 2024, 32, 425 27. M. A. Green, E. D. Dunlop, M. Yoshita, N. Kopidakis, K. Bothe, G. Siefer, X. Hao, J. Y. Jiang, Prog. Photovolt.: Res. Appl., 2025, 33, 3 28. Q. Zeng, L. Liu, Z. Xiao, F. Liu, Y. Hua, Y. Yuan, L. Ding, Sci. Bull., 2019, 64, 885 29. X. Jiang, S. Qin, L. Meng, G. He, J. Zhang, Y. Wang, Y. Zhu, T. Zou, Y. Gong, Z. Chen, Nature, 2024, 635, 860 30. X. Zhou, L. Zhang, J. Yu, D. Wang, C. Liu, S. Chen, Y. Li, Y. Li, M. Zhang, Y. Peng, Adv. Mater., 2022, 34, 2205809 31. J. H. Noh, S. H. Im, J. H. Heo, T. N. Mandal, S. I. Seok, Nano Lett., 2013, 13, 1764 32. G. E. Eperon, S. D. Stranks, C. Menelaou, M. B. Johnston, L. M. Herz, H. J. Snaith, Energy Environ. Sci., 2014, 7, 982 33. G. Yang, Z. Ni, Z. J. Yu, B. W. Larson, Z. Yu, B. Chen, A. Alasfour, X. Xiao, J. M. Luther, Z. C. Holman, Nat. Photonics, 2022, 16, 588 34. Y. Tong, A. Najar, L. Wang, L. Liu, M. Du, J. Yang, J. Li, K. Wang, S. Liu, Adv. Sci., 2022, 9, 2105085 35. R. He, S. Ren, C. Chen, Z. Yi, Y. Luo, H. Lai, W. Wang, G. Zeng, X. Hao, Y. Wang, Energy Environ. Sci., 2021, 14, 5723 36. L. Tao, J. Qiu, B. Sun, X. Wang, X. Ran, L. Song, W. Shi, Q. Zhong, P. Li, H. Zhang, J. Energy Chem., 2021, 61, 395 37. X. Y. Li, Z. Wu, Q. Yao, L. Y. Chen, W. Zeng, Q. Sun, F. R. Lin, A. K. Y. Jen, T. Shi, H. L. Yip, Small, 2025, 21, 2406824 38. L.-Y. Chen, Q. Sun, Y.-M. Xie, M.-K. Fung, Chem. Commun., 2025, 61, 1063 39. W. Chen, Y. Zhu, J. Xiu, G. Chen, H. Liang, S. Liu, H. Xue, E. Birgersson, J. W. Ho, X. Qin, Nat. Energy, 2022, 7, 229 40. S. Q. Sun, X. Xu, Q. Sun, Q. Yao, Y. Cai, X. Y. Li, Y. L. Xu, W. He, M. Zhu, X. Lv, Adv. Energy Mater., 2023, 13, 2204347 41. S. Gharibzadeh, B. Abdollahi Nejand, M. Jakoby, T. Abzieher, D. Hauschild, S. Moghadamzadeh, J. A. Schwenzer, P. Brenner, R. Schmager, A. A. Haghighirad, Adv. Energy Mater., 2019, 9, 1803699 42. L. Wang, Z. Yan, J. Qiu, J. Wu, C. Zhen, K. Tai, X. Jiang, S. Yang, Nano Energy, 2021, 90, 106537 43. C. Chen, Z. Song, C. Xiao, R. A. Awni, C. Yao, N. Shrestha, C. Li, S. S. Bista, Y. Zhang, L. Chen, ACS Energy Lett., 2020, 5, 2560 44. R. He, Z. Yi, Y. Luo, J. Luo, Q. Wei, H. Lai, H. Huang, B. Zou, G. Cui, W. Wang, C. Xiao, S. Ren, C. Chen, C. Wang, G. Xing, F. Fu, D. Zhao, Adv. Sci., 2022, 9, 2203210 45. S. You, X. Xi, X. Zhang, H. Wang, P. Gao, X. Ma, S. Bi, J. Zhang, H. Zhou, Z. Wei, J. Mater. Chem. A, 2020, 8, 17756 46. K. Wang, J. Zhou, X. Li, N. Ahmad, H. Xia, G. Wu, X. Zhang, B. Wang, D. Zhang, Y. Zou, Phys. Chem. Chem. Phys., 2020, 22, 17847 47. C. Chen, J. Liang, J. Zhang, X. Liu, X. Yin, H. Cui, H. Wang, C. Wang, Z. Li, J. Gong, Nano Energy, 2021, 90, 106608 48. R. Zhao, L. Xie, R. Zhuang, T. Wu, R. Zhao, L. Wang, L. Sun, Y. Hua, ACS Energy Lett., 2021, 6, 4209 49. Z. Guo, S. Zhao, N. Shibayama, A. Kumar Jena, I. Takei, T. Miyasaka, Adv. Funct. Mater., 2022, 32, 2207554 50. X. Gu, W. Xiang, Q. Tian, S. Liu, Angew. Chem. Int. Ed., 2021, 60, 23164 51. X. Wang, D. Zhang, B. Liu, X. Wu, X. Jiang, S. Zhang, Y. Wang, D. Gao, L. Wang, H. Wang, Adv. Mater., 2023, 35, 2305946 52. S. Jiang, R. Wang, M. Li, R. Yu, F. Wang, Z. a. Tan, Energy Environ. Sci., 2024, 17, 219 53. X. Li, W. Chen, S. Wang, G. Xu, S. Liu, Y. Li, Y. Li, Adv. Funct. Mater., 2021, 31, 2010696 54. G. You, L. Li, S. Wang, J. Cao, L. Yao, W. Cai, Z. Zhou, K. Li, Z. Lin, H. Zhen, Adv. Energy Mater., 2022, 12, 2102697 55. J. Tian, Q. Xue, X. Tang, Y. Chen, N. Li, Z. Hu, T. Shi, X. Wang, F. Huang, C. J. Brabec, Adv. Mater., 2019, 31, 1901152 56. A. Guerrero, A. Bou, G. Matt, O. Almora, T. Heumüller, G. Garcia-Belmonte, J. Bisquert, Y. Hou, C. Brabec, Adv. Energy Mater., 2018, 8, 1703376 57. D.-J. Xue, Y. Hou, S.-C. Liu, M. Wei, B. Chen, Z. Huang, Z. Li, B. Sun, A. H. Proppe, Y. Dong, Nat. Commun., 2020, 11, 1514 58. Y. Ding, C. Duan, Q. Guo, Y. Meng, Z. Wang, Z. Dai, E. Zhou, Nano Today, 2023, 53, 102046 59. H. Yang, W. Chen, Y. Yu, Y. Shen, H. Yang, X. Li, B. Zhang, H. Chen, Q. Cheng, Z. Zhang, Adv. Mater., 2023, 35, 2208604 60. X. Liu, D. Luo, Z. -H. Lu, J. S. Yun, M. Saliba, S. I. Seok, W. Zhang, Nat. Rev. Chem., 2023, 7, 462 61. F. Xu, M. Zhang, Z. Li, X. Yang, R. Zhu, Adv. Energy Mater., 2023, 13, 2203911 62. N. Porotnikova, D. Osinkin, J. Mater. Chem. A, 2024, 12, 2620 63. R. Li, H. Liu, Y. Jiao, S. Qin, J. Meng, J. Song, R. Yan, H. Su, H. Chen, Z. Shang, Acta Phys.-Chim. Sin., 2024, 40, 2311011 64. J. T. DuBose, P. V. Kamat, Acc. Mater. Res., 2022, 3, 761 65. S. K. Gautam, M. Kim, D. R. Miquita, J. E. Bourée, B. Geffroy, O. Plantevin, Adv. Funct. Mater., 2020, 30, 2002622 66. Z. Wang, L. Zeng, T. Zhu, H. Chen, B. Chen, D. J. Kubicki, A. Balvanz, C. Li, A. Maxwell, E. Ugur, Nature, 2023, 618, 74 67. Y. Bai, Z. Huang, X. Zhang, J. Lu, X. Niu, Z. He, C. Zhu, M. Xiao, Q. Song, X. Wei, Science, 2022, 378, 747 68. X. Guo, Z. Jia, S. Liu, R. Guo, F. Jiang, Y. Shi, Z. Dong, R. Luo, Y. -D. Wang, Z. Shi, Joule, 2024, 8, 2554 69. Z. Zhang, W. Chen, X. Jiang, J. Cao, H. Yang, H. Chen, F. Yang, Y. Shen, H. Yang, Q. Cheng, Nat. Energy, 2024, 9, 592 70. S. Wu, Y. Yan, J. Yin, K. Jiang, F. Li, Z. Zeng, S.-W. Tsang, A. K.-Y. Jen, Nat. Energy, 2024, 9, 411 71. H. Wu, T. Chen, Y. Li, S. Guan, L. Zhang, T. Chen, Y. Liu, Y. Jin, L. Zuo, W. Fu, J. Mater. Chem. A, 2023, 11, 6877 72. X. Xiao, J. Dai, Y. Fang, J. Zhao, X. Zheng, S. Tang, P. N. Rudd, X. C. Zeng, J. Huang, ACS Energy Lett., 2018, 3, 684 73. X. Li, K. Li, B. Wang, X. Zhang, S. Yue, Y. Li, Q. Chen, S. Li, T. Yue, H. Zhou, Adv. Funct. Mater., 2021, 31, 2107675 74. W. Zhu, S. Wang, X. Zhang, A. Wang, C. Wu, F. Hao, Small, 2022, 18, 2105783 75. F. Jiang, T. Liu, B. Luo, J. Tong, F. Qin, S. Xiong, Z. Li, Y. Zhou, J. Mater. Chem. A, 2016, 4, 1208 76. R. Sheng, M. T. Hörantner, Z. Wang, Y. Jiang, W. Zhang, A. Agosti, S. Huang, X. Hao, A. Ho-Baillie, M. Green, J. Phys. Chem. C, 2017, 121, 27256 77. J. Tong, Z. Song, D. H. Kim, X. Chen, C. Chen, A. F. Palmstrom, P. F. Ndione, M. O. Reese, S. P. Dunfield, O. G. Reid, Science, 2019, 364, 475 78. G. E. Eperon, T. Leijtens, K. A. Bush, R. Prasanna, T. Green, J. T.-W. Wang, D. P. McMeekin, G. Volonakis, R. L. Milot, R. May, Science, 2016, 354, 861 79. A. Rajagopal, Z. Yang, S. B. Jo, I. L. Braly, P. W. Liang, H. W. Hillhouse, A. K. Y. Jen, Adv. Mater., 2017, 29, 1702140 80. Z. Yang, Z. Yu, H. Wei, X. Xiao, Z. Ni, B. Chen, Y. Deng, S. N. Habisreutinger, X. Chen, K. Wang, Nat. Commun., 2019, 10, 1 81. C. Li, Z. S. Wang, H. L. Zhu, D. Zhang, J. Cheng, H. Lin, D. Ouyang, W. C. Choy, Adv. Energy Mater., 2018, 8, 1801954 82. R. Lin, K. Xiao, Z. Qin, Q. Han, C. Zhang, M. Wei, M. I. Saidaminov, Y. Gao, J. Xu, M. Xiao, Nat. Energy, 2019, 4, 864 83. M. Zhang, Z. Lin, Energy Environ. Sci., 2022, 15, 3152 84. C. H. Y. Ho, J. Kothari, X. Fu, F. So, Mater. Today Energy, 2021, 21, 100707 85. Z. Ma, Y. Dong, R. Wang, Z. Xu, M. Li, Z. a. Tan, Adv. Mater., 2023, 35, 2307502 86. C.-C. Chen, S.-H. Bae, W.-H. Chang, Z. Hong, G. Li, Q. Chen, H. Zhou, Y. Yang, Mater. Horiz., 2015, 2, 203 87. J. Liu, S. Lu, L. Zhu, X. Li, W. C. Choy, Nanoscale, 2016, 8, 3638 88. X. Wu, D. Zhang, B. Liu, Y. Wang, X. Wang, Q. Liu, D. Gao, N. Wang, B. Li, L. Wang, Z. Yu, X. Li, S. Xiao, N. Li, M. Stolterfoht, Y.-H. Lin, S. Yang, X. C. Zeng, Z. Zhu, Adv. Mater., 2024, 36, 2410692 89. K. Brinkmann, T. Becker, F. Zimmermann, C. Kreusel, T. Gahlmann, M. Theisen, T. Haeger, S. Olthof, C. Tückmantel, M. Günster, Nature, 2022, 604, 280 90. P. Wang, W. Li, O. J. Sandberg, C. Guo, R. Sun, H. Wang, D. Li, H. Zhang, S. Cheng, D. Liu, Nano Lett., 2021, 21, 7845 91. Y. Ding, Q. Guo, Y. Geng, Z. Dai, Z. Wang, Z. Chen, Q. Guo, Z. Zheng, Y. Li, E. Zhou, Nano Today, 2022, 46, 101586 92. C. Li, J. Zhou, J. Song, J. Xu, H. Zhang, X. Zhang, J. Guo, L. Zhu, D. Wei, G. Han, Nat. Energy, 2021, 6, 605 93. Y. Wang, X. Zhan, Adv. Energy Mater., 2016, 6, 1600414 94. R. Sun, J. Guo, C. Sun, T. Wang, Z. Luo, Z. Zhang, X. Jiao, W. Tang, C. Yang, Y. Li, Energy Environ. Sci., 2019, 12, 384 95. L. Zhu, M. Zhang, J. Xu, C. Li, J. Yan, G. Zhou, W. Zhong, T. Hao, J. Song, X. Xue, Nat. Mater., 2022, 21, 656 96. W. Gao, F. Qi, Z. Peng, F. R. Lin, K. Jiang, C. Zhong, W. Kaminsky, Z. Guan, C. S. Lee, T. J. Marks, Adv. Mater., 2022, 34, 2202089 97. F. Zhao, C. Wang, X. Zhan, Adv. Energy Mater., 2018, 8, 1703147 98. Y. Guo, D. Li, Y. Gao, C. Li, Acta Phys.-Chim. Sin., 2024, 40, 2306050 99. N. Y. Doumon, L. Yang, F. Rosei, Nano Energy, 2022, 94, 106915 100. J. W. Jung, F. Liu, T. P. Russell, W. H. Jo, Energy Environ. Sci., 2012, 5, 6857 101. H. Yao, Y. Cui, R. Yu, B. Gao, H. Zhang, J. Hou, Angew. Chem. Int. Ed., 2017, 56, 3045 102. S. Xie, R. Xia, Z. Chen, J. Tian, L. Yan, M. Ren, Z. Li, G. Zhang, Q. Xue, H.-L. Yip, Nano Energy, 2020, 78, 105238 103. Y. M. Xie, Q. Yao, Z. Zeng, Q. Xue, T. Niu, R. Xia, Y. Cheng, F. Lin, S. W. Tsang, A. K. Y. Jen, Adv. Funct. Mater., 2022, 32, 2112126 104. W. Liu, Y. Duan, Z. Zhang, J. Gao, S. Li, Z. Fink, X. Wu, Z. Ma, A. Saeki, T. P. Russell, ACS Energy Lett., 2023, 8, 4514 105. X. Cui, G. Xie, Y. Liu, X. Xie, H. Zhang, H. Li, P. Cheng, G. Lu, L. Qiu, Z. Bo, Adv. Mater., 2024, 36, 2408646 106. C. Zuo, L. Ding, J. Mater. Chem. A, 2015, 3, 9063 107. Y. Liu, Z. Hong, Q. Chen, W. Chang, H. Zhou, T.-B. Song, E. Young, Y. Yang, J. You, G. Li, Nano Lett., 2015, 15, 662 108. W. Chen, H. Sun, Q. Hu, A. B. Djurišić, T. P. Russell, X. Guo, Z. He, ACS Energy Lett., 2019, 4, 2535 109. C. I. Chen, S. Wu, Y. A. Lu, C. C. Lee, K. C. Ho, Z. Zhu, W. C. Chen, C. C. Chueh, Adv. Sci., 2019, 6, 1901714 110. Y. Wu, Y. Gao, X. Zhuang, Z. Shi, W. Bi, S. Liu, Z. Song, C. Chen, X. Bai, L. Xu, Nano Energy, 2020, 77, 105181 111. Y. Wu, N. Ding, Y. Zhang, B. Liu, X. Zhuang, S. Liu, Z. Nie, X. Bai, B. Dong, L. Xu, Adv. Energy Mater., 2022, 12, 2200005 112. Z. Shi, D. Zhou, X. Zhuang, S. Liu, R. Sun, W. Xu, L. Liu, H. Song, Adv. Funct. Mater., 2022, 32, 2203873 113. Z. Cai, X. Ma, J. Cai, Z. Zhan, D. Lin, K. Chen, P. Liu, W. Xie, J. Power Sources, 2022, 541, 231665 114. T. Wang, Y. Dong, J. Guo, Q. Li, Z. Chang, M. Chen, R. Wang, Y. Liu, Adv. Funct. Mater., 2021, 31, 2107129 -
Rights and permissions
This is an open access article under the terms of the Creative Commons Attribution License, which permits use, distribution and reproduction in any medium, provided the original work is properly cited.
Figures(11)
Information
Article Metrics
Export File
Citation
Qian Cheng, Shiqing Bi, Hong Zhang, Yuan Zhang, Huiqiong Zhou. Interfaces in monolithic perovskite/organic hybrid solar cells: progresses, prospects and challenges[J]. Energy Lab, 2025, 3(2): 250001. doi: 10.54227/elab.20250001
Format
Content
DownLoad:
-
Figure 1.

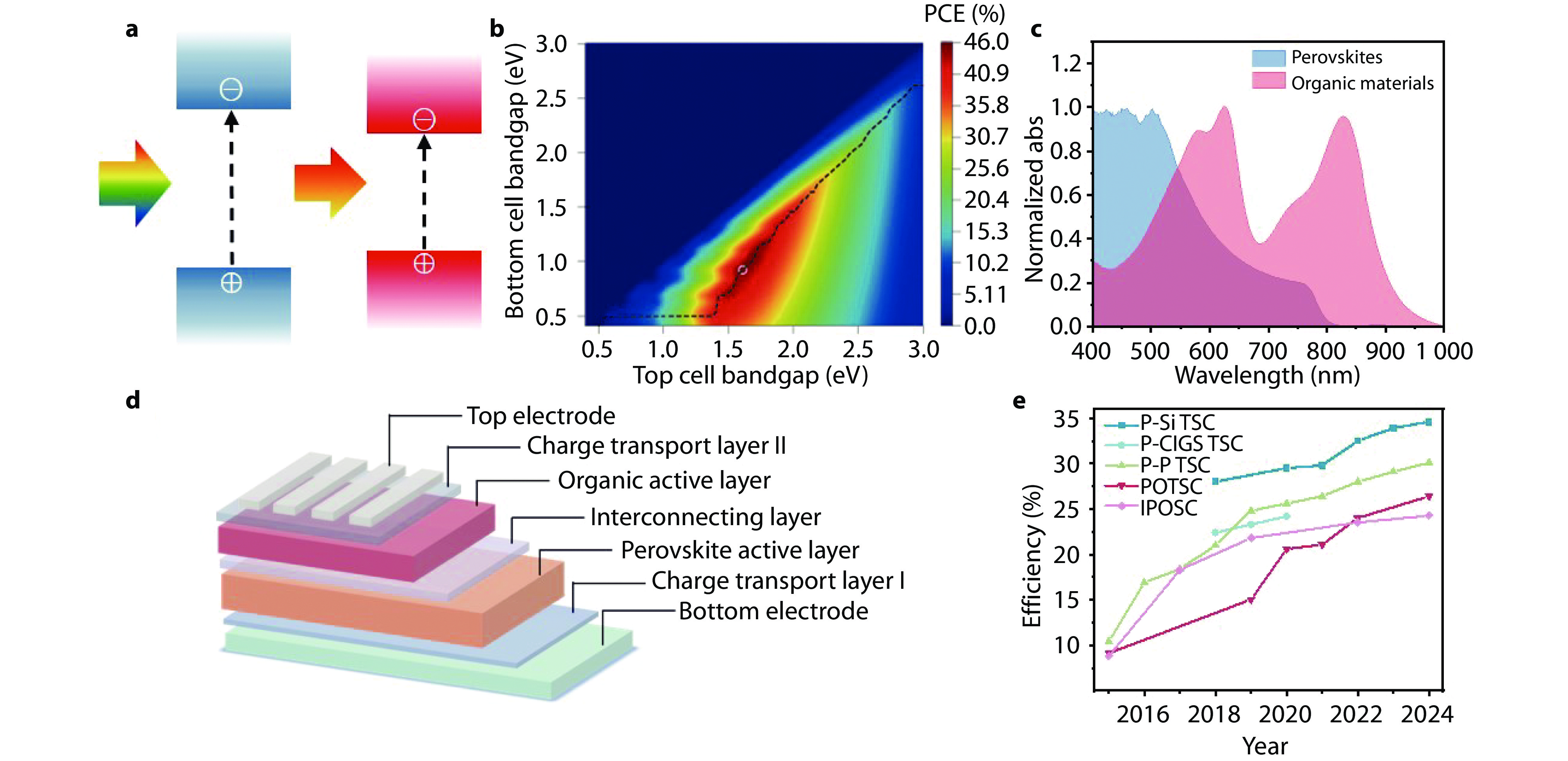

a Schematic illustration of light absorption in multi-junction solar cells. b Shockley-Queisser limit of two-junction solar cells with 2-terminal structure.[8] c Absorption spectra of perovskite and NIR organic films. d Device structures of POTSCs. e The efficiency evolution of perovskite-based double-junction solar cells.[26–27]
-
Figure 2.

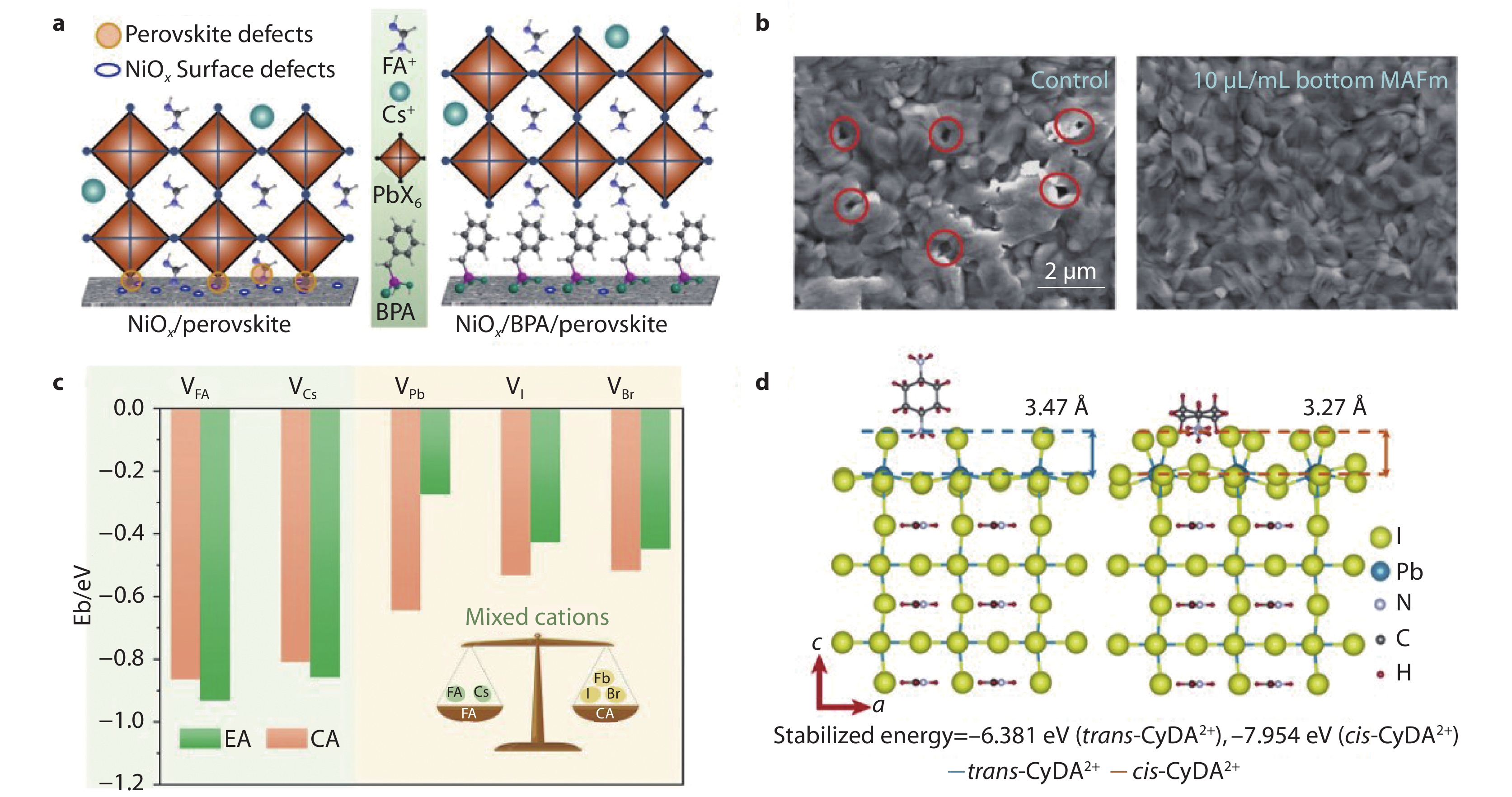

a Schematic illustration of BPA passivation of NiOx HTLs.[39] b SEM images of CsPbI2Br films without and with 10 µL/mL bottom MAFm modification.[40] c Absorption energy of CA and EA on different types of defects.[51] d Calculated structures illustrating the passivation of perovskite surface by a trans-CyDA2+ or cis-CyDA2+ cation.[29]
-
Figure 3.

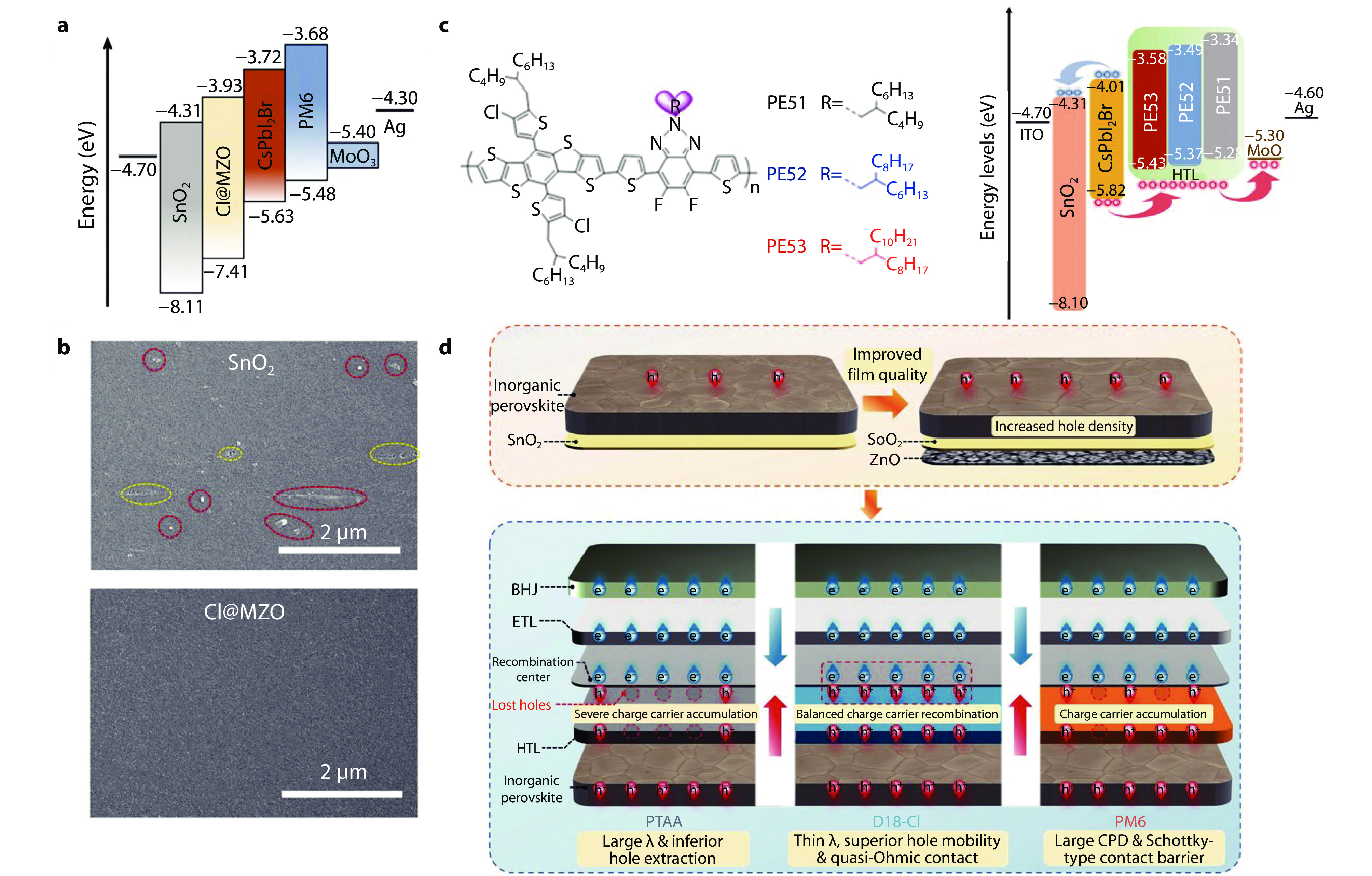

a Energy band alignment in WBG PSC with different ETLs. b SEM images of SnO2 and Cl@MZO films.[52] c Molecule structure and energy level of PE51, PE52, and PE53.[58] d The combination effects of modified ETLs and HTLs.[59]
-
Figure 4.

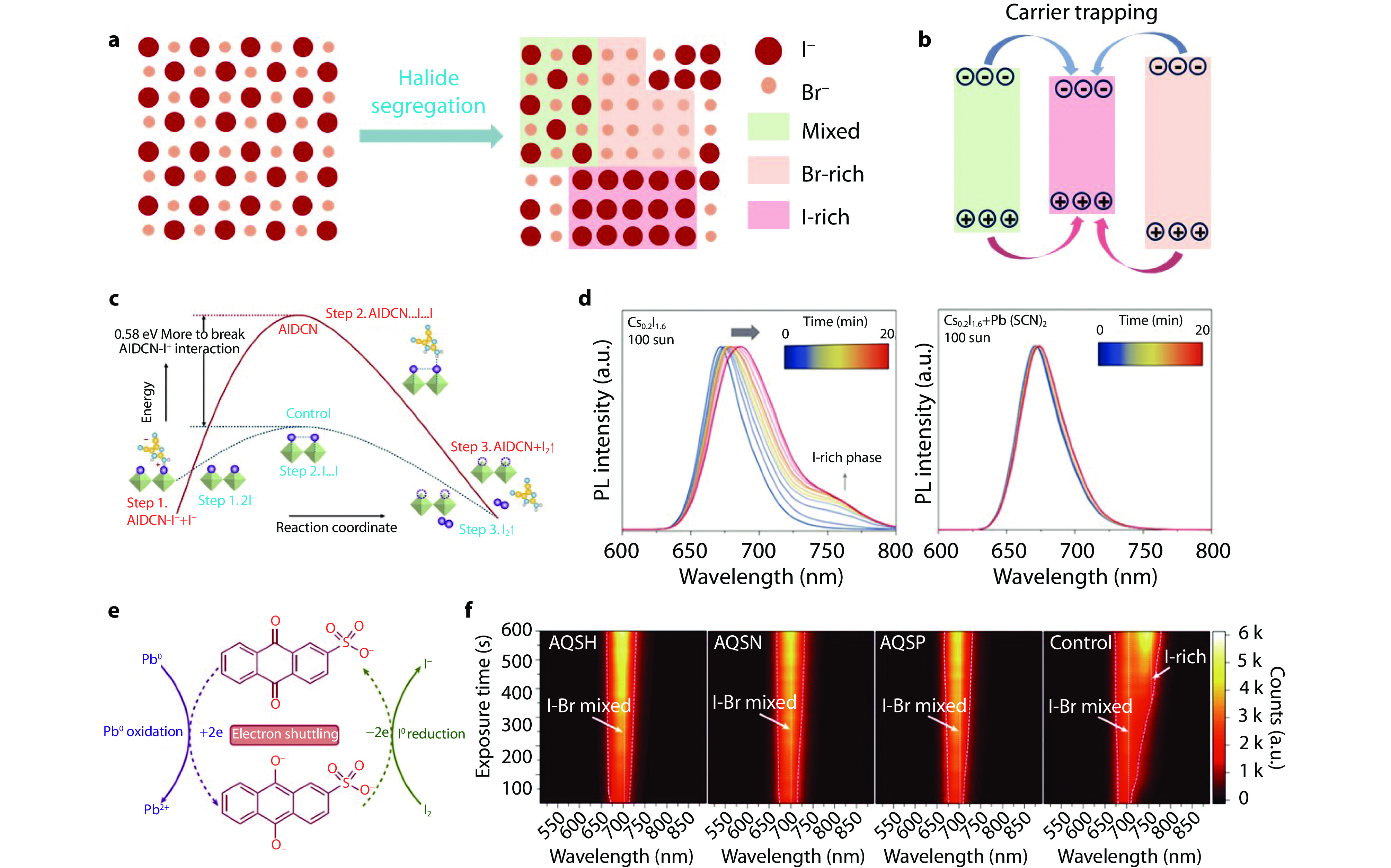

Schematic illustration of a phase segregation and b the carrier trapping effects. c Energy diagram of iodine escape process in control perovskite (in blue) and perovskite with AIDCN (in red).[68] d PL spectra of perovskites with and without Pb(SCN)2 under 100 sun illumination.[69] e The redox reaction between AQS and defects. f Time-dependent photoluminescence spectra.[70]
-
Figure 5.

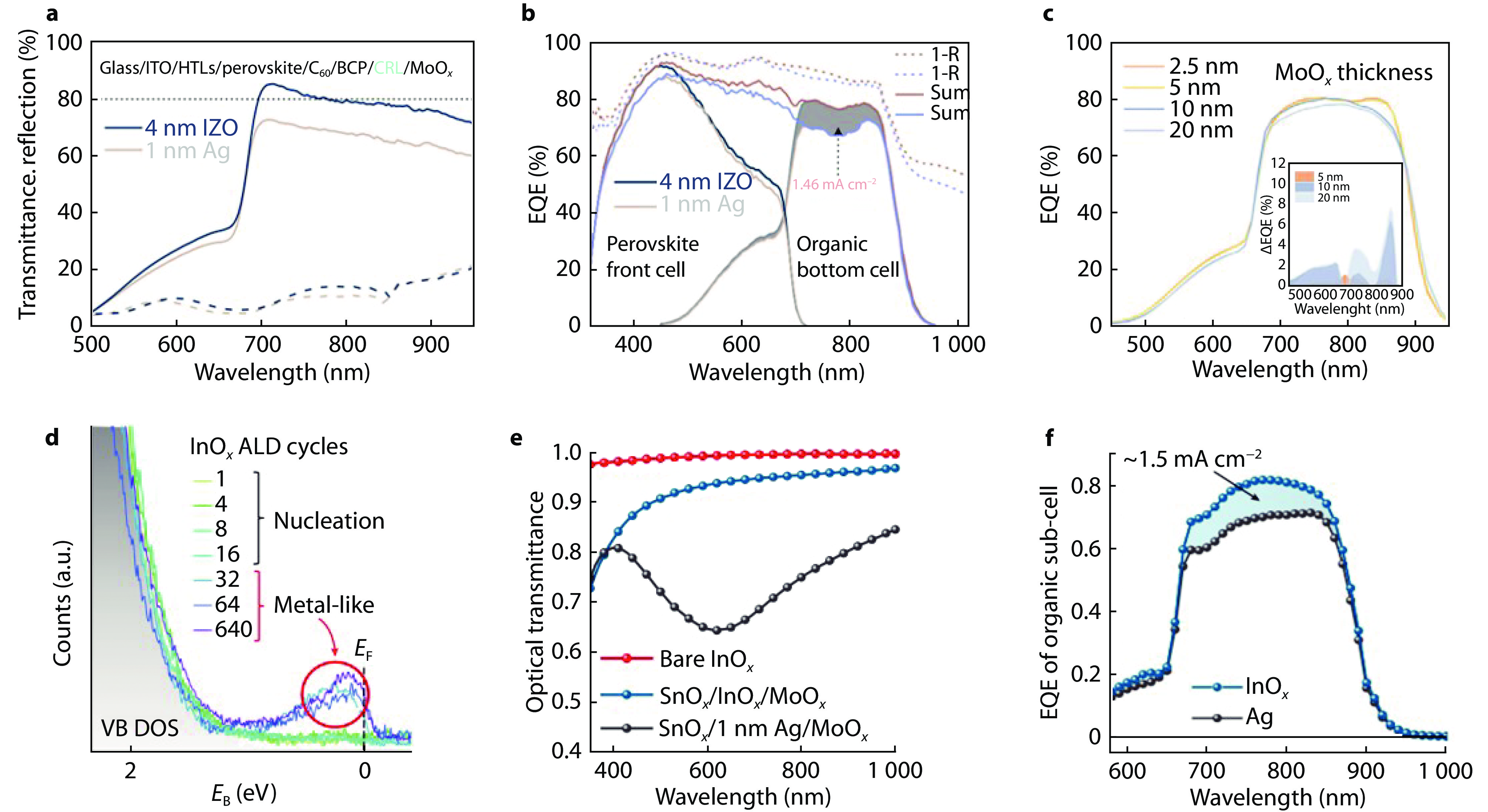

a Transmittance spectra and b EQE spectra of POTSCs with different ICLs.[39] c Filtered EQE spectra related to different thickness of MoOx.[88] d The electrical properties of ALD InOx with increased cycle number. e Transmittance spectra of different ICLs. f Enhanced EQE response enabled by InOx.[89]
-
Figure 6.

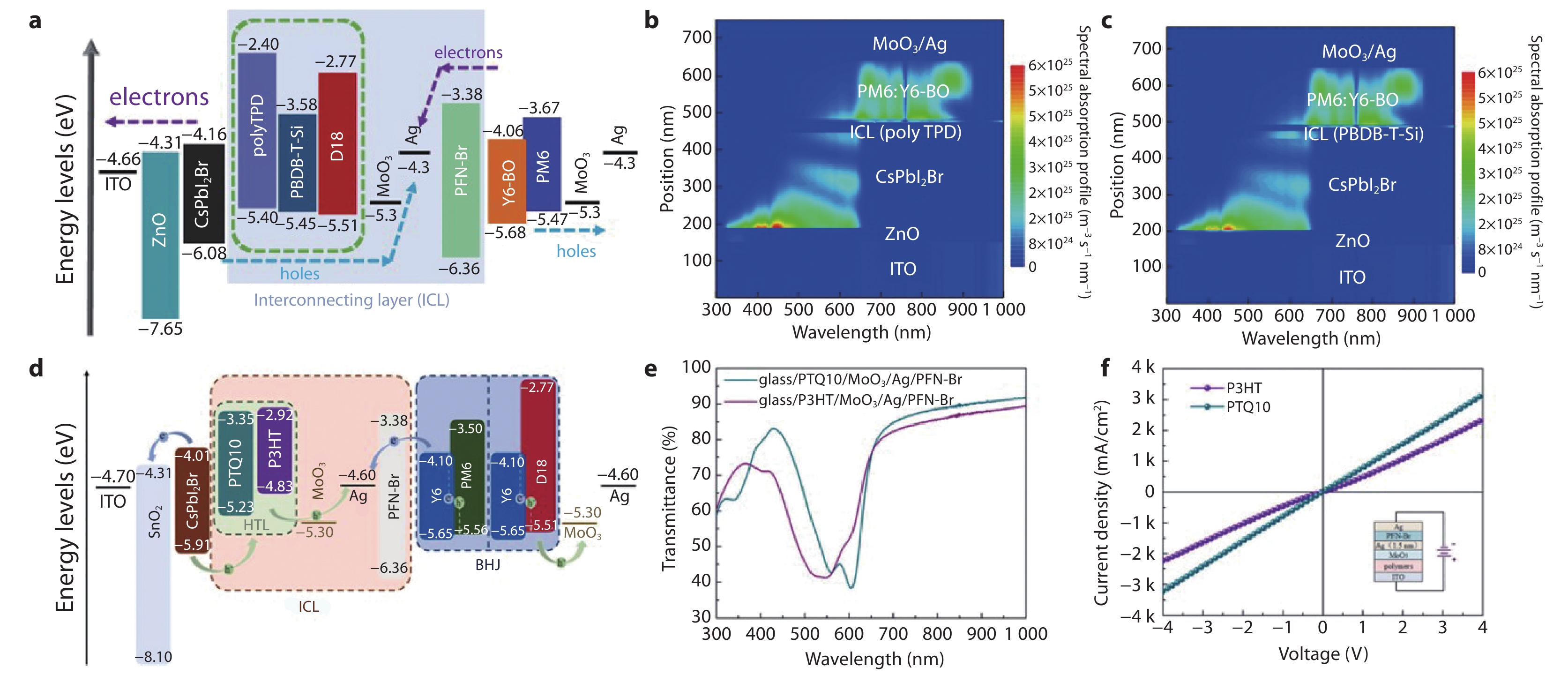

a Energy level of POTSCs with different HTL. Simulated photon absorption rate distribution of b polyTPD and c PBDB-T-Si based TSCs.[90] d Energy level of POTSCs with PTQ10 or P3HT. e Transmittance spectra and f conductivity test of PTQ10 and P3HT.[91]
-
Figure 7.

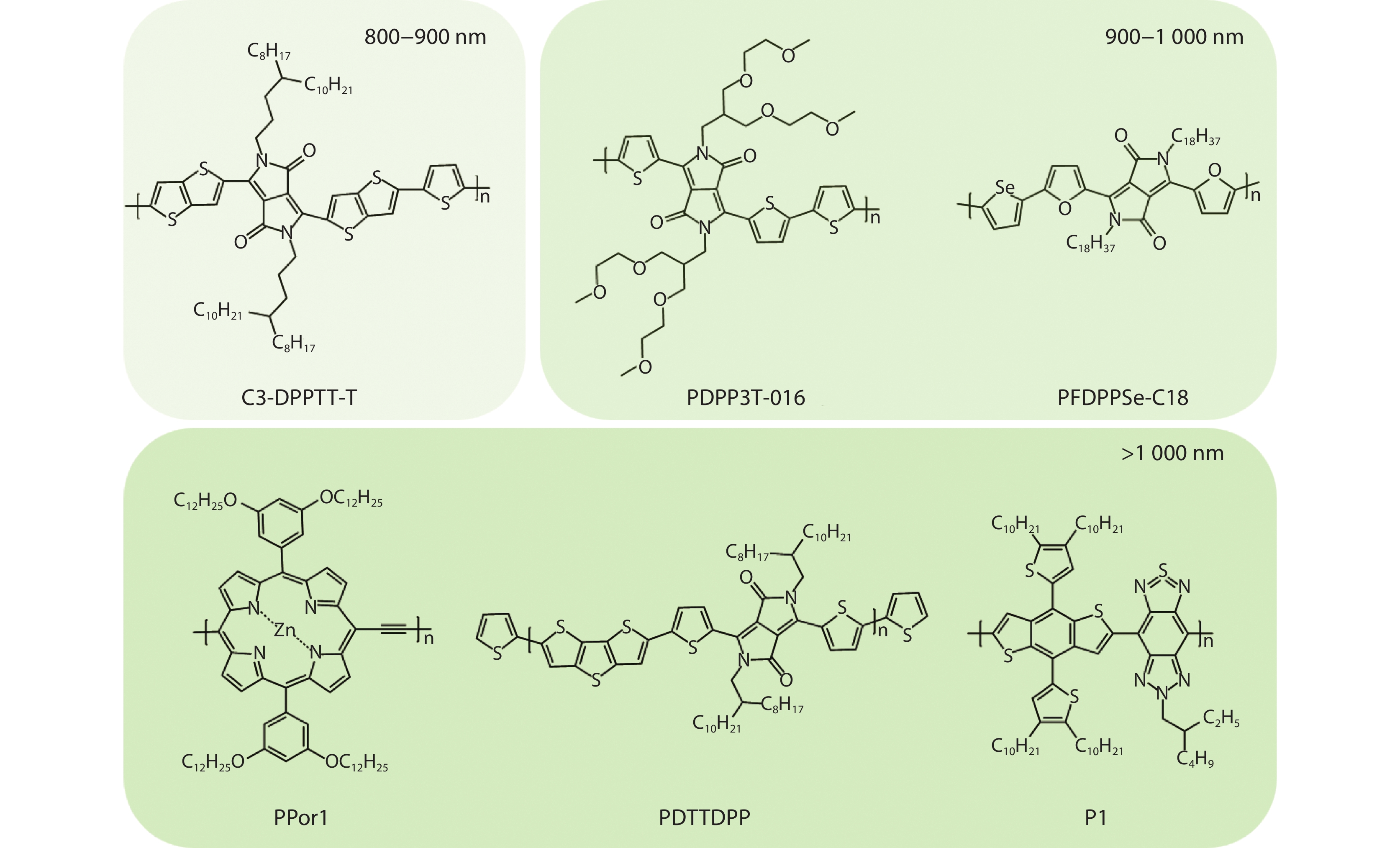

Chemical structures of NIR donors with different absorption window.
-
Figure 8.

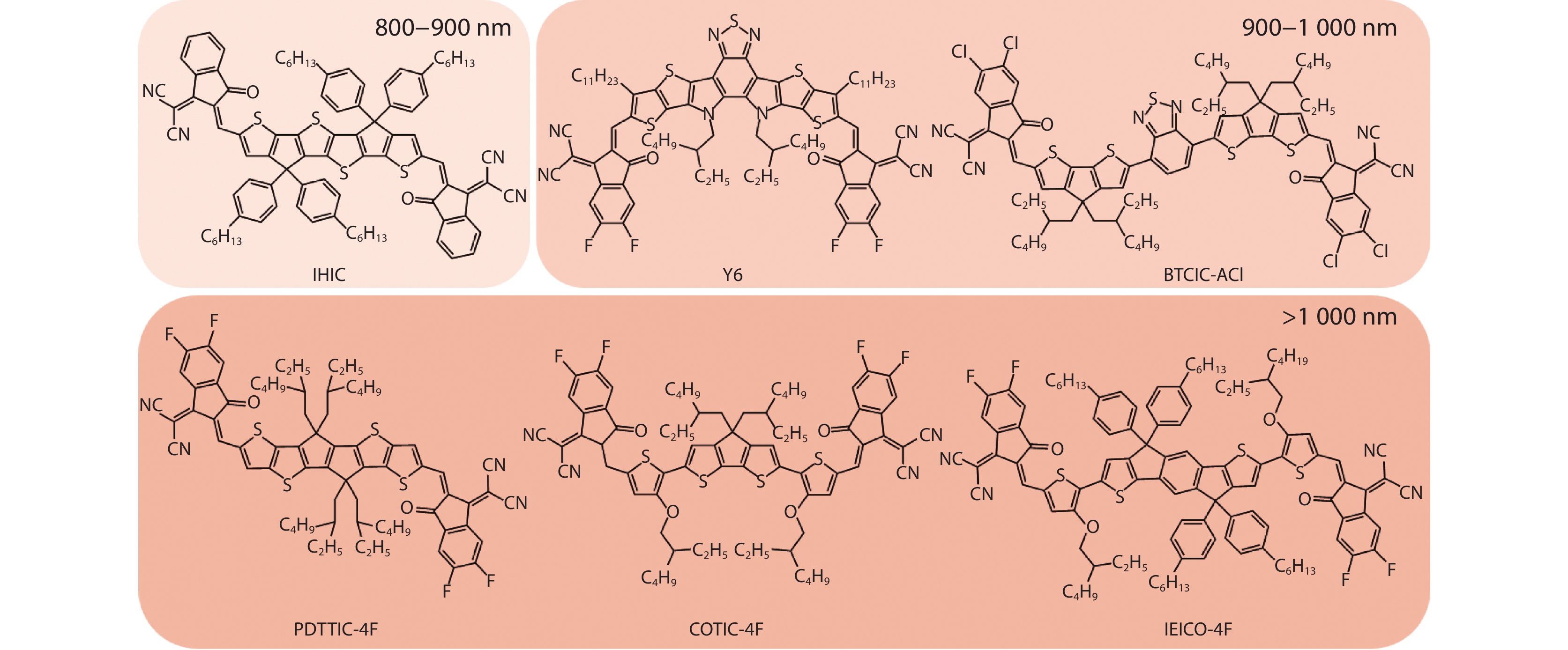

Chemical structures of NIR acceptors with different absorption window.
-
Figure 9.

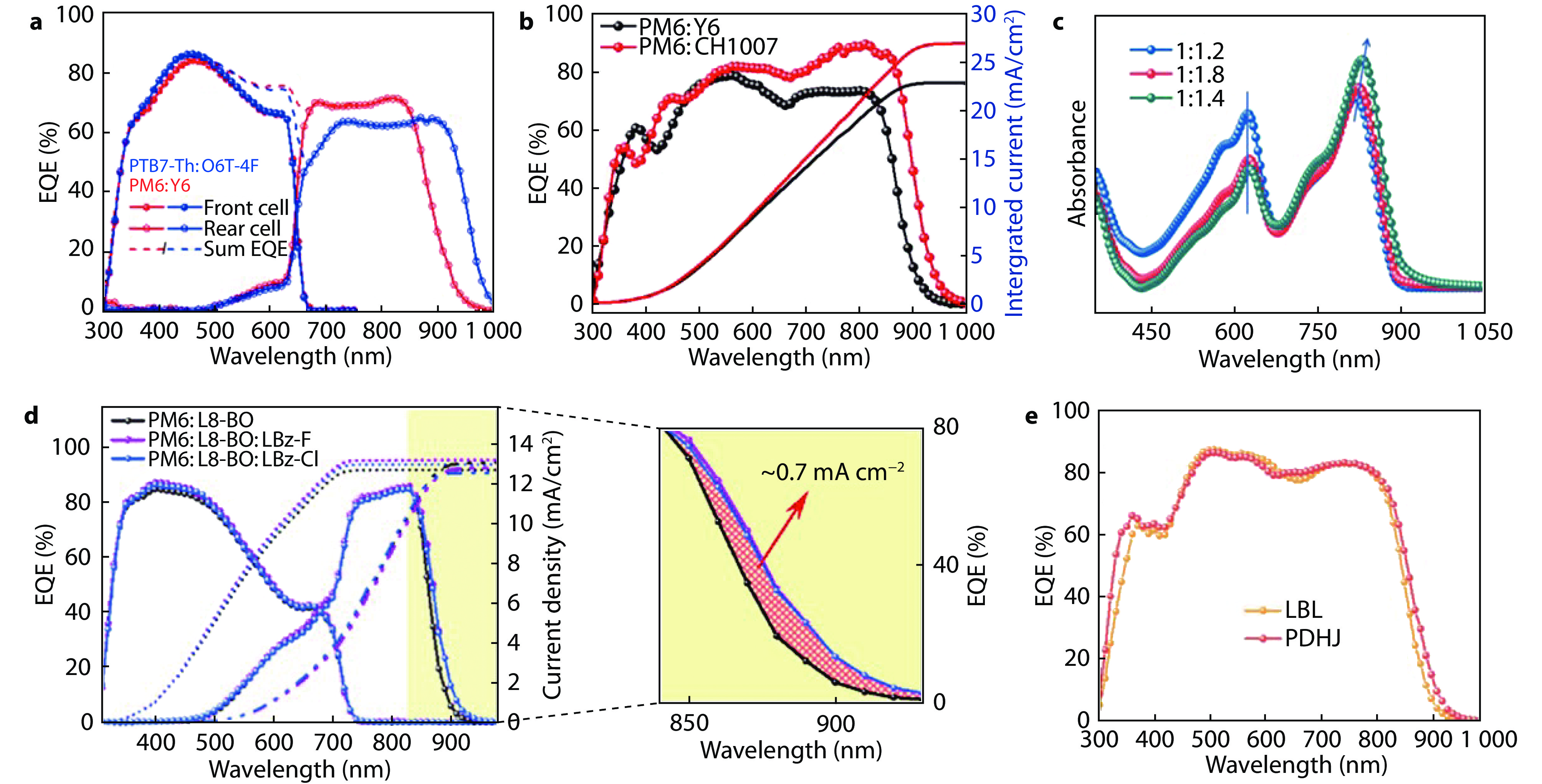

a EQE spectra of POTSCs with different organic active layers.[102] b EQE spectra of OSCs with different acceptors.[103] c Absorption spectra of organic active layer with decreased D/A ratio.[52] d EQE spectra of POTSCs based on binary and ternary organic active layers.[104] e EQE spectra of OSCs with LBL and PDHJ structure.[105]
-
Figure 10.

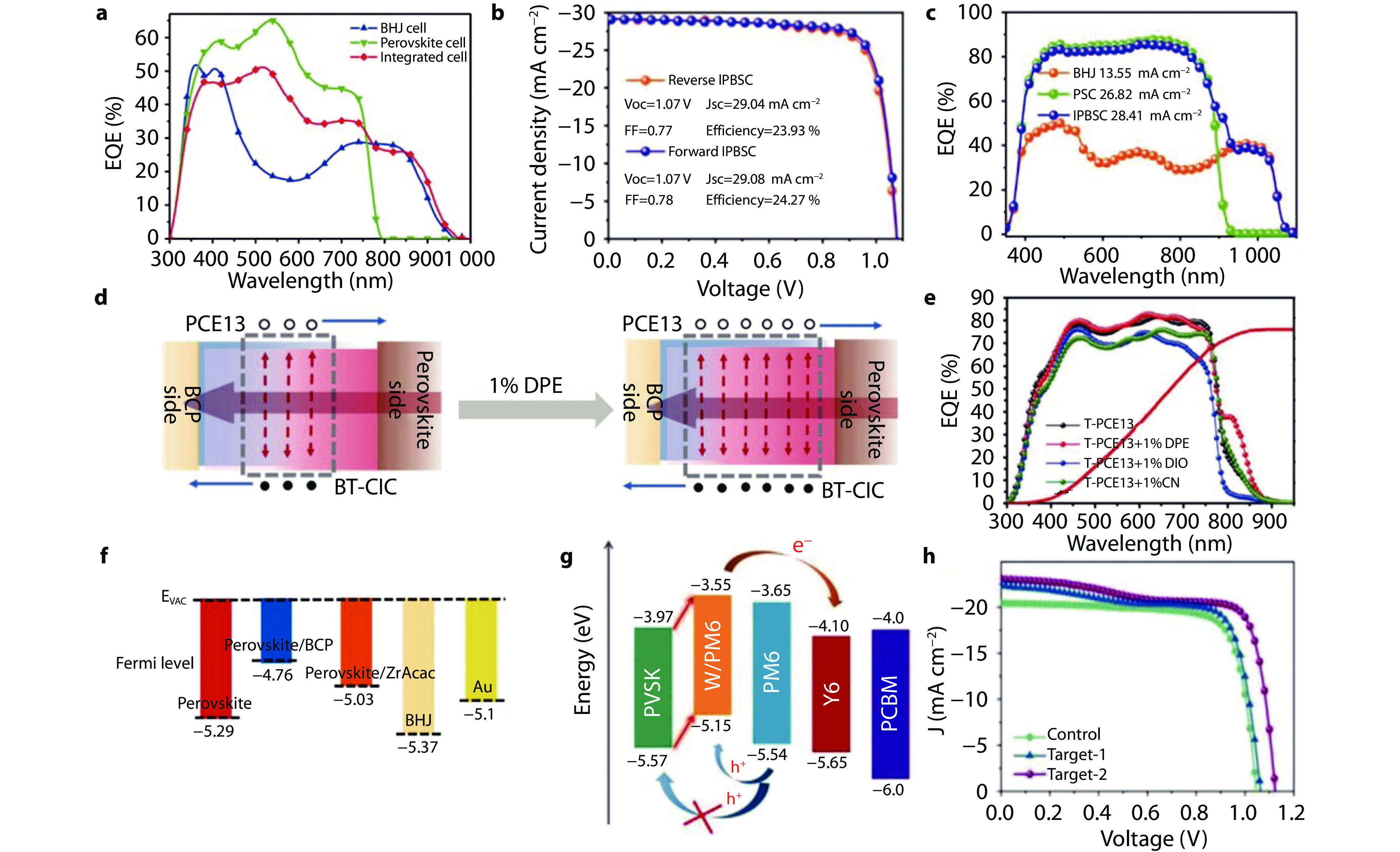

a Extended EQE response in IPOSCs.[106] b J-V curve and c EQE spectra of IPOSCs based on Sn-Pb perovskite sub-cells.[30] d Schematic illustration for the effect of 1% DPE on the carrier properties of BHJ layer. e Enhanced EQE response via doping the active layers.[109] f Energy level of IPOSCs with BCP and ZrAcae interlayers.[113] g Energy level of IPOSCs with a thin PM6 interlayer and h the related J-V curves.[114]
