| Citation: |
Yanan Li, Ruopian Fang, Jiangtao Xu, Da-Wei Wang, Lixue Jiang. Surface reconstruction of CoAl hydroxide electrodes for accelerated oxygen evolution reaction[J]. Energy Lab. doi: 10.54227/elab.20250003
|
Surface reconstruction of CoAl hydroxide electrodes for accelerated oxygen evolution reaction
-
Abstract
Water electrolysis powered by renewable energy is recognized as a sustainable approach for green hydrogen production. Rational design of efficient and low-cost electrocatalysts especially for the sluggish oxygen evolution reaction (OER) remains a significant challenge. Here, we report a two-step surface reconstruction strategy, alkaline etching and anodic activation on CoAl hydroxide electrodes which remarkably enhance the OER performance. A low overpotential of 269 mV at 10 mA cm−2 is achieved in 1 M KOH electrolyte, along with a notably reduced
Tafel slope of 37 mV dec−1, a 16-fold enhanced catalyst intrinsic activity at an overpotential of 300 mV, and excellent stability without noticeable degradation over 50 hours operation. The dynamic surface reconstruction of CoAl hydroxide catalyst is evidenced by physical characterization in the process of alkaline etching and anodic activation. The defective structure and the modulated electronic distribution on the catalyst surface are demonstrated to facilitate electron transfer and OER kinetics. Our work presents a feasible surface reconstruction approach for designing high-efficiency catalytic electrodes in alkaline water electrolysis. -
-
References
1. S. Chu, A. Majumdar, Nature, 2012, 488, 294 2. M. Wang, Z. Wang, X. Gong, Z. Guo, Renew. Sust. Energ. Rev., 2014, 29, 573 3. W. Wang, Y. Liu, S. Chen, Acta Physico-Chimica Sinica, 2024, 40, 2303059 4. J. Ding, D. Zhang, A. Riaz, H. Gu, J. Z. Soo, P. R. Narangari, C. Jagadish, H. H. Tan, S. Karuturi, CCS Chemistry, 2024, 6, 2692 5. N. Wen, X. Jiao, Y. Xia, D. Chen, Mater. Chem. Front., 2023, 7, 4833 6. F. Zeng, C. Mebrahtu, L. Liao, A. K. Beine, R. Palkovits, J. Energy Chem., 2022, 69, 301 7. F. Liu, Z. Fan, Chem. Soc. Rev., 2023, 52, 1723 8. Z. Kou, X. Li, L. Zhang, W. Zang, X. Gao, J. Wang, Small Sci., 2021, 1, 2100011 9. L. Wu, Z. Guan, D. Guo, L. Yang, X. a. Chen, S. Wang, Small, 2023, 19, 2304007 10. L. Gao, X. Cui, C. D. Sewell, J. Li, Z. Lin, Chem. Soc. Rev., 2021, 50, 8428 11. H. Li, L. Zhang, S. Wang, J. Yu, Int. J. Hydrog. Energy, 2019, 44, 28556 12. Q. Xie, Z. Cai, P. Li, D. Zhou, Y. Bi, X. Xiong, E. Hu, Y. Li, Y. Kuang, X. Sun, Nano Res., 2018, 11, 4524 13. H. Jiang, Q. He, X. Li, X. Su, Y. Zhang, S. Chen, S. Zhang, G. Zhang, J. Jiang, Y. Luo, P. M. Ajayan, L. Song, Adv. Mater., 2019, 31, 1805127 14. P. Guo, S. Cao, Y. Wang, X. Lu, Y. Zhang, X. Xin, X. Chi, X. Yu, I. Tojiboyev, H. Salari, A. J. Sobrido, M. Titirici, X. Li, Appl. Catal. B, 2022, 310, 121355 15. G. R. Zhang, L. L. Shen, P. Schmatz, K. Krois, B. J. M. Etzold, J. Energy Chem. , 2020, 49, 153 16. K. Wu, F. Chu, Y. Meng, K. Edalati, Q. Gao, W. Li, H. J. Lin, J. Mater. Chem. A. , 2021, 9, 12152 17. B. Dong, M. -X. Li, X. Shang, Y. N. Zhou, W. H. Hu, Y. M. Chai, J. Mater. Chem. A. , 2022, 10, 17477 18. J. Huang, Y. Li, Y. Zhang, G. Rao, C. Wu, Y. Hu, X. Wang, R. Lu, Y. Li, J. Xiong, Angew. Chem. Int. Ed., 2019, 131, 17619 19. H. Bode, K. Dehmelt, J. Witte, Z. Anorg. Allg. Chem., 1969, 366, 1 20. F. Dionigi, P. Strasser, Adv. Energy Mater., 2016, 6, 1600621 21. B. S. Yeo, A. T. Bell, J. Phys. Chem. C., 2012, 116, 8394 22. S. L. Medway, C. A. Lucas, A. Kowal, R. J. Nichols, D. Johnson, J. Electroanal. Chem., 2006, 587, 172 23. H. Huang, C. Yu, H. Huang, C. Zhao, B. Qiu, X. Yao, S. Li, X. Han, W. Guo, L. Dai, J. Qiu, Nano Energy, 2019, 58, 778 24. Z. Cai, Y. Bi, E. Hu, W. C. Liu, N. S. Dwarica, Y. Tian, X. Li, Y. Kuang, Y. Li, X. Q. Yang, H. Wang, X. Sun, Adv. Energy Mater., 2018, 8, 1701694 25. L. Xu, Q. Jiang, Z. Xiao, X. Li, J. Huo, S. Wang, L. Dai, Angew. Chem. Int. Ed., 2016, 55, 5277 26. R. Zhang, C. Tang, R. Kong, G. Du, A. M. Asiri, L. Chen, X. Sun, Nanoscale, 2017, 9, 4793 27. M. C. Biesinger, L. W. M. Lau, A. R. Gerson, R. S. C. Smart, Phys. Chem. Chem. Phys., 2012, 14, 2434 28. M. C. Biesinger, B. P. Payne, A. P. Grosvenor, L. W. M. Lau, A. R. Gerson, R. S. C. Smart, Appl. Surf. Sci., 2011, 257, 2717 29. B. Payne, M. Biesinger, N. McIntyre, J. Electron. Spectrosc. Relat. Phenom., 2009, 175, 55 30. F. Song, X. Hu, Nat. Commun., 2014, 5, 4477 31. F. Song, X. Hu, J. Am. Chem. Soc., 2014, 136, 16481 32. H. S. Jadhav, A. Roy, B. Z. Desalegan, J. G. Seo, Sustain. Energy Fuels, 2020, 4, 312 33. J. Yang, H. Liu, W. N. Martens, R. L. Frost, J. Phys. Chem. C., 2010, 114, 111 34. F. Nasirpouri, Electrodeposition of Nanostructured Materials, Springer International Publishing AG, Germany, 2017. 35. M. Shao, R. Zhang, Z. Li, M. Wei, D. G. Evans, X. Duan, Chem. Commun., 2015, 51, 15880 36. D. Zhou, P. Li, X. Lin, A. McKinley, Y. Kuang, W. Liu, W. F. Lin, X. Sun, X. Duan, Chem. Soc. Rev. ,, 2021, 50, 8790 37. N. McIntyre, M. Cook, Anal. Chem., 1975, 47, 2208 38. X. Wang, Y. He, Y. Zhou, R. Li, W. Lu, K. Wang, W. Liu, Int. J. Hydrog. Energy, 2022, 47, 23644 39. M. Duraivel, S. Nagappan, K. H. Park, K. Prabakar, Electrochim. Acta, 2022, 411, 140071 40. Y. Han, S. Axnanda, E. J. Crumlin, R. Chang, B. Mao, Z. Hussain, P. N. Ross, Y. Li, Z. Liu, J. Phys. Chem. B, 2018, 122, 666 41. M. Bajdich, M. García-Mota, A. Vojvodic, J. K. Nørskov, A. T. Bell, J. Am. Chem. Soc., 2013, 135, 13521 42. Y. -C. Liu, J. A. Koza, J. A. Switzer, Electrochim. Acta,, 2014, 140, 359 43. T. E. Rosser, J. P. S. Sousa, Y. Ziouani, O. Bondarchuk, D. Y. Petrovykh, X. K. Wei, J. J. L. Humphrey, M. Heggen, Y. V. Kolen'Ko, A. J. Wain, Catal. Sci. Technol. , 2020, 10, 2398 44. A. Sivanantham, P. Ganesan, A. Vinu, S. Shanmugam, ACS Catal., 2020, 10, 463 45. A. Moysiadou, S. Lee, C. S. Hsu, H. M. Chen, X. Hu, J. Am. Chem. Soc. , 2020, 142, 11901 46. N. Weidler, J. Schuch, F. Knaus, P. Stenner, S. Hoch, A. Maljusch, R. Schäfer, B. Kaiser, W. Jaegermann, J. Phys. Chem. C., 2017, 121, 6455 47. D. Delgado, M. Minakshi, D. J. Kim, C. Kyeong W, Anal. Lett. , 2017, 50, 2386 48. C. W. Hu, Y. Yamada, K. Yoshimura, J. Mater. Chem. C, 2016, 4, 5390 49. S. R. Mellsop, A. Gardiner, B. Johannessen, A. T. Marshall, Electrochim. Acta, 2015, 168, 356 50. H. B. Li, P. Liu, Y. Liang, J. Xiao, G. W. Yang, RSC Advances, 2013, 3, 26412 51. Z. Chen, L. Cai, X. Yang, C. Kronawitter, L. Guo, S. Shen, B. E. Koel, ACS Catal., 2018, 8, 1238 52. N. Kornienko, N. Heidary, G. Cibin, E. Reisner, Chem. Sci., 2018, 9, 5322 53. Y. L. Lo, B. J. Hwang, Langmuir, 1998, 14, 944 54. Z. Qiu, C. W. Tai, G. A. Niklasson, T. Edvinsson, Energy Environ. Sci. , 2019, 12, 572 55. D. Tyndall, M. J. Craig, L. Gannon, C. McGuinness, N. McEvoy, A. Roy, M. García-Melchor, M. P. Browne, V. Nicolosi, J. Mater. Chem. A., 2023, 11, 4067 56. J. M. Wagner, X-ray photoelectron spectroscopy, Nova Science Publishers, United States, 2011. 57. X. Bo, Y. Li, R. K. Hocking, C. Zhao, ACS Appl. Mater. Interfaces, 2017, 9, 41239 58. Q. Liang, L. Zhong, C. Du, Y. Luo, J. Zhao, Y. Zheng, J. Xu, J. Ma, C. Liu, S. Li, Q. Yan, ACS Nano, 2019, 13, 7975 59. Y. l. Wang, T. h. Yang, S. Yue, H. b. Zheng, X. p. Liu, P. z. Gao, H. Qin, H. n. Xiao, ACS Appl. Mater. Interfaces, 2023, 15, 11631 60. K. Wan, J. Luo, C. Zhou, T. Zhang, J. Arbiol, X. Lu, B. W. Mao, X. Zhang, J. Fransaer, Adv. Funct. Mater., 2019, 29, 1900315 61. H. -b. Zheng, Y. -l. Wang, P. Zhang, F. Ma, P. -z. Gao, W. -m. Guo, H. Qin, X. -p. Liu, H. -n. Xiao, Chem. Eng. J. , 2021, 426, 130785 62. D. Delgado, F. Bizzotto, A. Zana, M. Arenz, ChemPhysChem, 2019, 20, 3147 63. X. Lu, C. Zhao, Nat. Commun., 2015, 6, 6616 64. Z. Yan, H. Sun, X. Chen, H. Liu, Y. Zhao, H. Li, W. Xie, F. Cheng, J. Chen, Nat. Commun., 2018, 9, 2373 65. Y. Zhang, H. Liu, S. Zhao, C. Xie, Z. Huang, S. Wang, Adv. Mater., 2023, 35, 2209680 66. D. Yan, C. Xia, W. Zhang, Q. Hu, C. He, B. Y. Xia, S. Wang, Adv. Energy Mater., 2022, 12, 2202317 67. L. Peng, N. Yang, Y. Yang, Q. Wang, X. Xie, D. Sun-Waterhouse, L. Shang, T. Zhang, G. I. N. Waterhouse, Angew. Chem. Int. Ed., 2021, 60, 24612 68. M. S. Burke, M. G. Kast, L. Trotochaud, A. M. Smith, S. W. Boettcher, J. Am. Chem. Soc., 2015, 137, 3638 69. D. K. Bediako, C. Costentin, E. C. Jones, D. G. Nocera, J. M. Savéant, J. Am. Chem. Soc., 2013, 135, 10492 -
Rights and permissions
This is an open access article under the terms of the Creative Commons Attribution License, which permits use, distribution and reproduction in any medium, provided the original work is properly cited.
Figures(5)
Information
Article Metrics
Export File
Citation
Yanan Li, Ruopian Fang, Jiangtao Xu, Da-Wei Wang, Lixue Jiang. Surface reconstruction of CoAl hydroxide electrodes for accelerated oxygen evolution reaction[J]. Energy Lab. doi: 10.54227/elab.20250003
Format
Content
DownLoad:
-

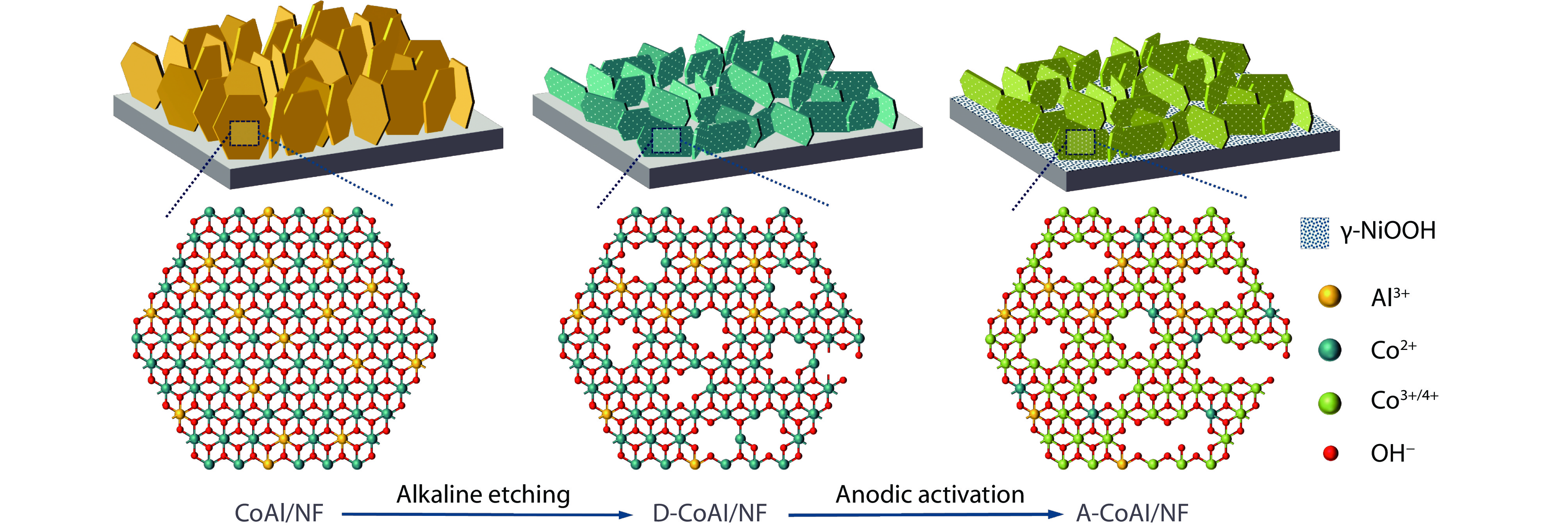

Figure 1.
Schematic illustrations of the synthesis of A-CoAl/NF.
-

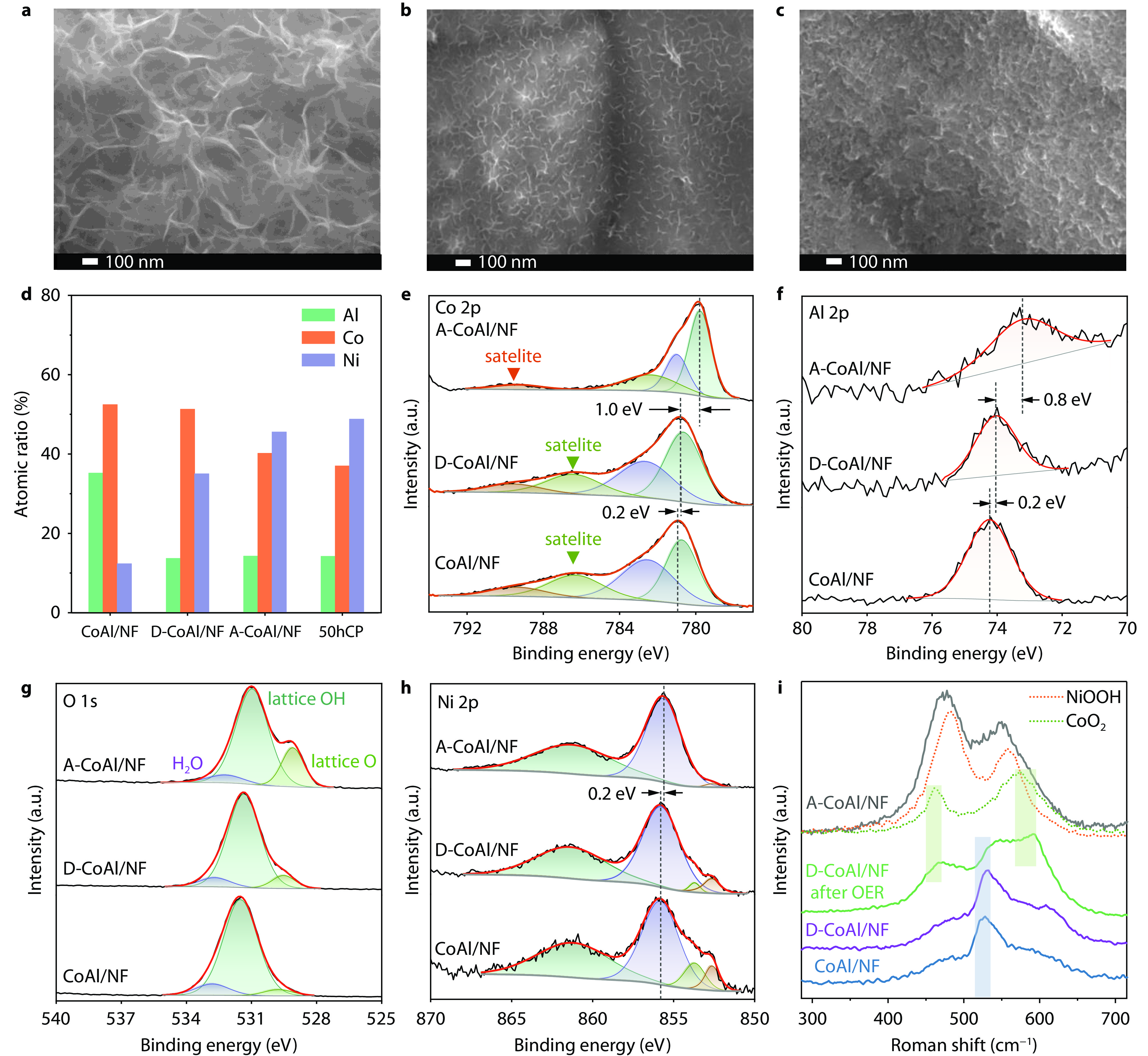

Figure 2.
Characterization analysis of CoAl/NF, D-CoAl/NF and A-CoAl/NF. SEM images of a CoAl/NF, b D-CoAl/NF, c A-CoAl/NF. d Co, Ni, Al atomic ratio (Co at% + Ni at% + Al at% = 100%). High-resolution XPS of CoAl/NF, D-CoAl/NF and A-CoAl/NF e Co 2p, f Al 2p, g O 1s, h Ni 2p. i Ex situ Raman spectra.
-

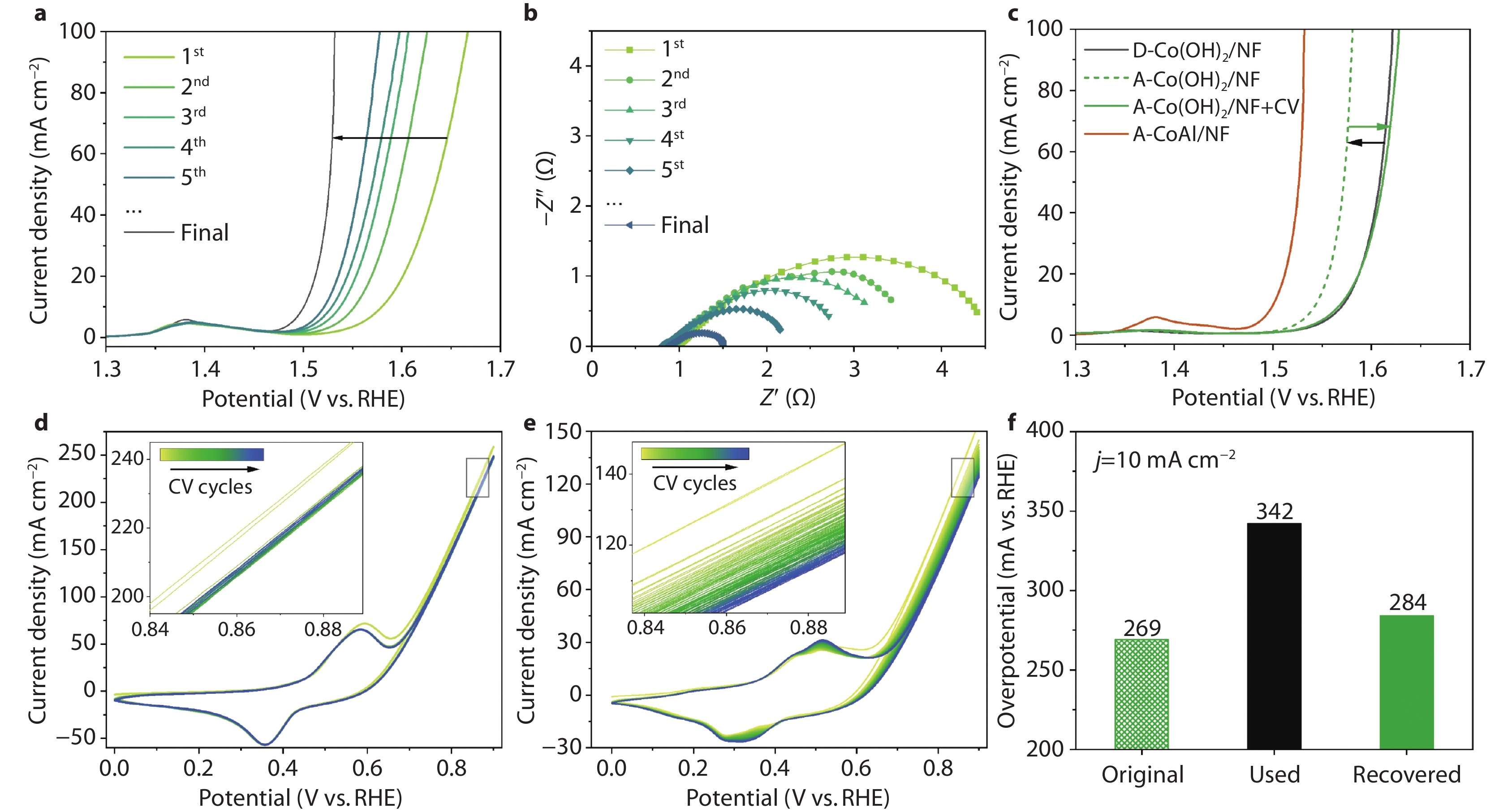

Figure 3.
Mechanism analysis of anodic activation processes. a The evolution of polarization curves during anodic activation process. b The corresponding Nyquist plots with the LSV polarization curves in a. c Polarization curves of A-Co(OH)2/NF before and after CVs. CV curves and its zoom-in image of d A-CoAl/NF and e A-Co(OH)2/NF. f The overpotential of original, used and recovered A-CoAl/NF.
-

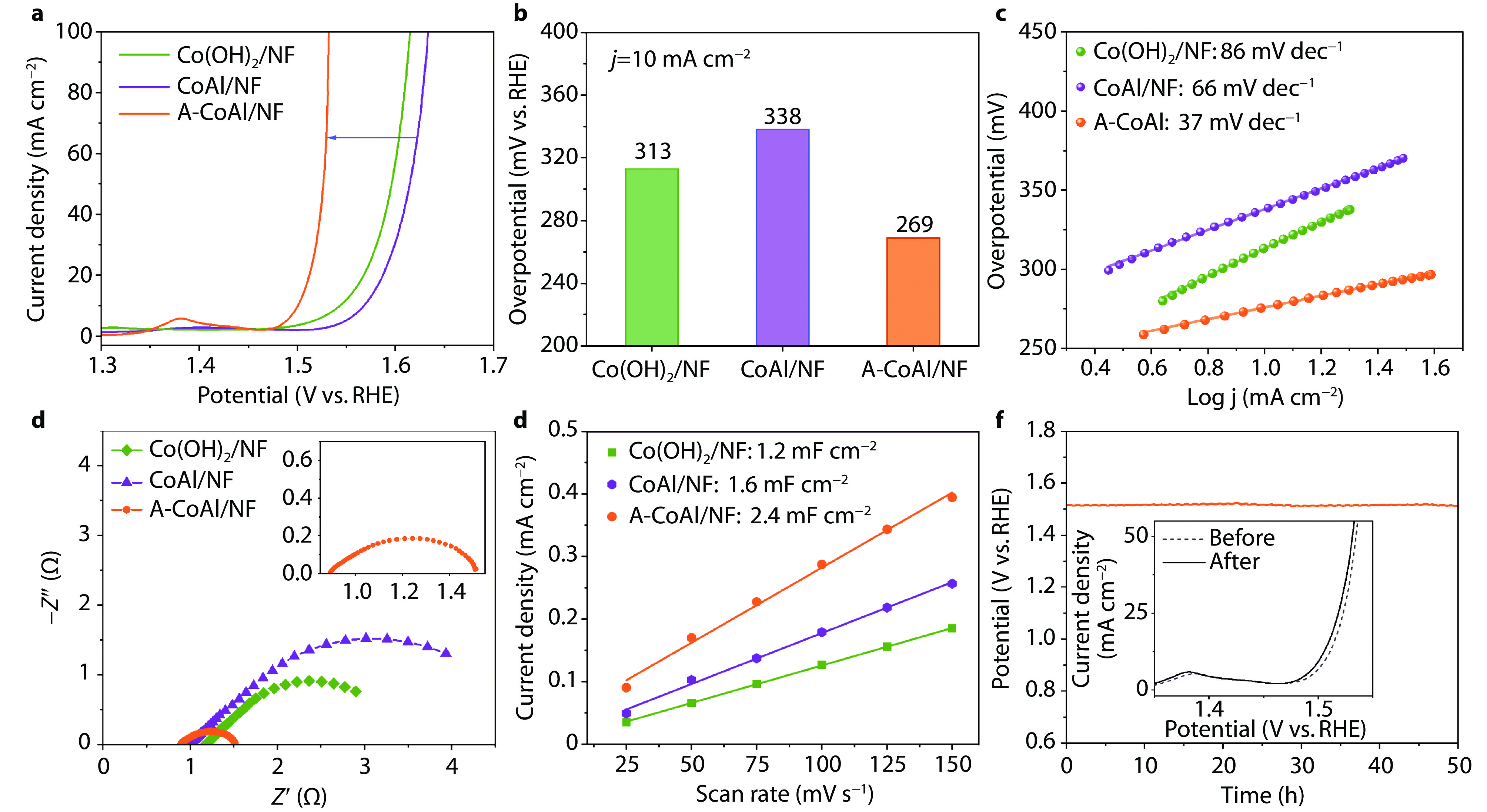

Figure 4.
Electrocatalytic OER performance of A-CoAl/NF and reference samples. a Polarization curves of A-CoAl/NF in 1 M KOH, with that of Co(OH)2/NF, and CoAl/NF for comparison. b Comparison of overpotentials required for current density j = 10 mA. c The corresponding Tafel plots. d The corresponding Nyquist plots. e The corresponding double-layer capacitance measurements (Cdl values). f Chronopotentiometry curves of A-CoAl/NF at constant current densities of 10 mA cm−2, inset: OER performance before and after 50h CP test.
